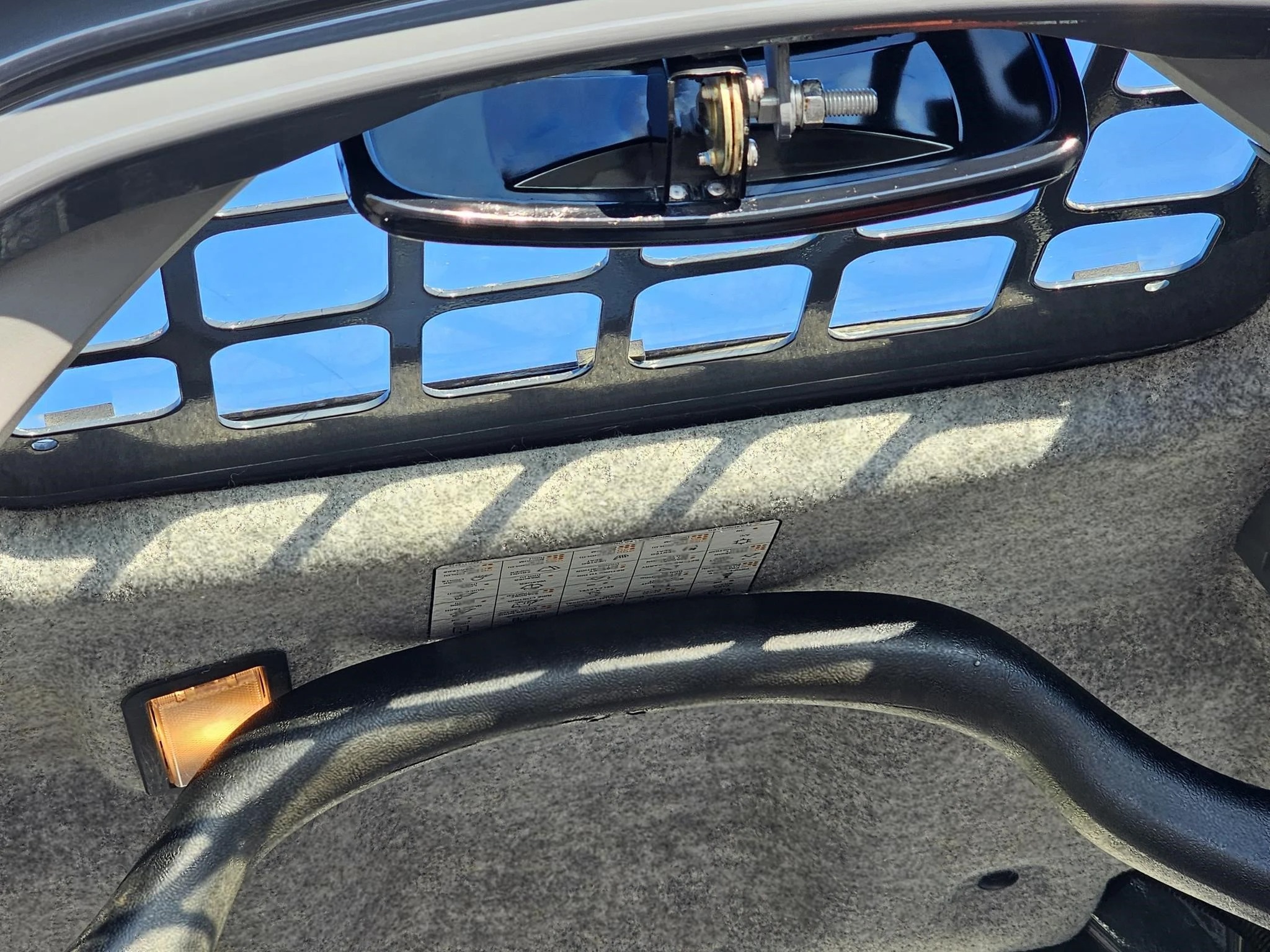

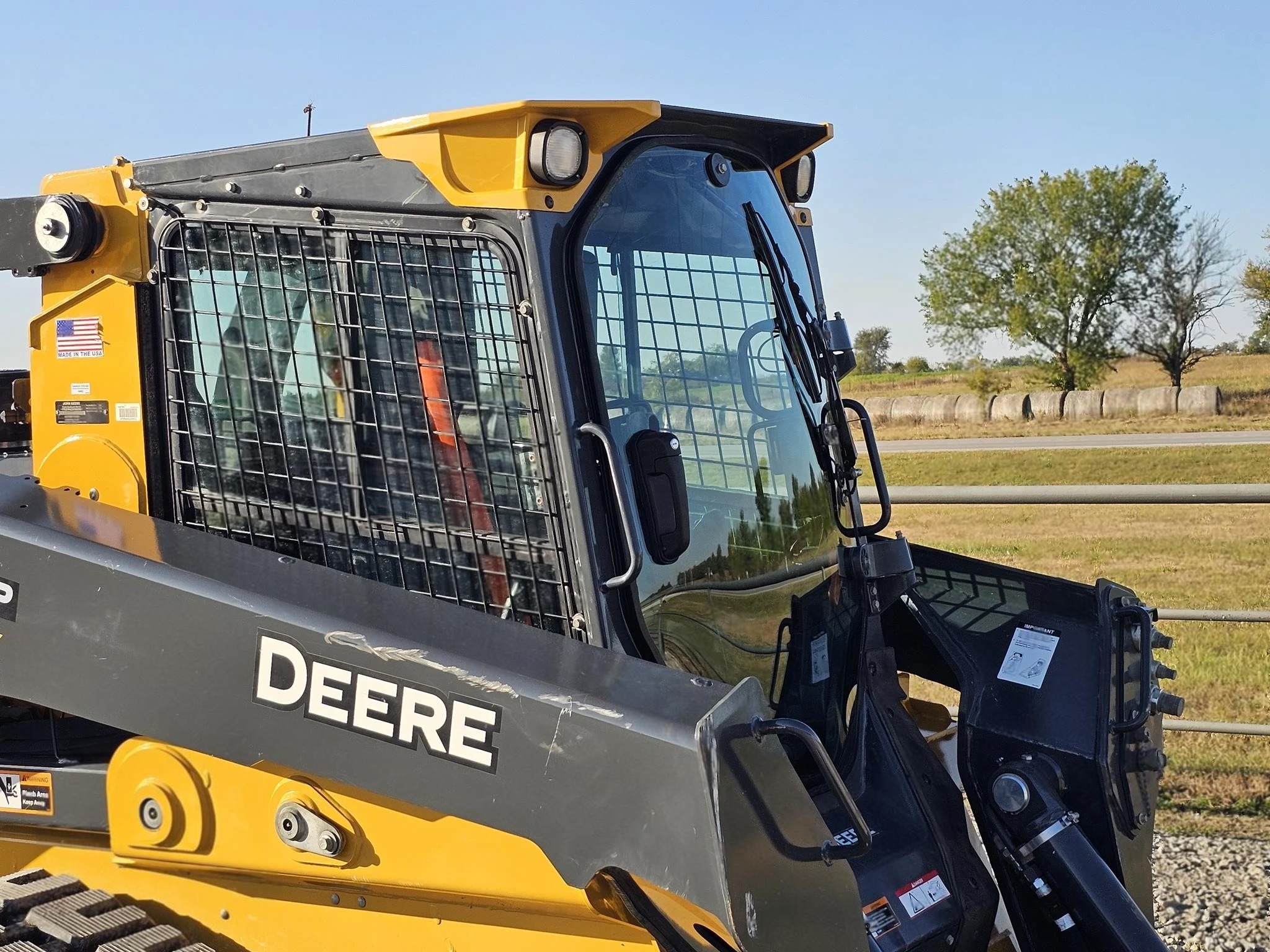

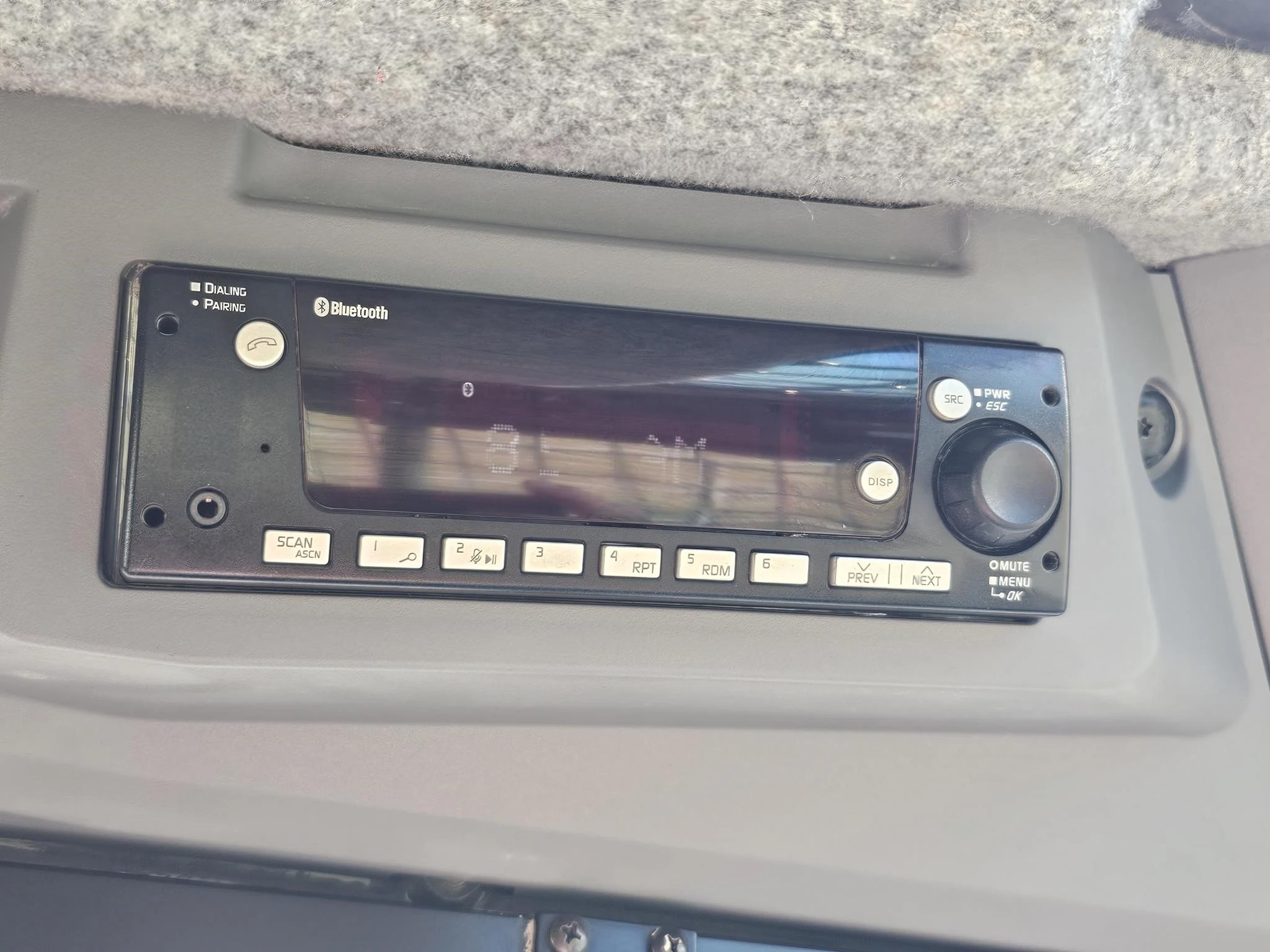

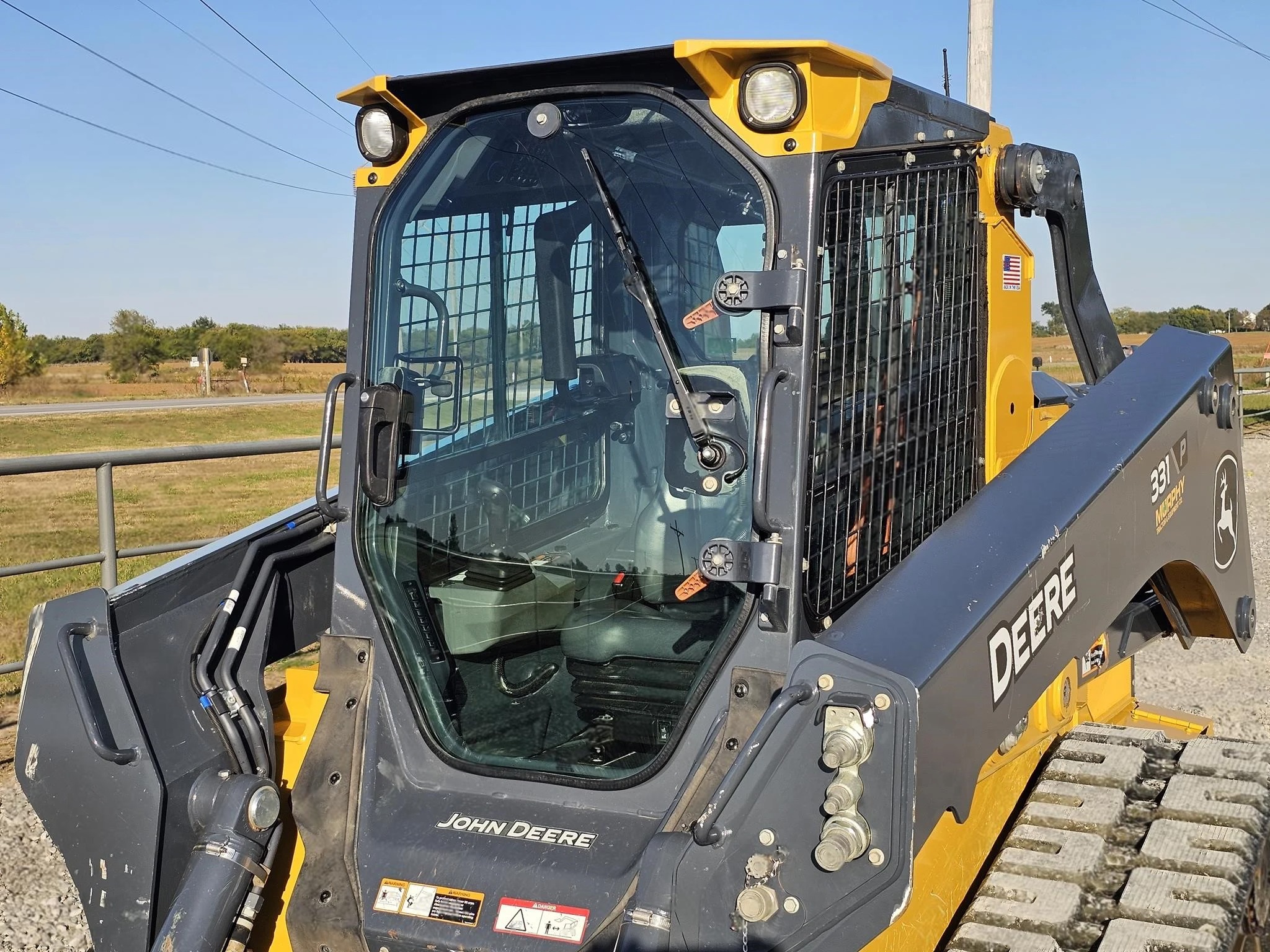

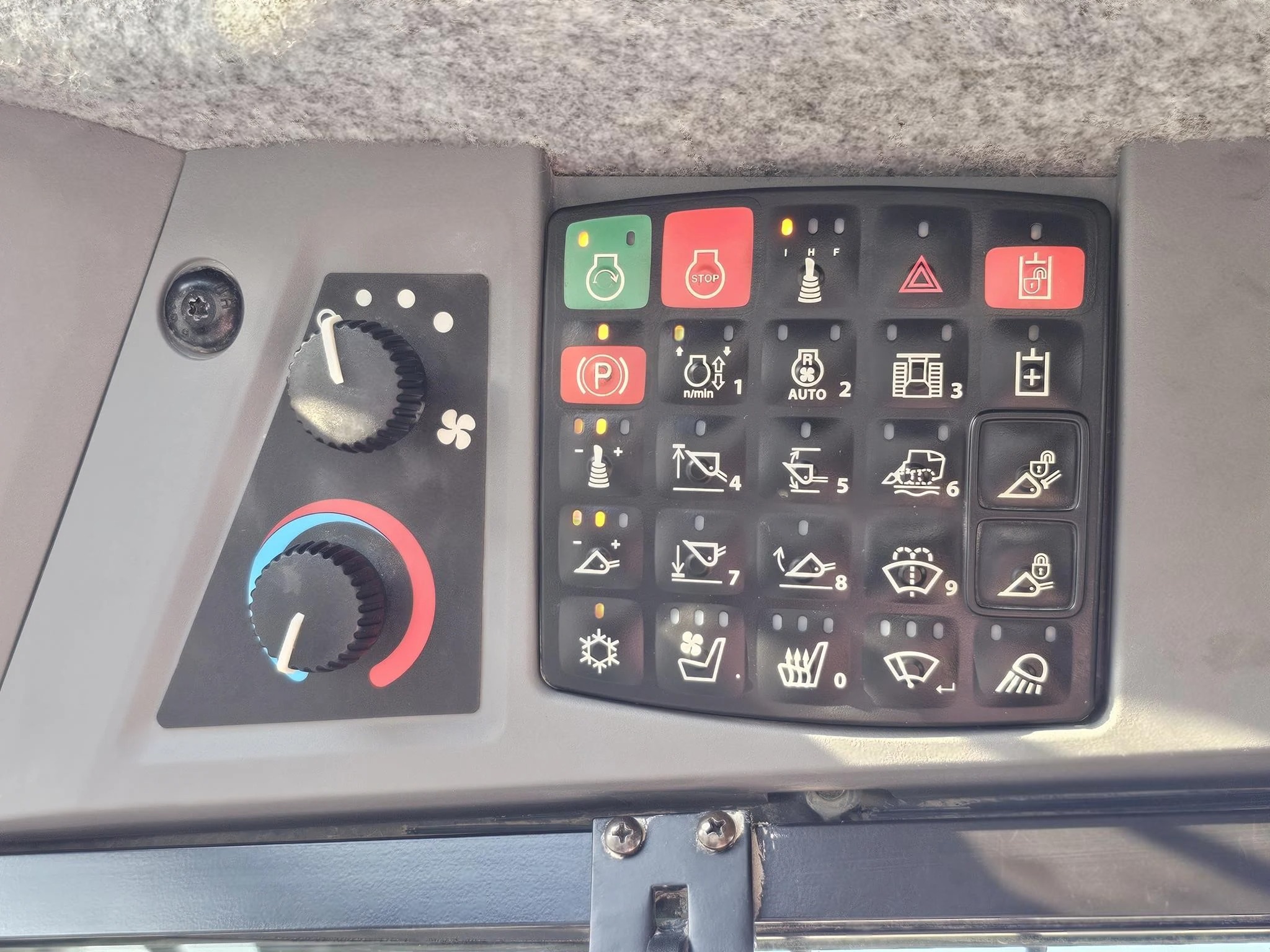

Cab with heat/AC and radio
2 speed

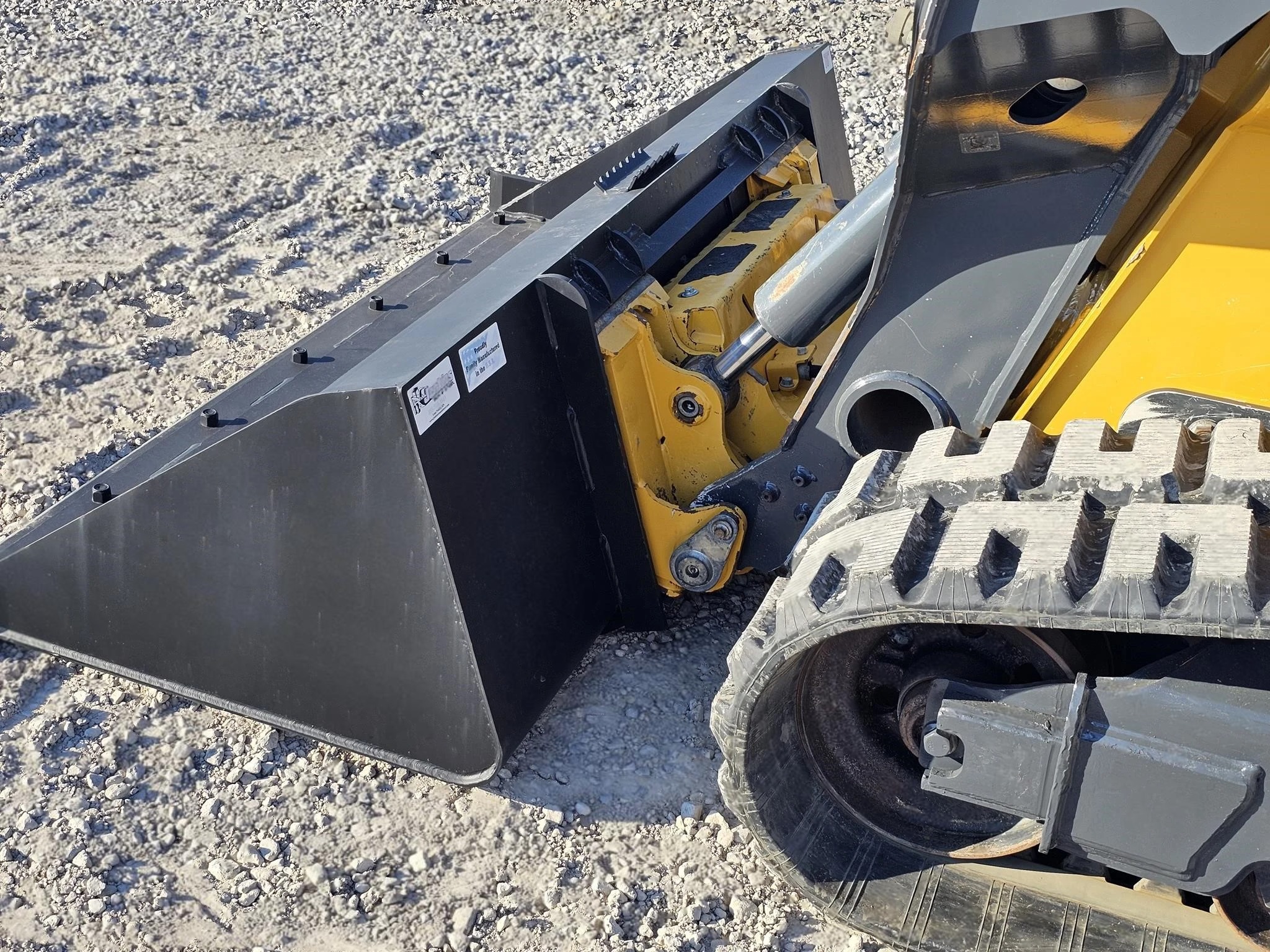

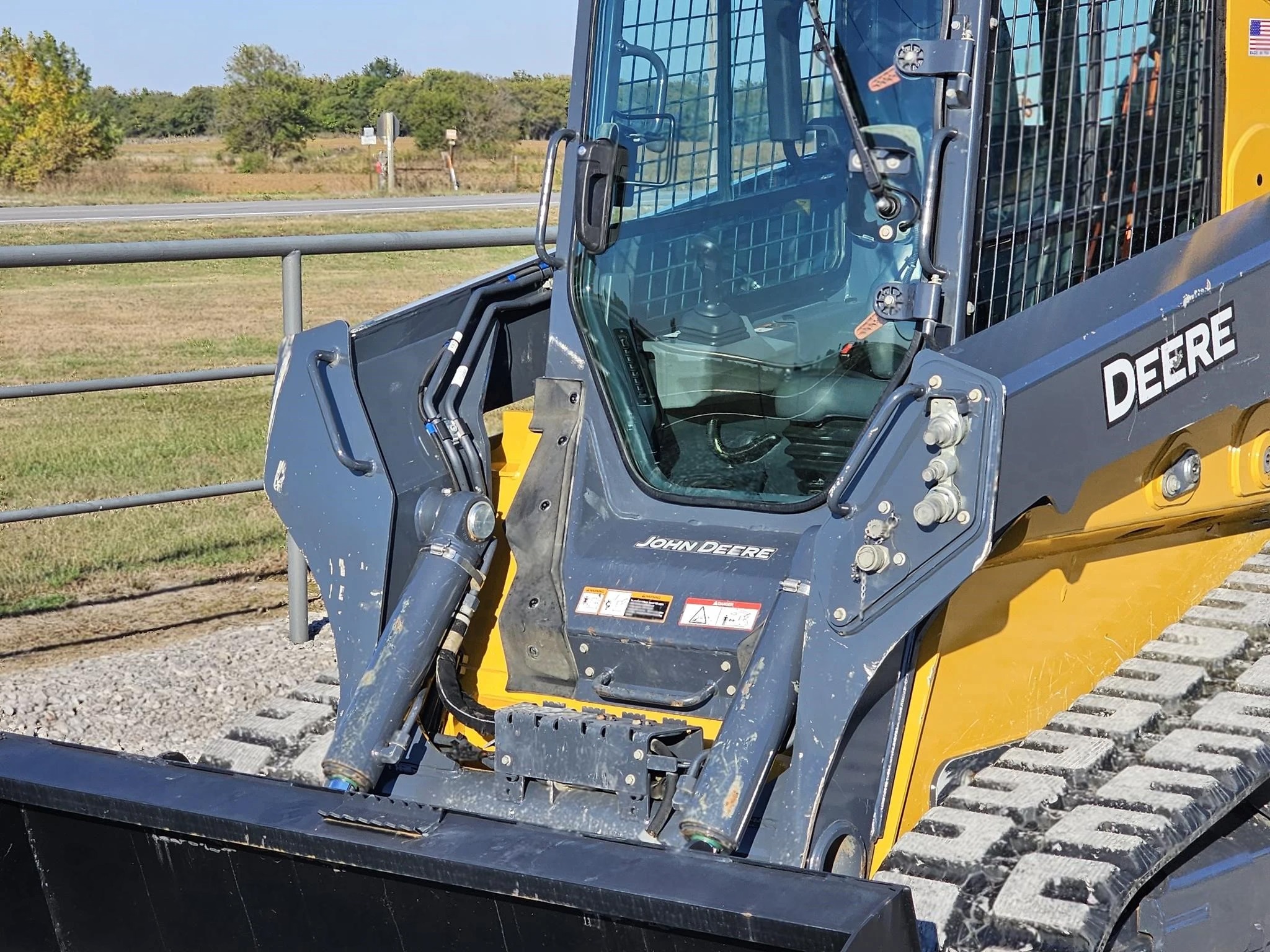

Power quick attach

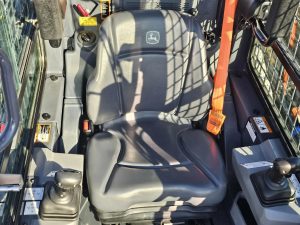

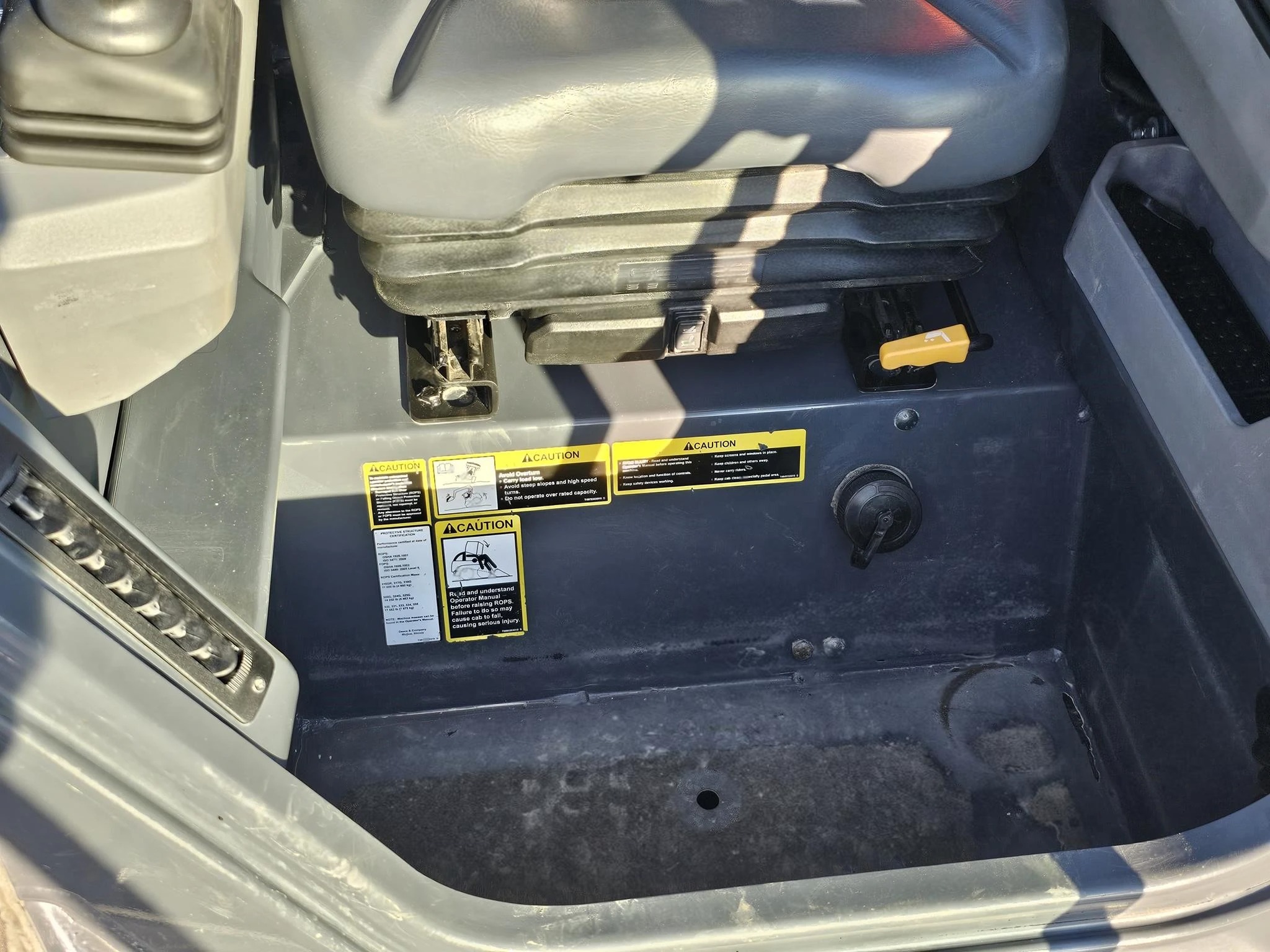

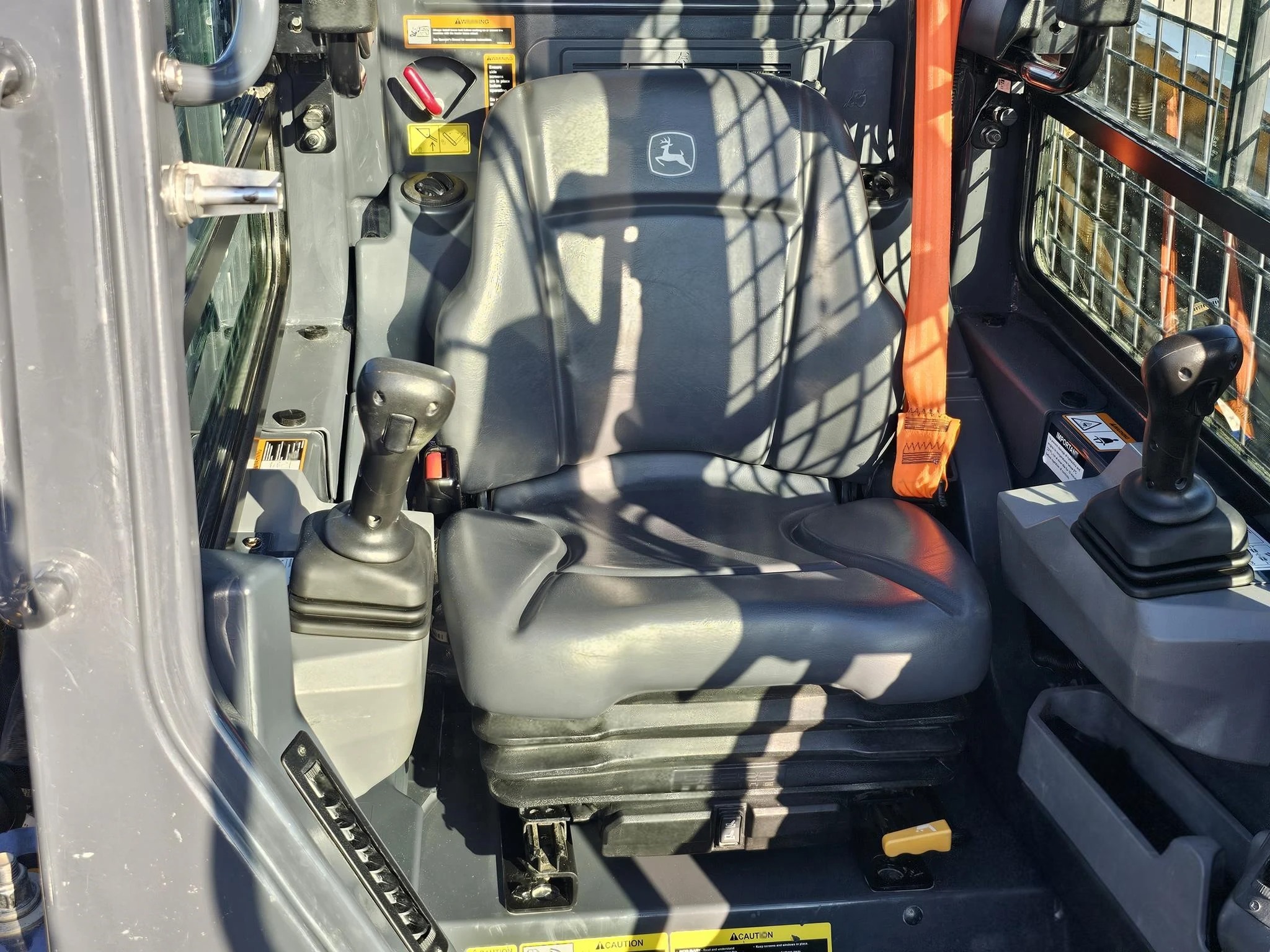

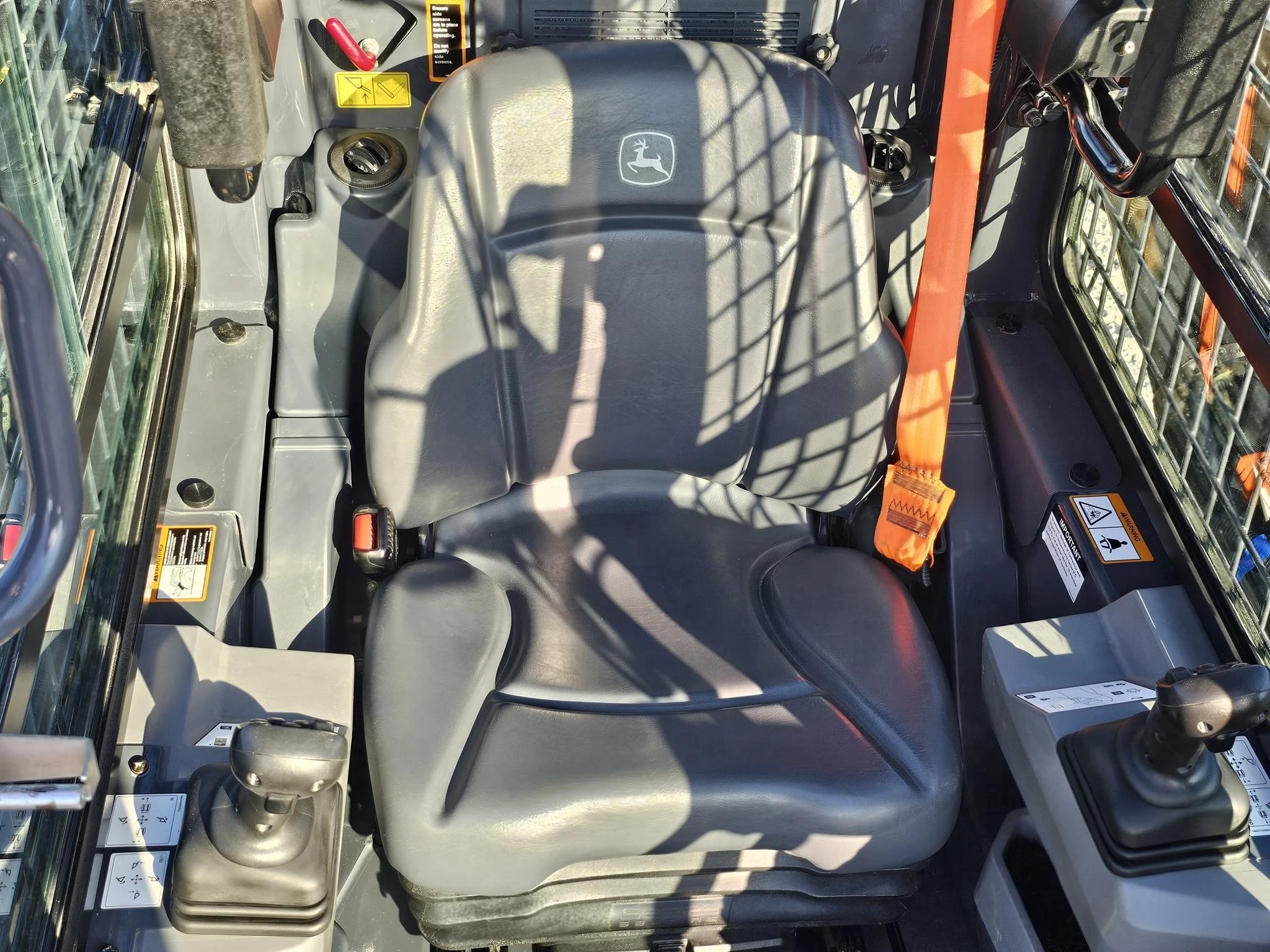

Air ride seat

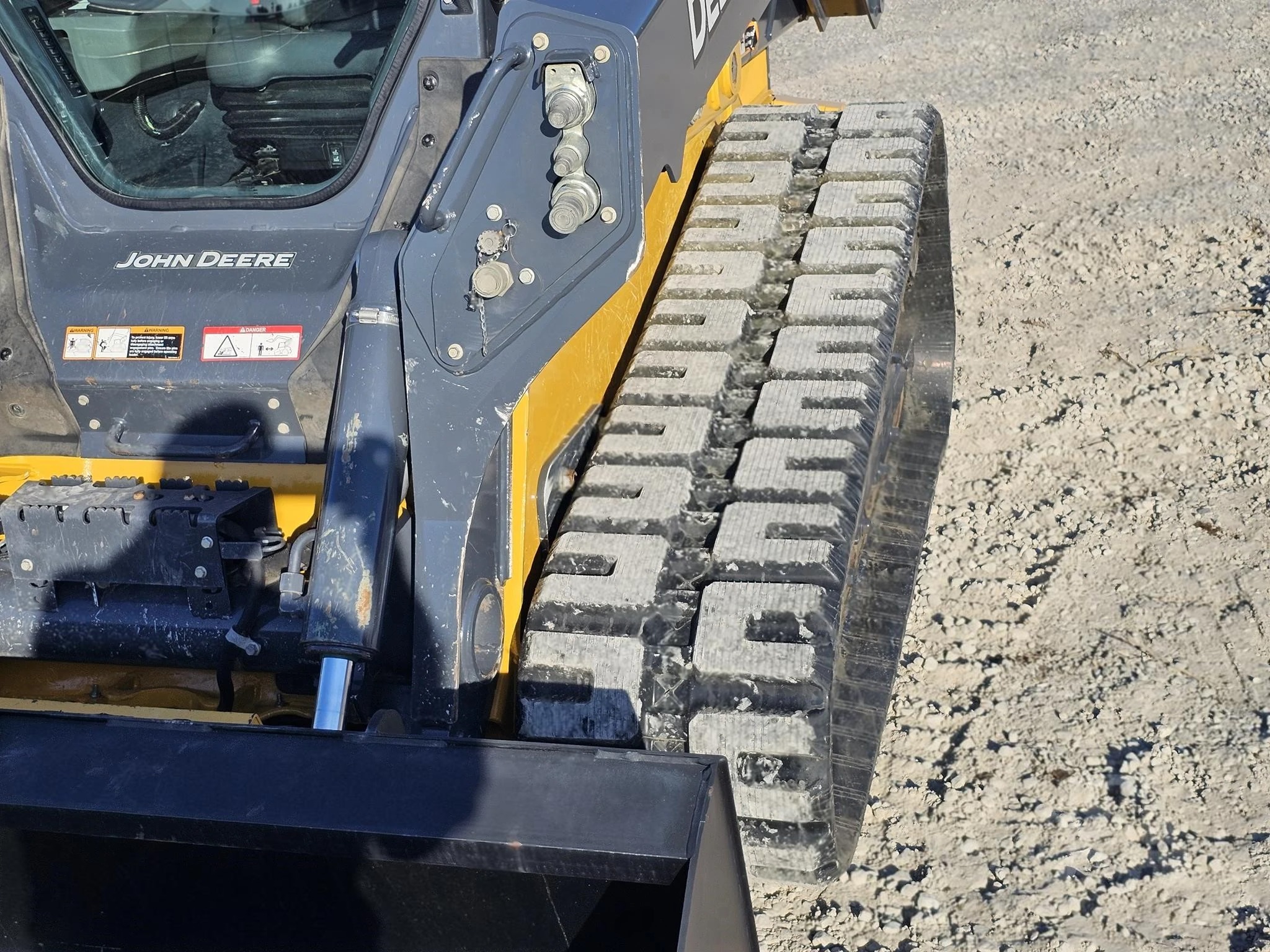

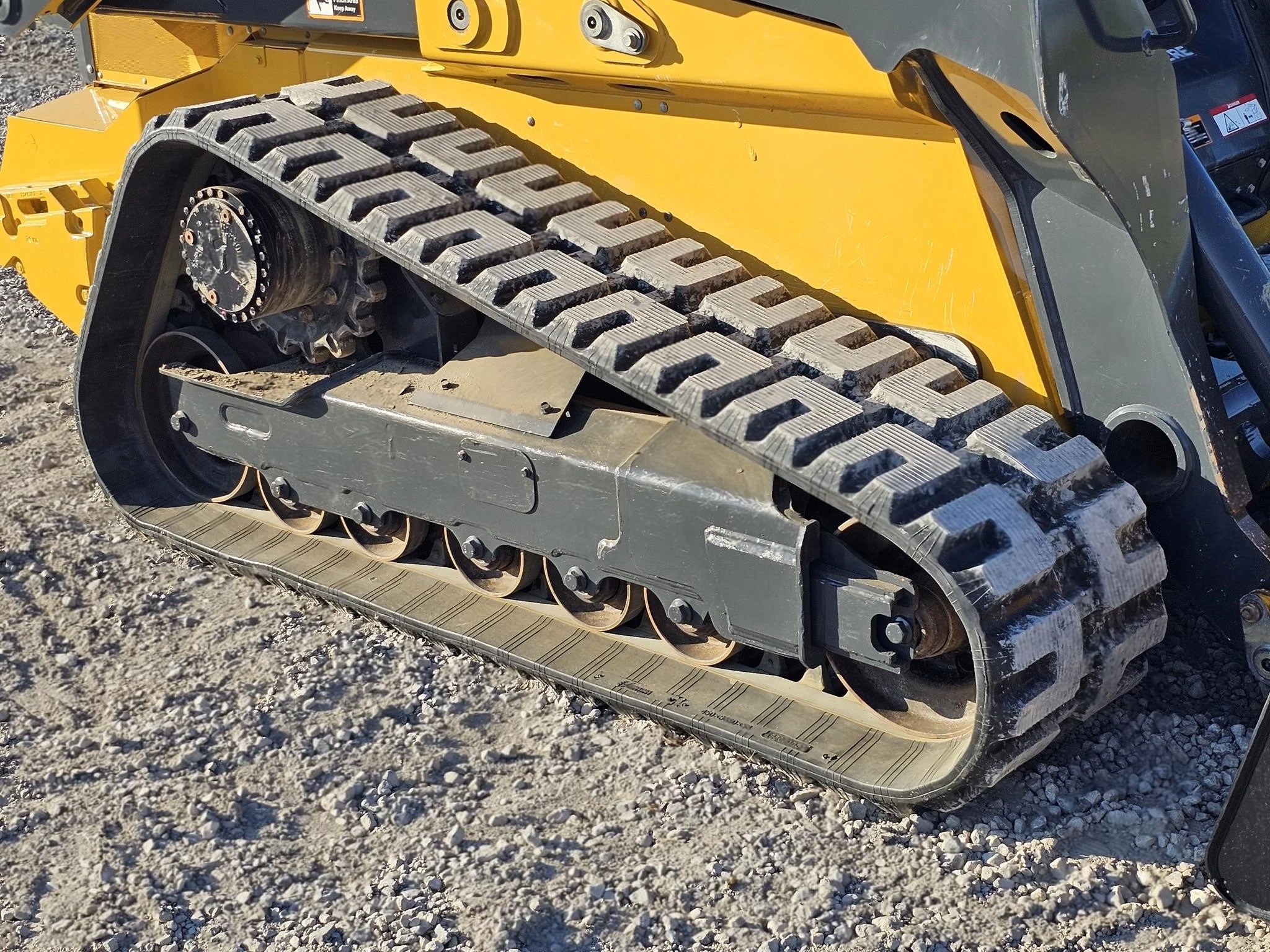

Brand new tracks

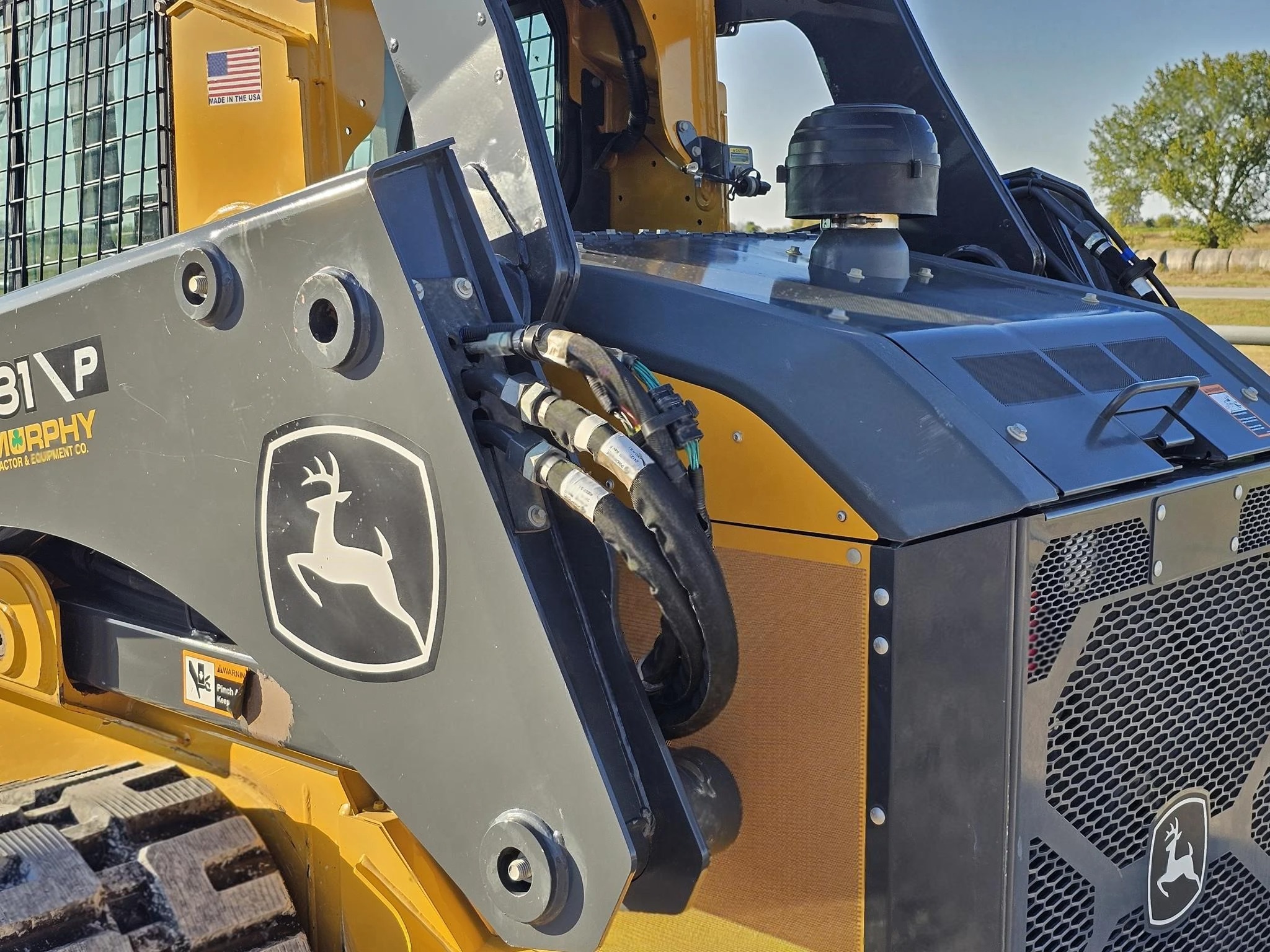

High flow hydraulics

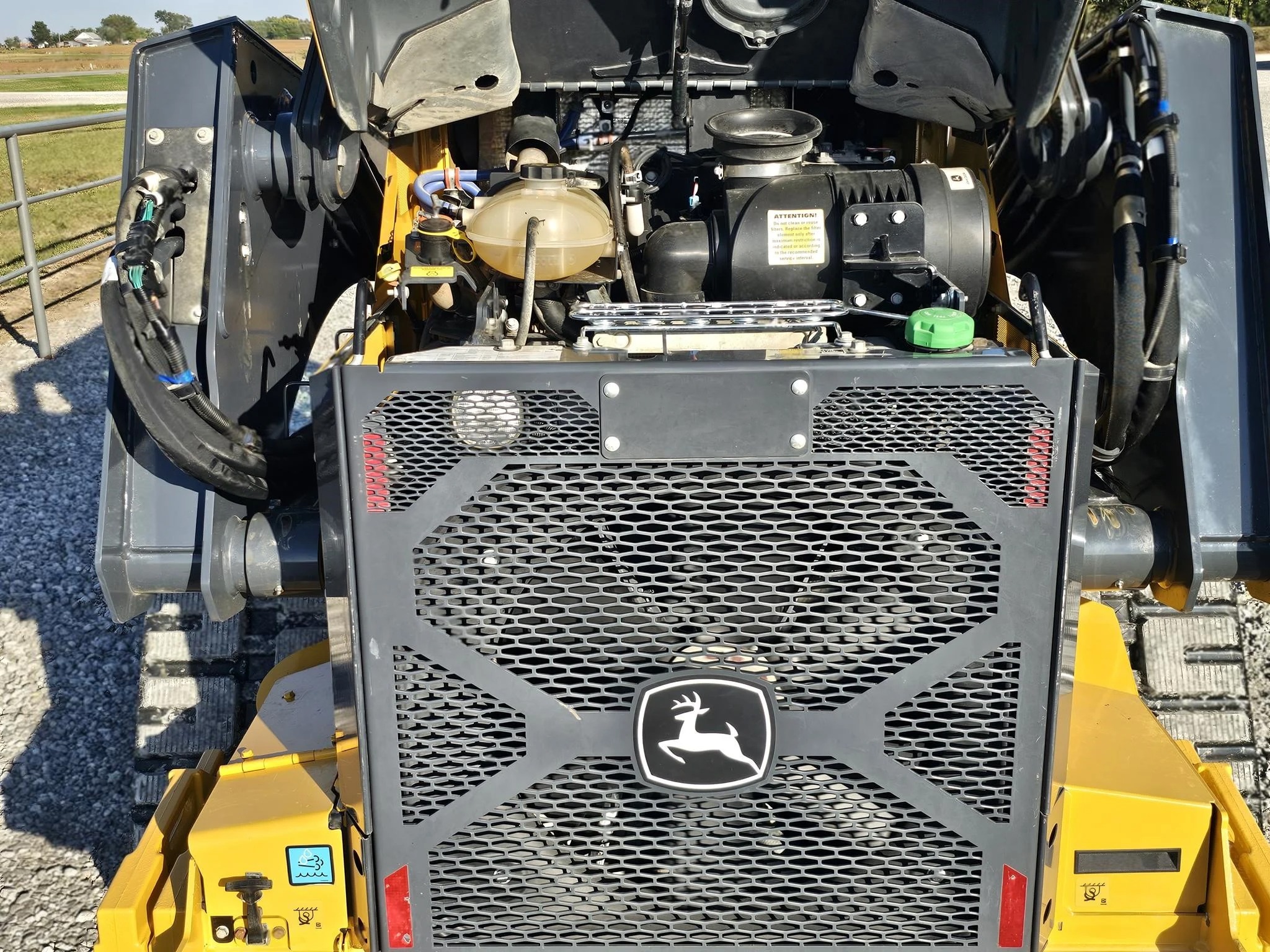

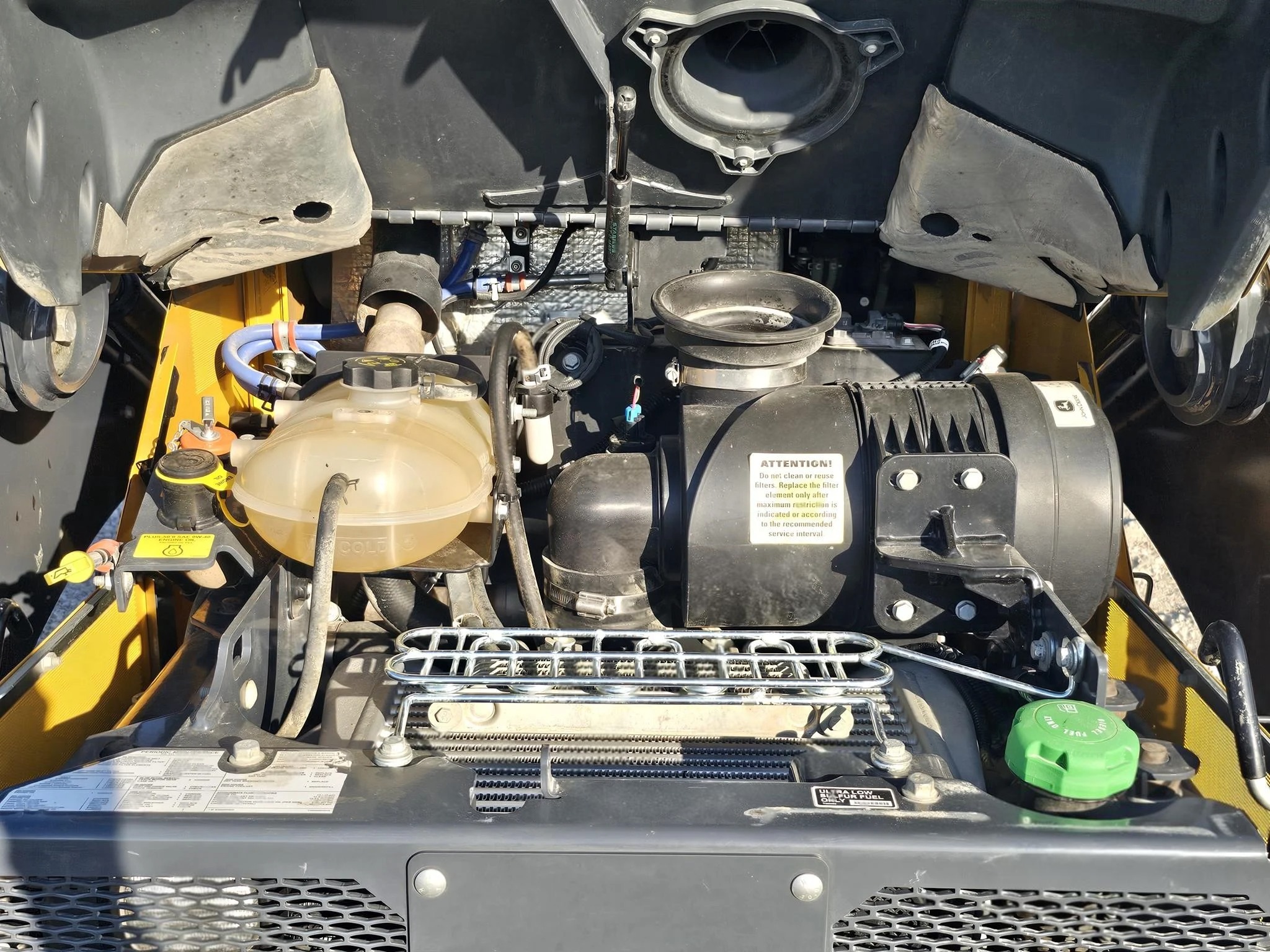

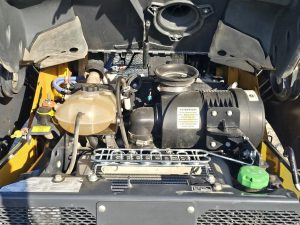

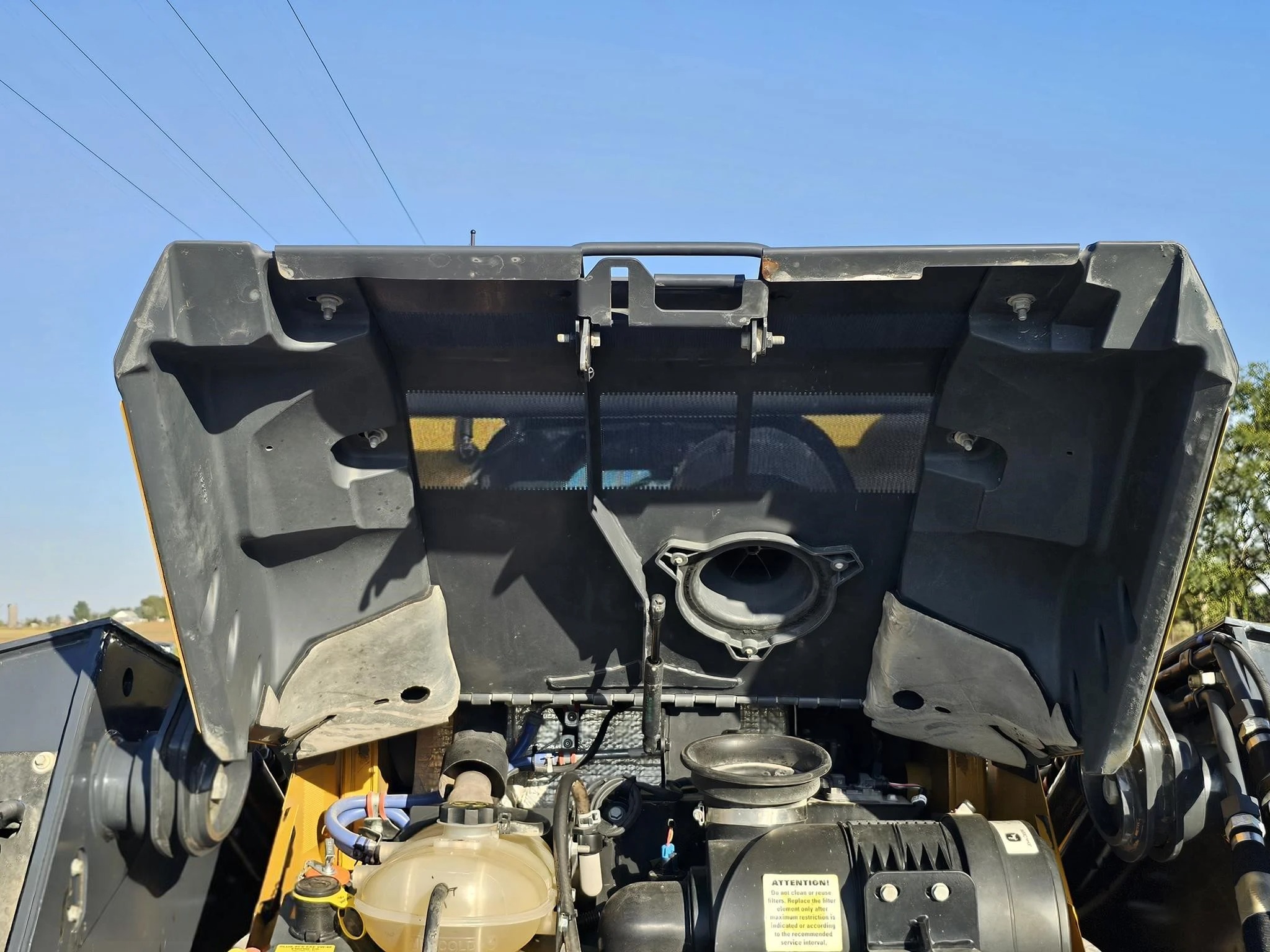

ENGINE

Manufacturer and Model Yanmar 4TNV94FHT
Non-Road Emission Standard EPA Final Tier 4
Net power at 2500 rpm – 94.96 hp
Peak Torque 281.75 ft.-lb.) at 1,700 rpm
Displacement 186.33 cu.in.
Torque Rise 47% at 1,700 rpm
Aspiration Turbocharged, intercooled
Air Cleaner Dry dual element

POWERTRAIN

Pump type Axial-piston hydrostatic
Controls Electrohydraulic
Travel Speeds
2 Speed, Low 5.5mph
High 8.5mph

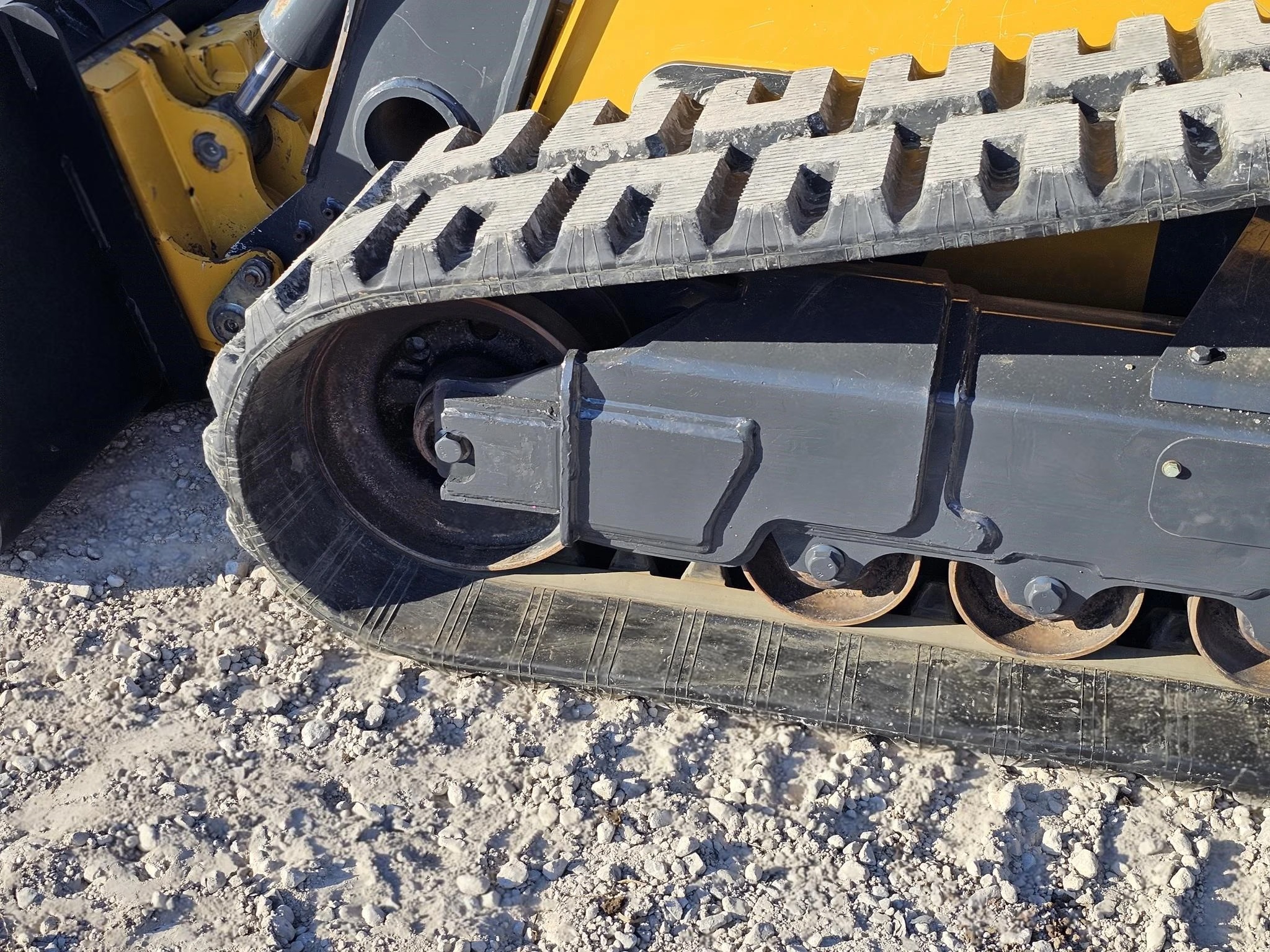

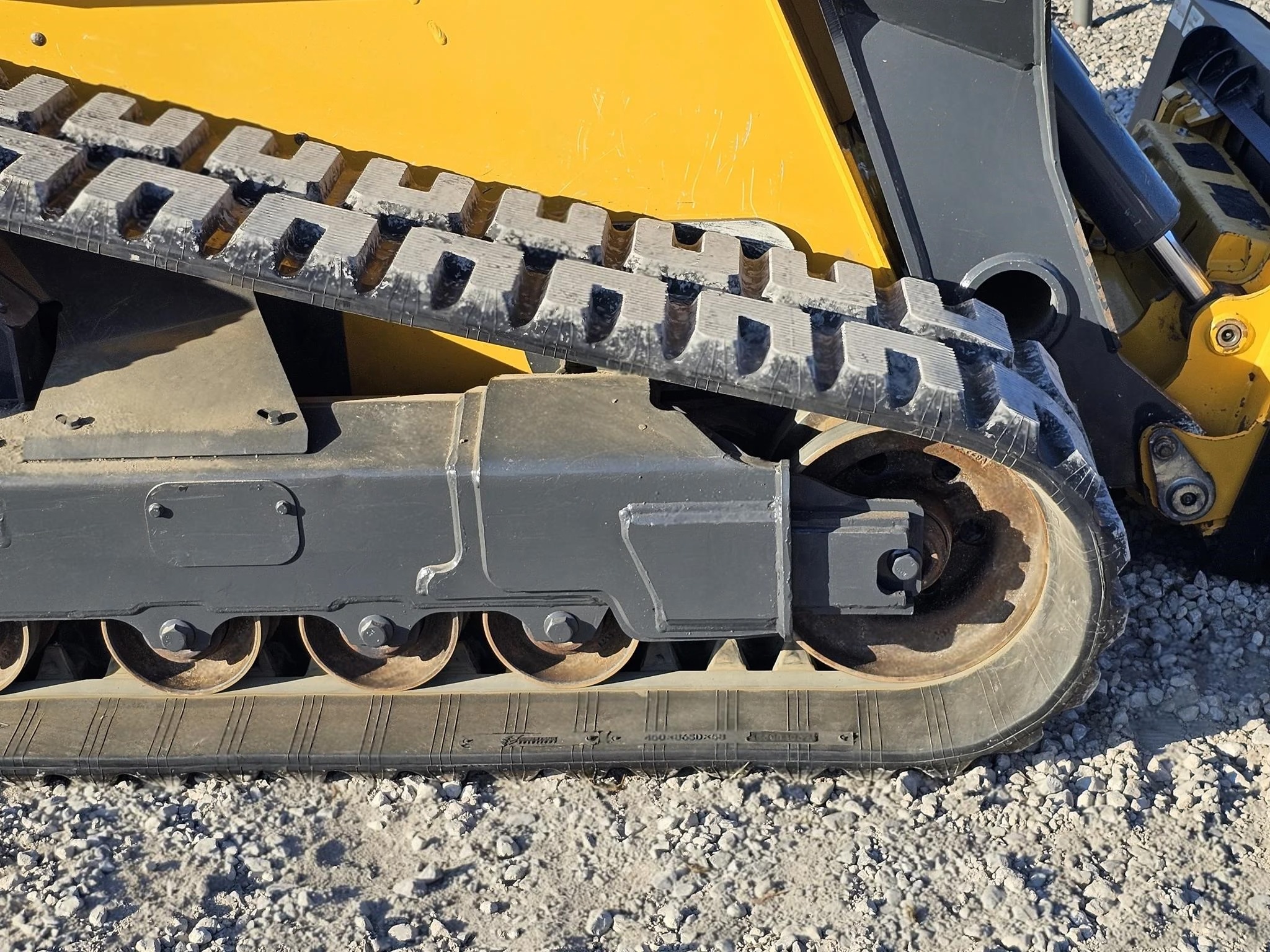

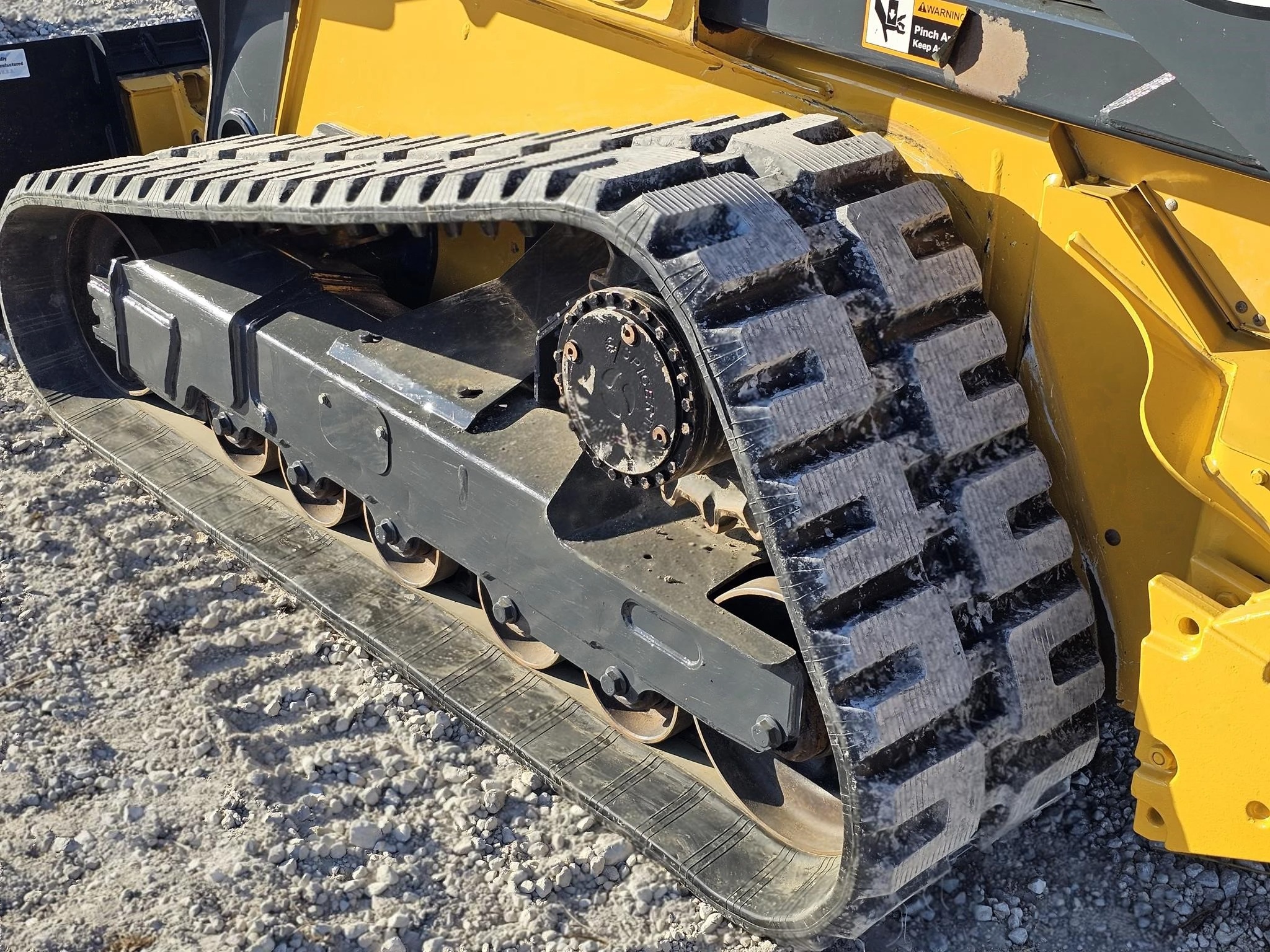

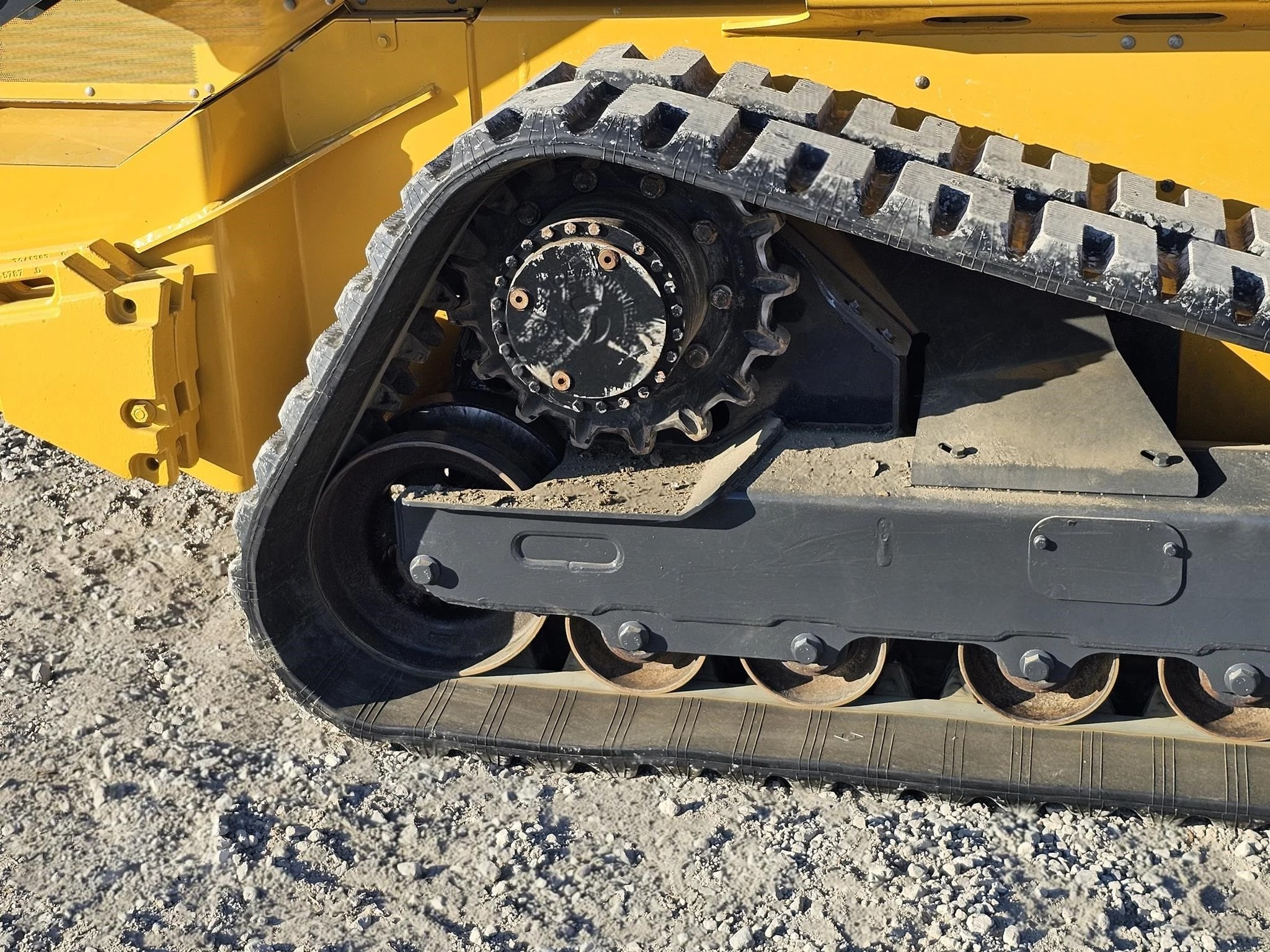

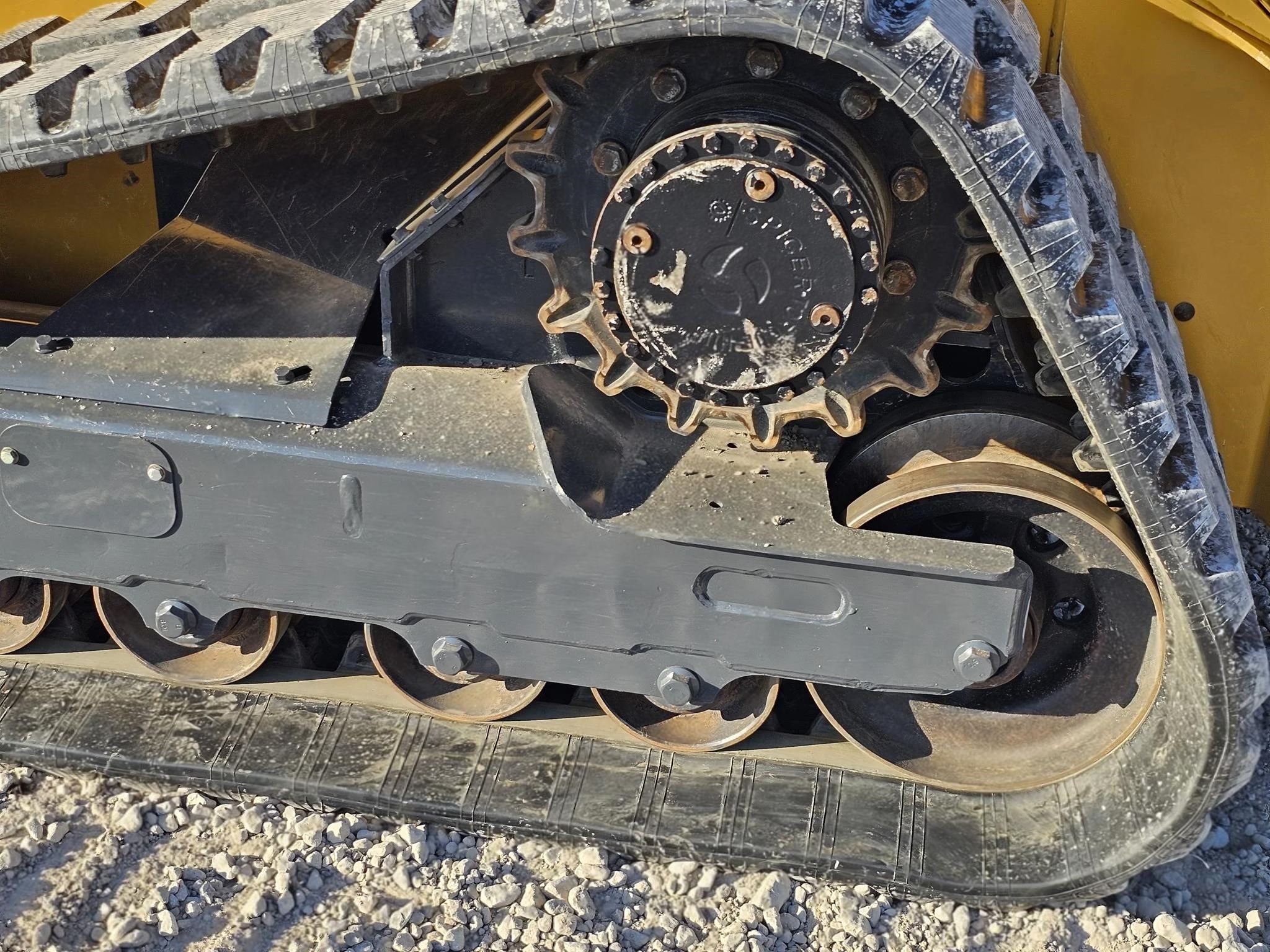

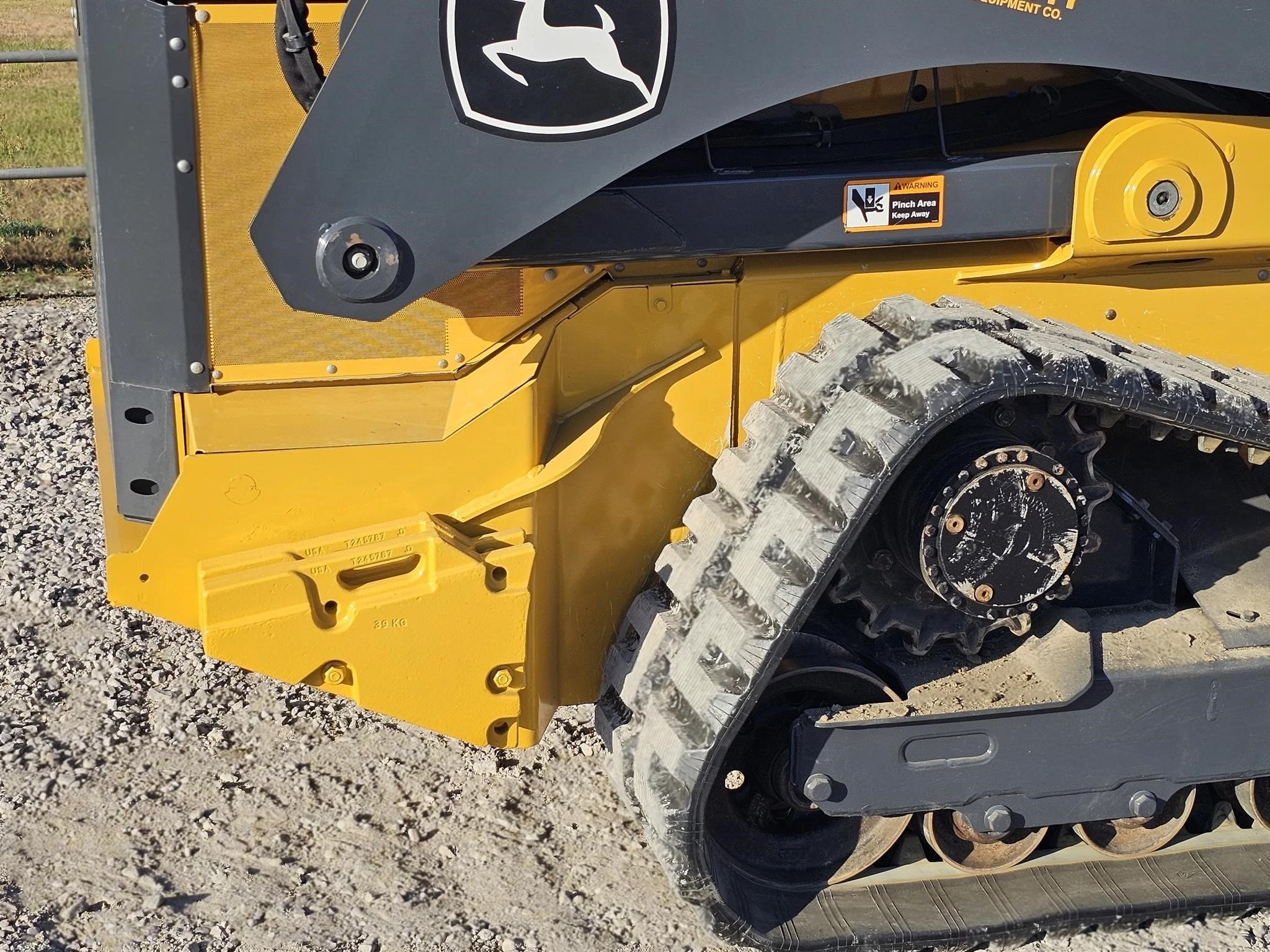

UNDERCARRIAGE

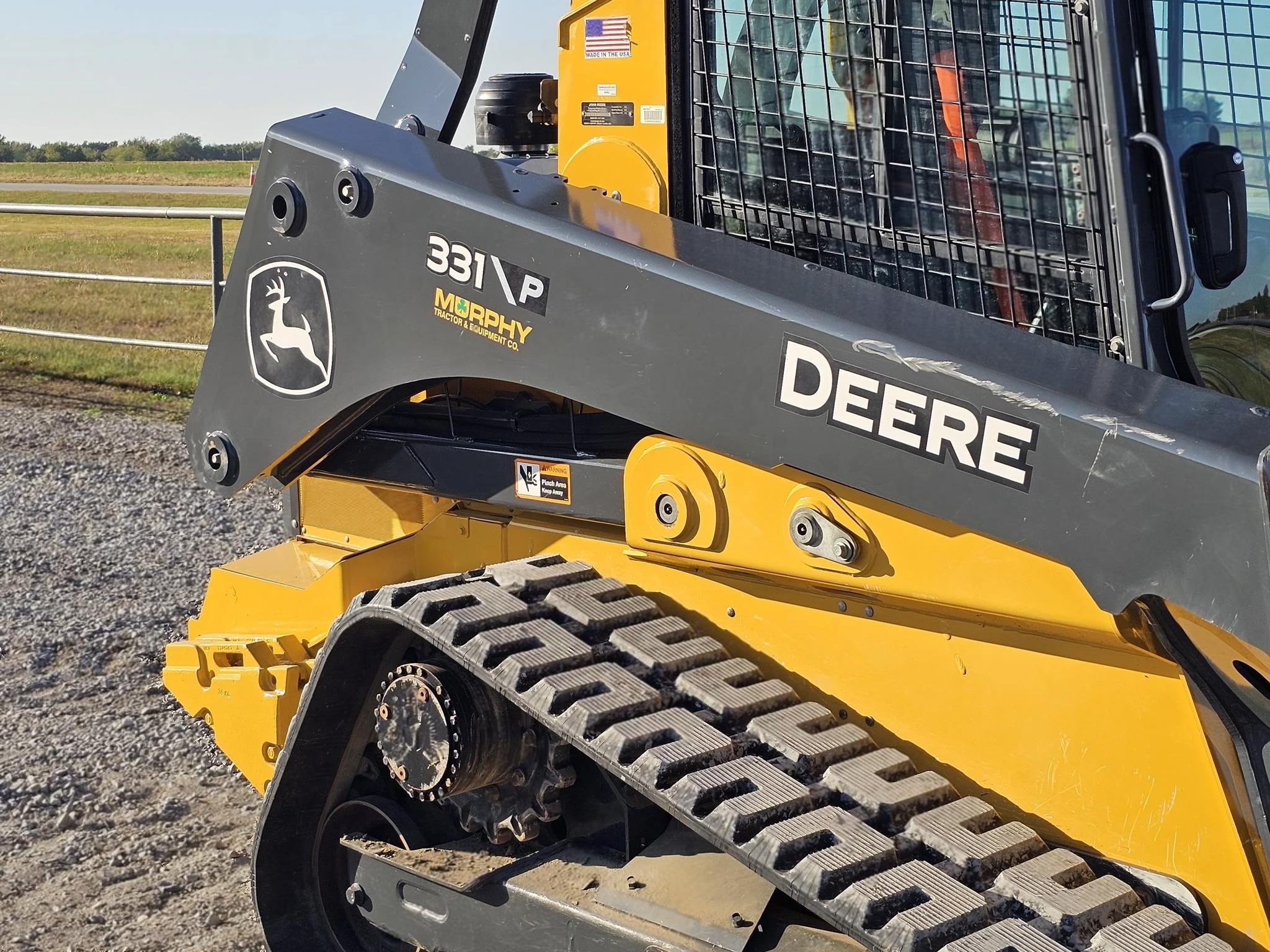

Rubber Tracks Smooth-ride long-life rubber with steel inserts
Track Width 15.8 in.
Ground Pressure 5.1 psi
Tractive Effort 11,500 lbf

HYDRAULICS

Pump Flow
Standard 25 gpm
High-Flow 39 gpm
System Pressure at Couplers 3,450 psi
Hydraulic Horsepower Flow (calculated)
Standard 50.32 hp
HIgh 78.5 hp

LOADER PERFORMANCE

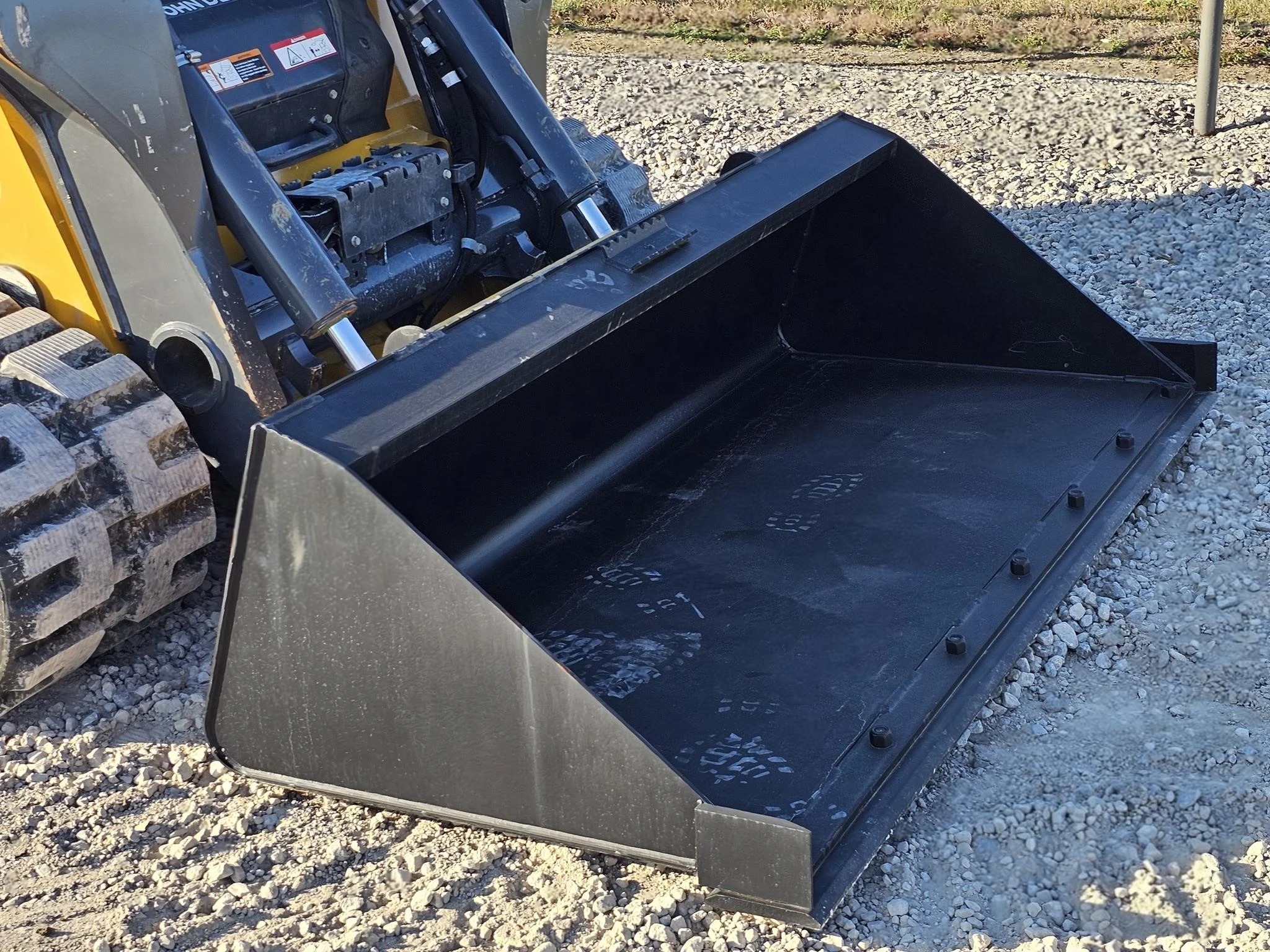

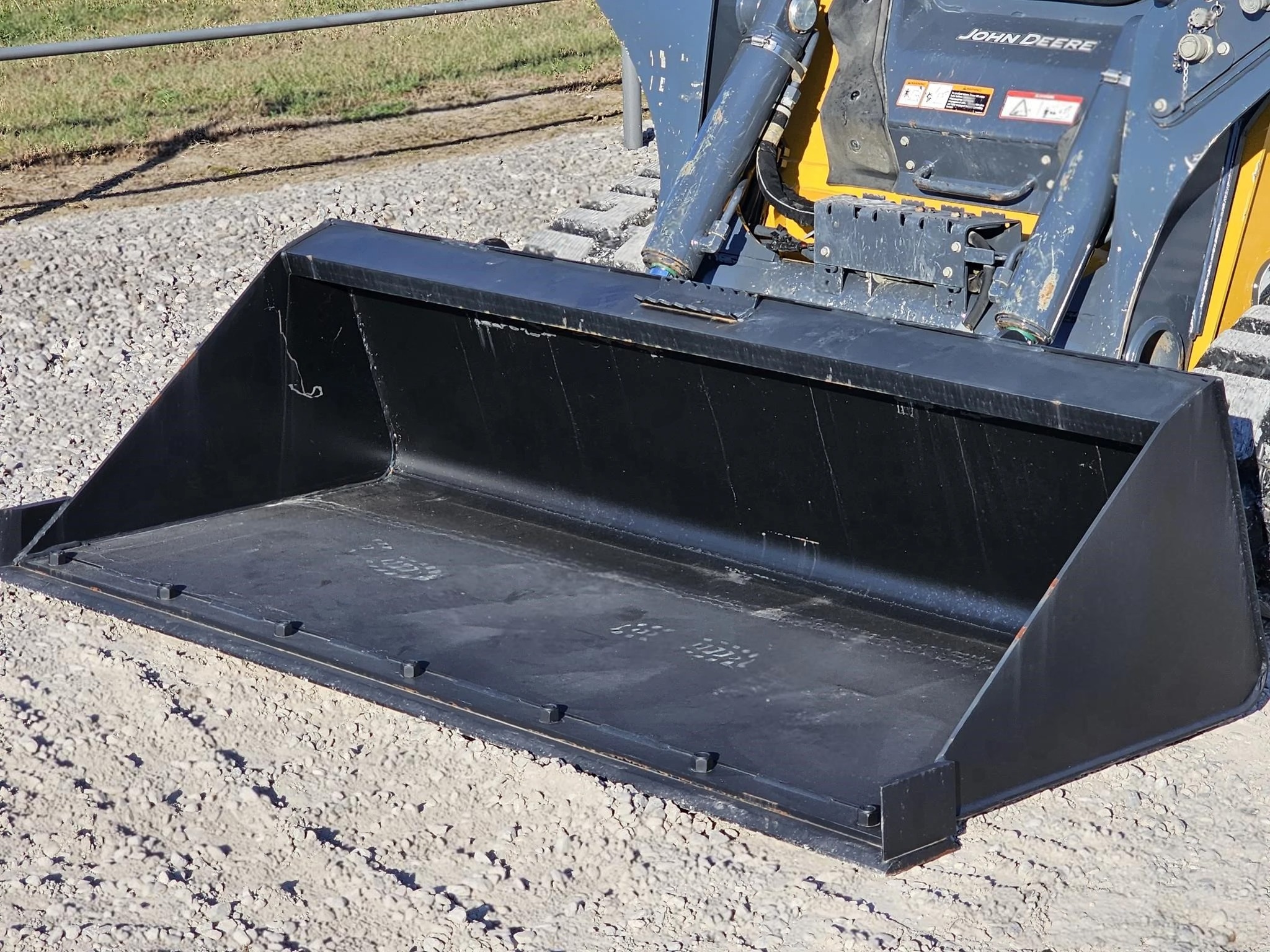

Advertised tipping load w/ construction bucket 9,000lb.
SAE Rated Operating Capacity With Construction Bucket
At 35% Tipping Load 3,150 lb.
At 50% Tipping Load 4,500 lb.

SERVICEABILITY

Fuel tank – 29.5 gal

WEIGHTS

Operating weights 11,914 lb.
