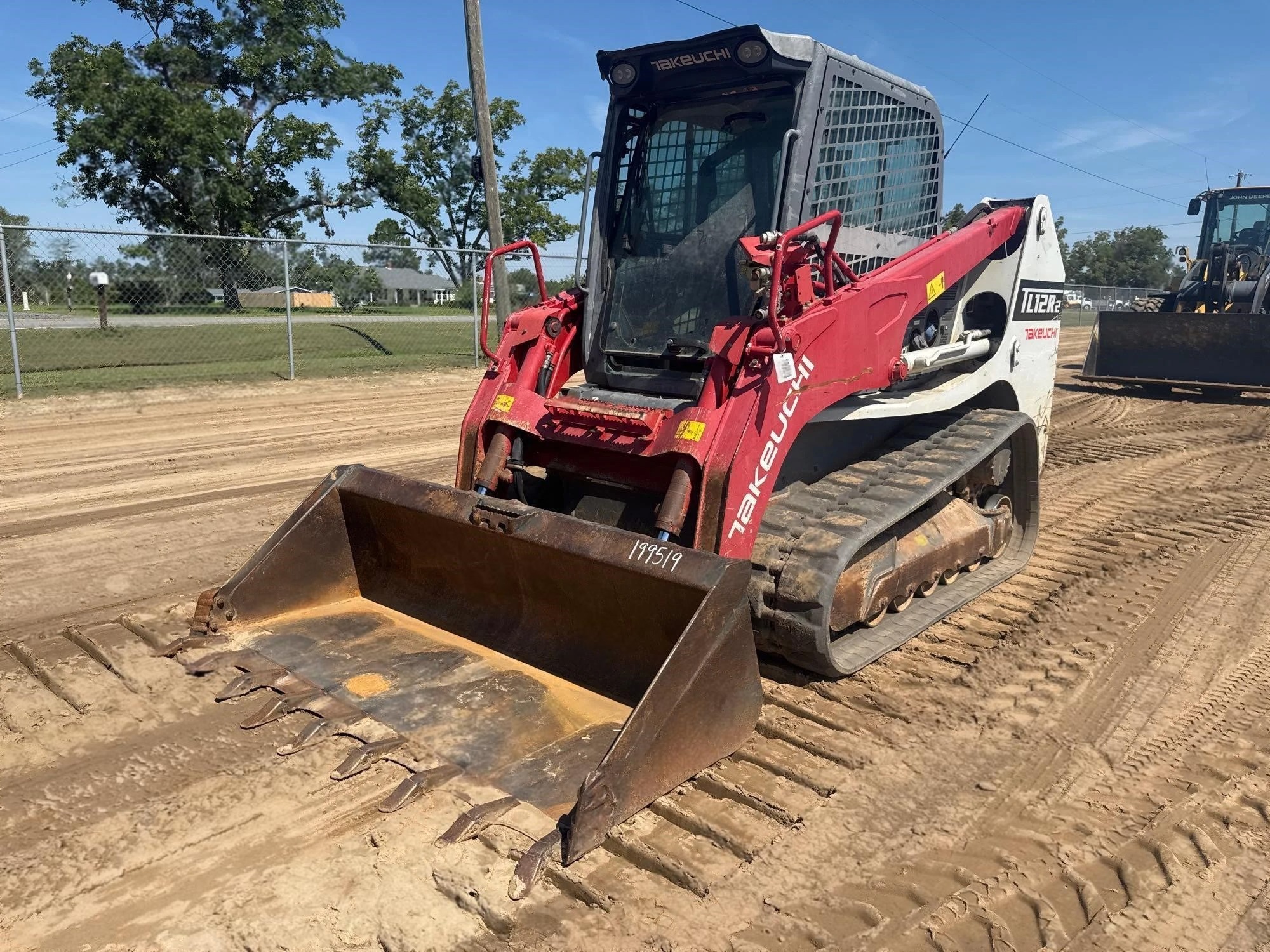

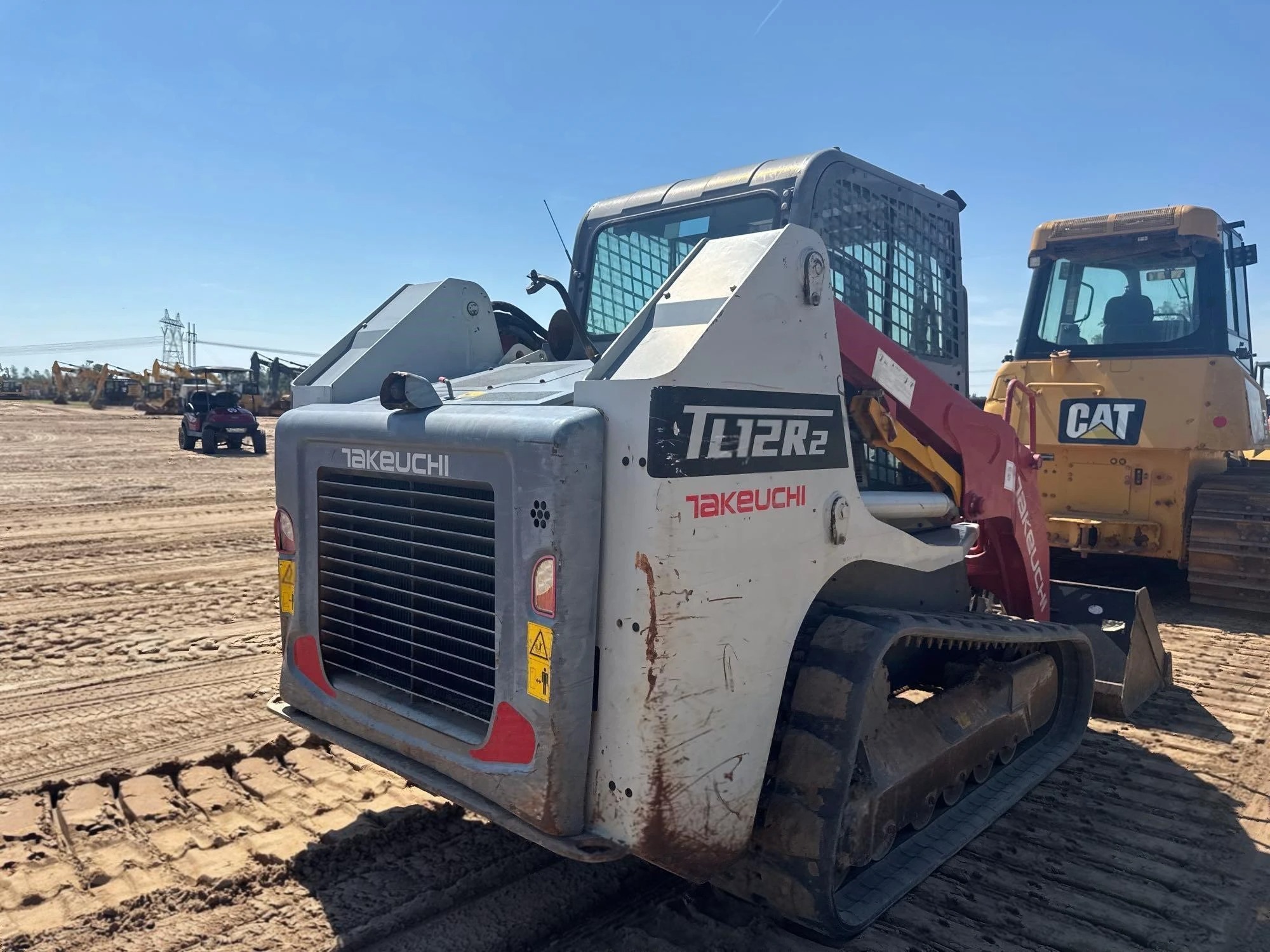

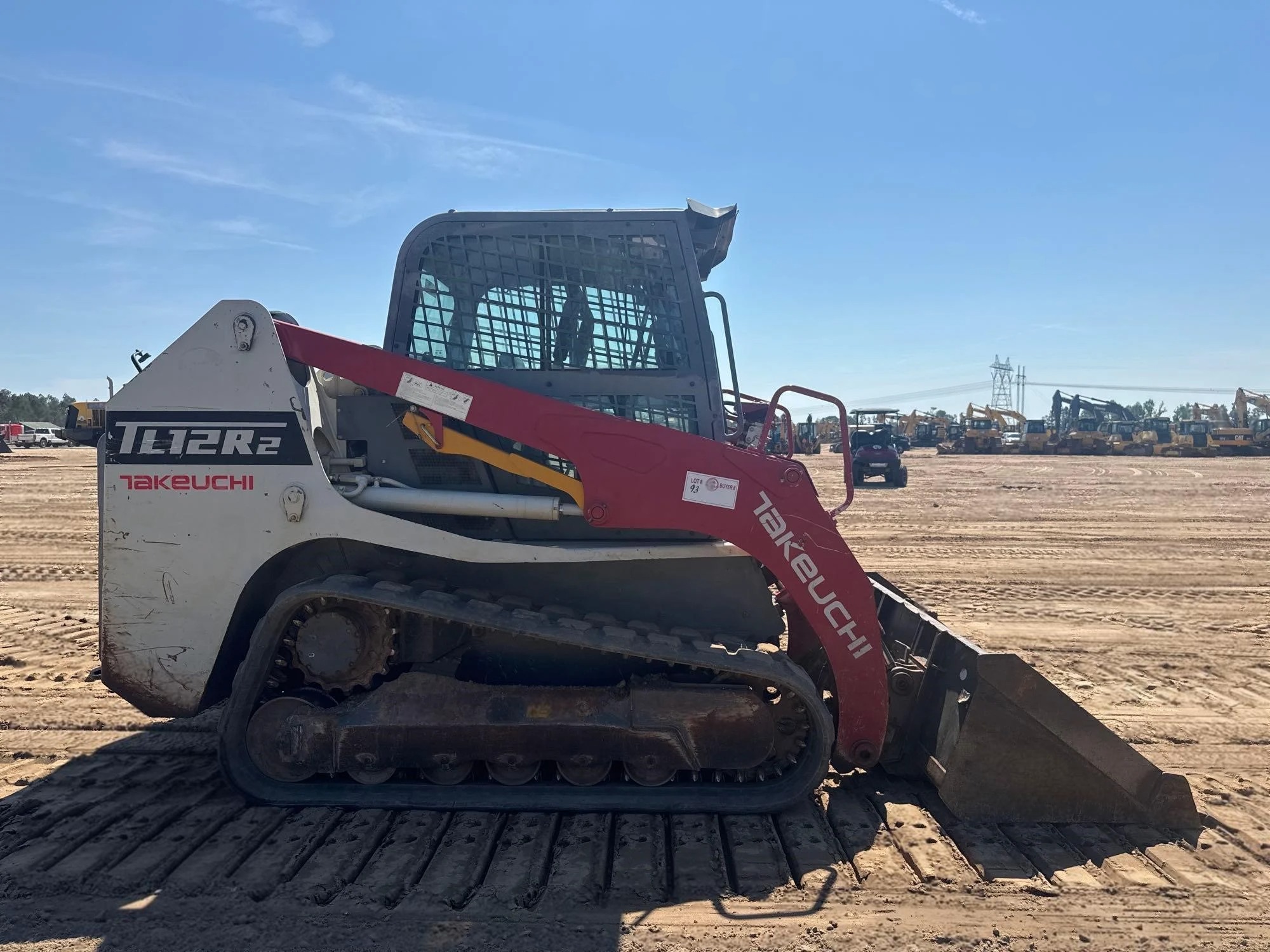

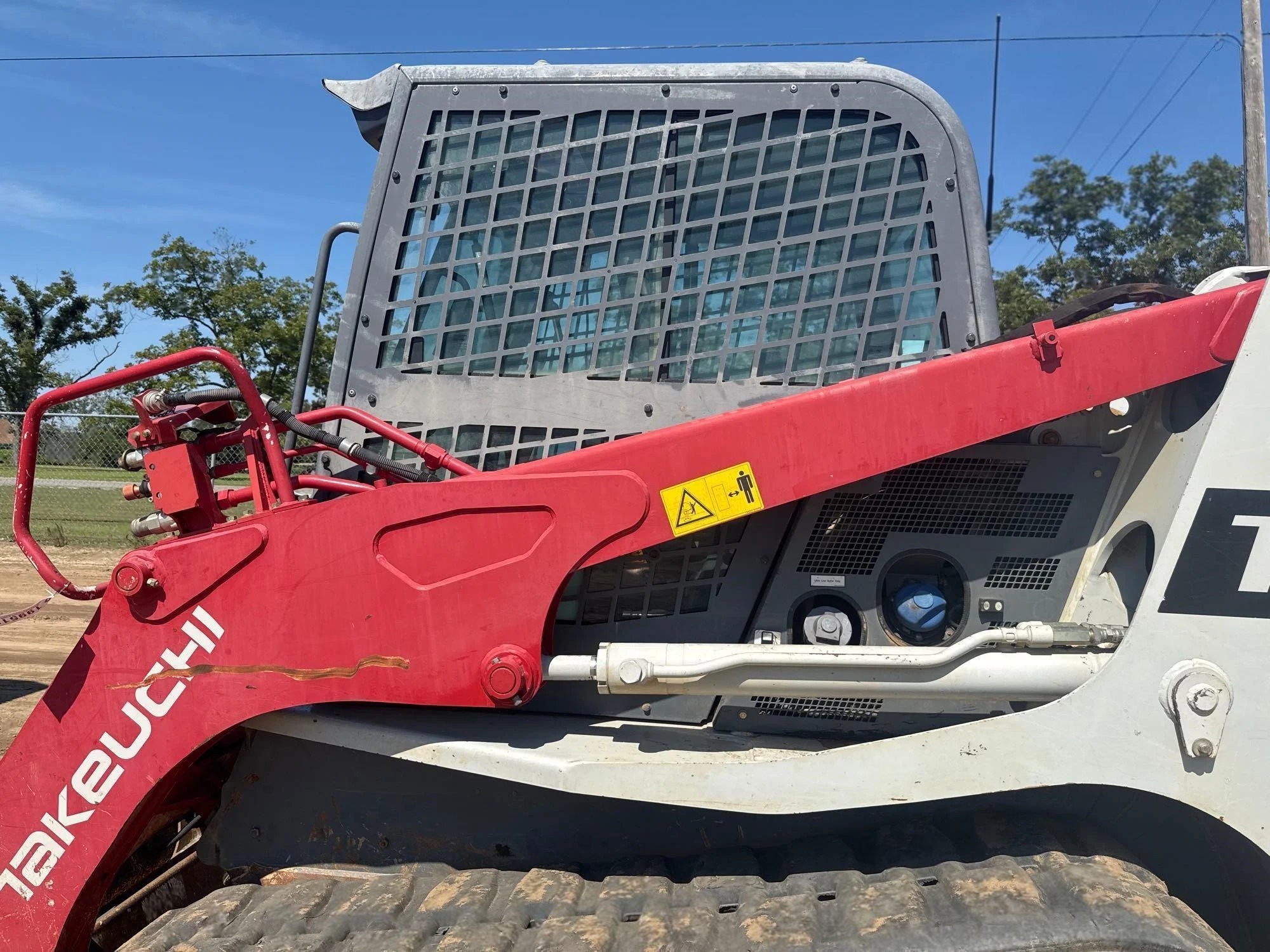

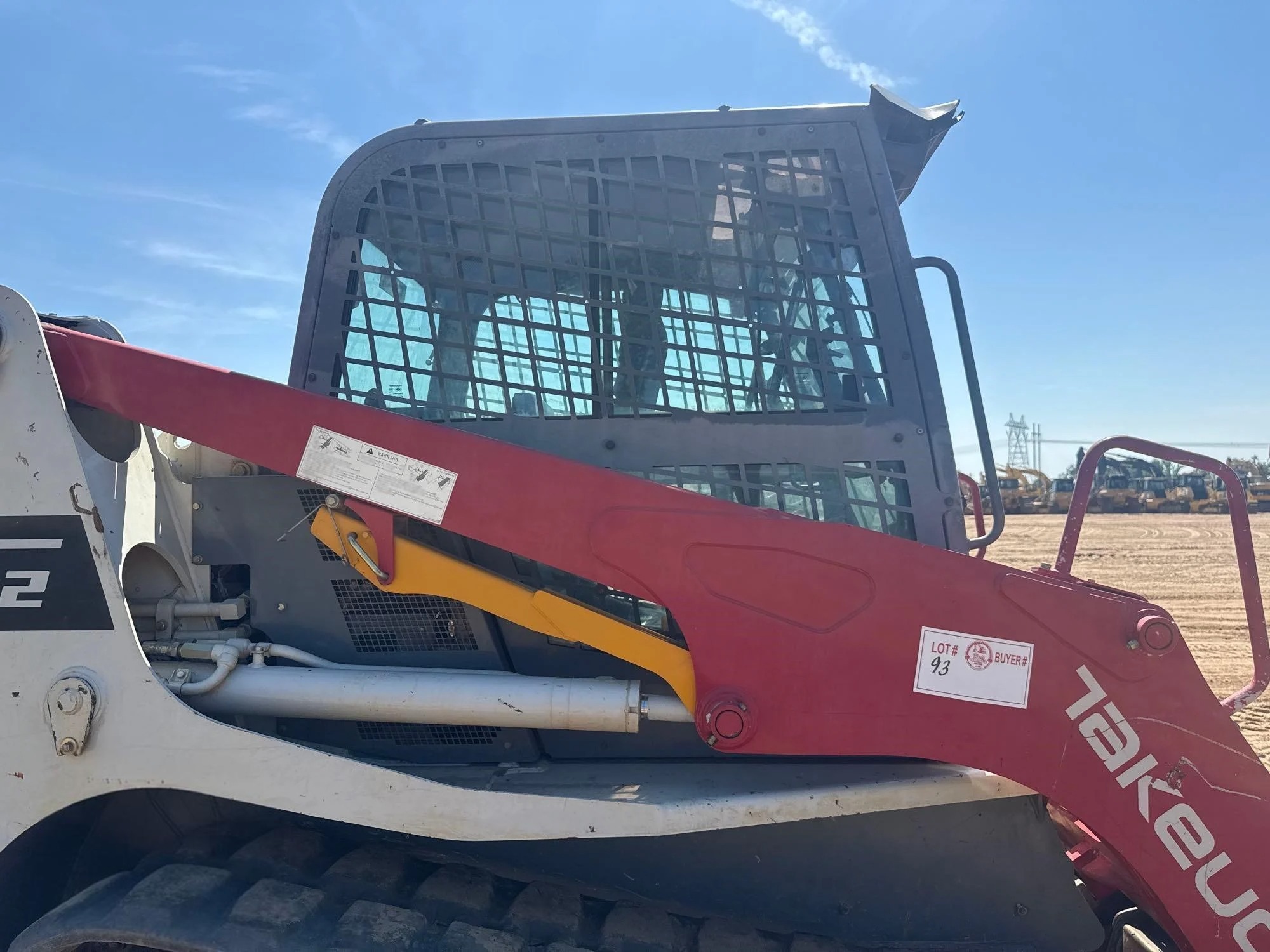

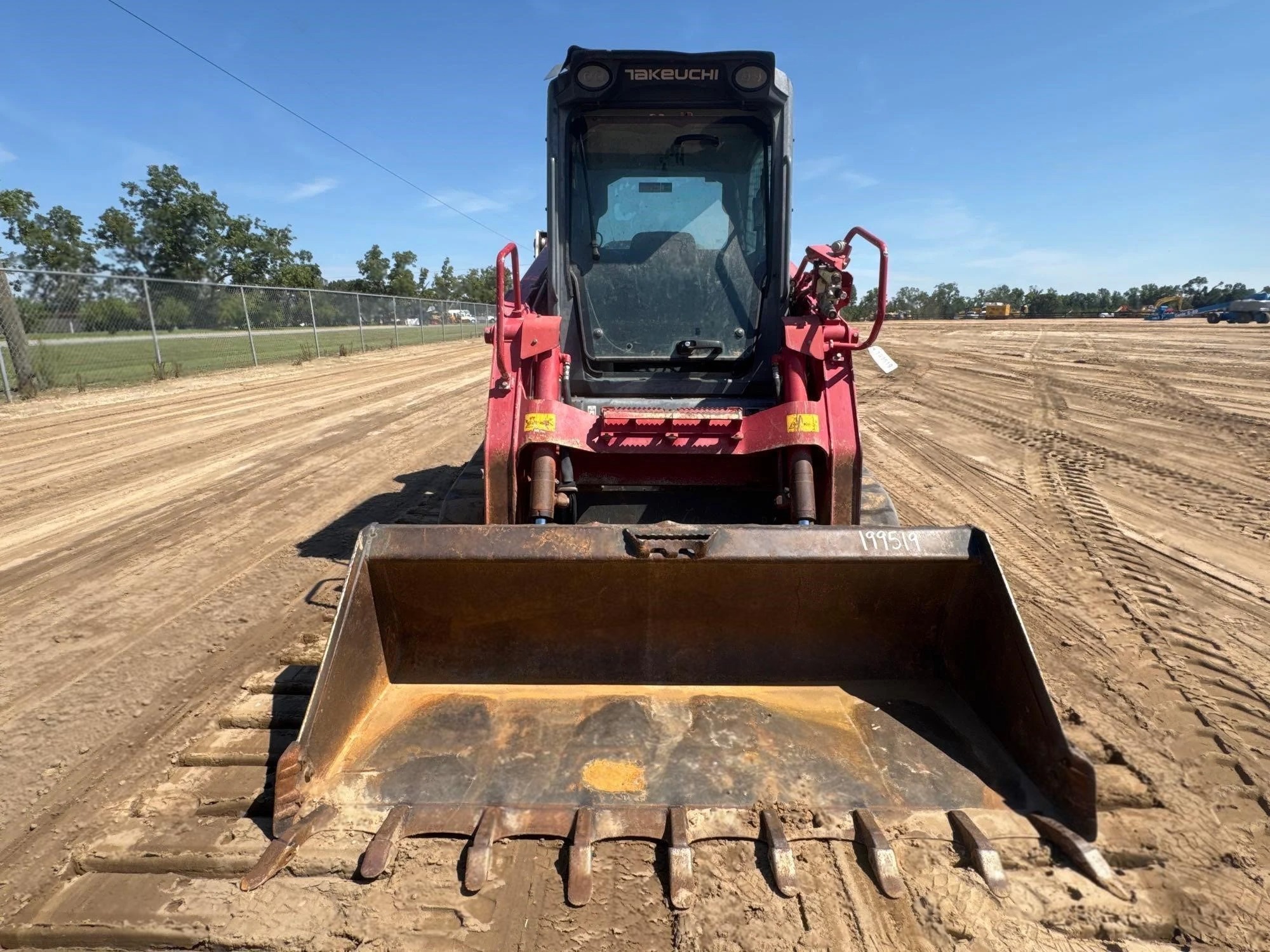

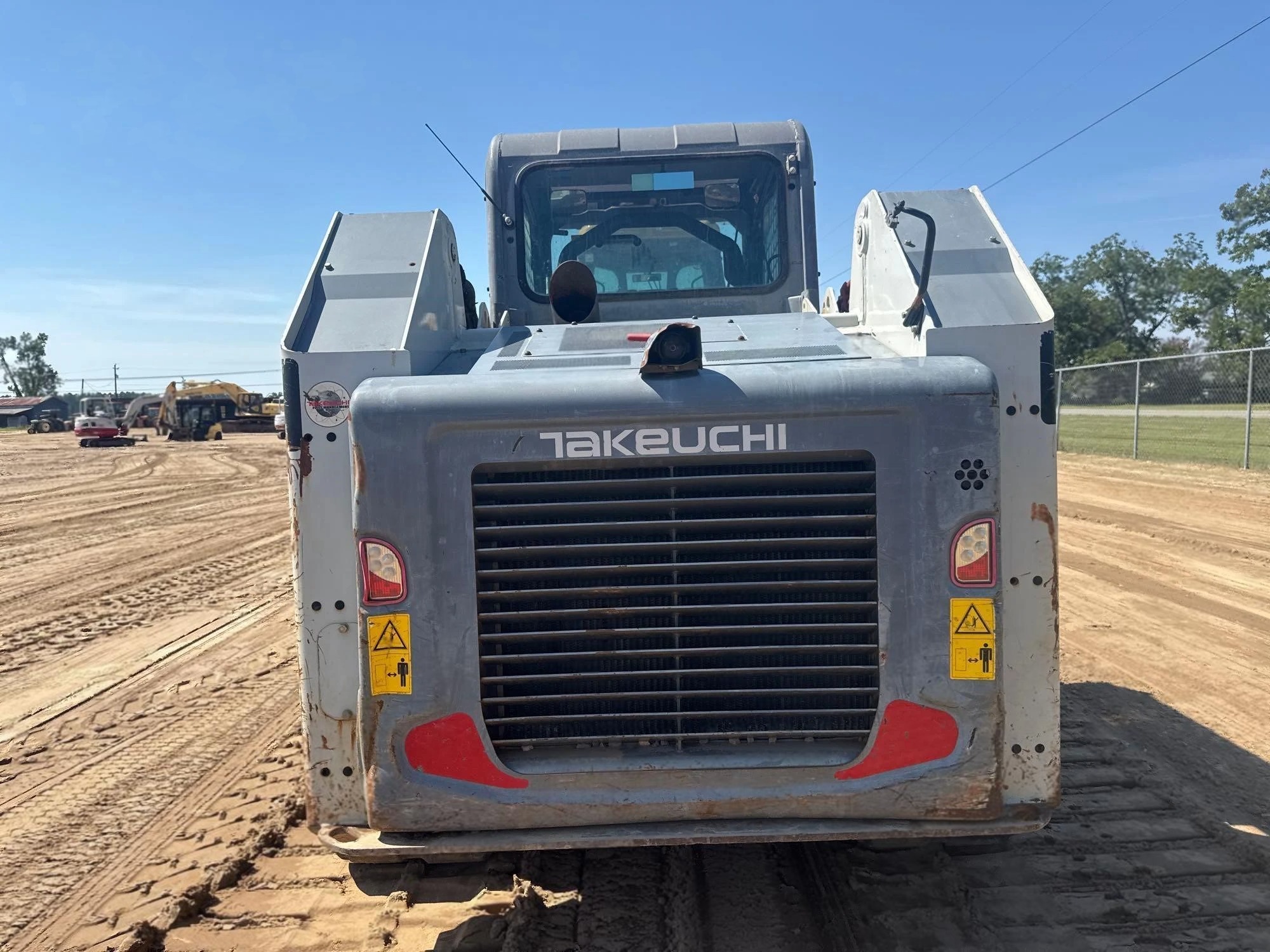

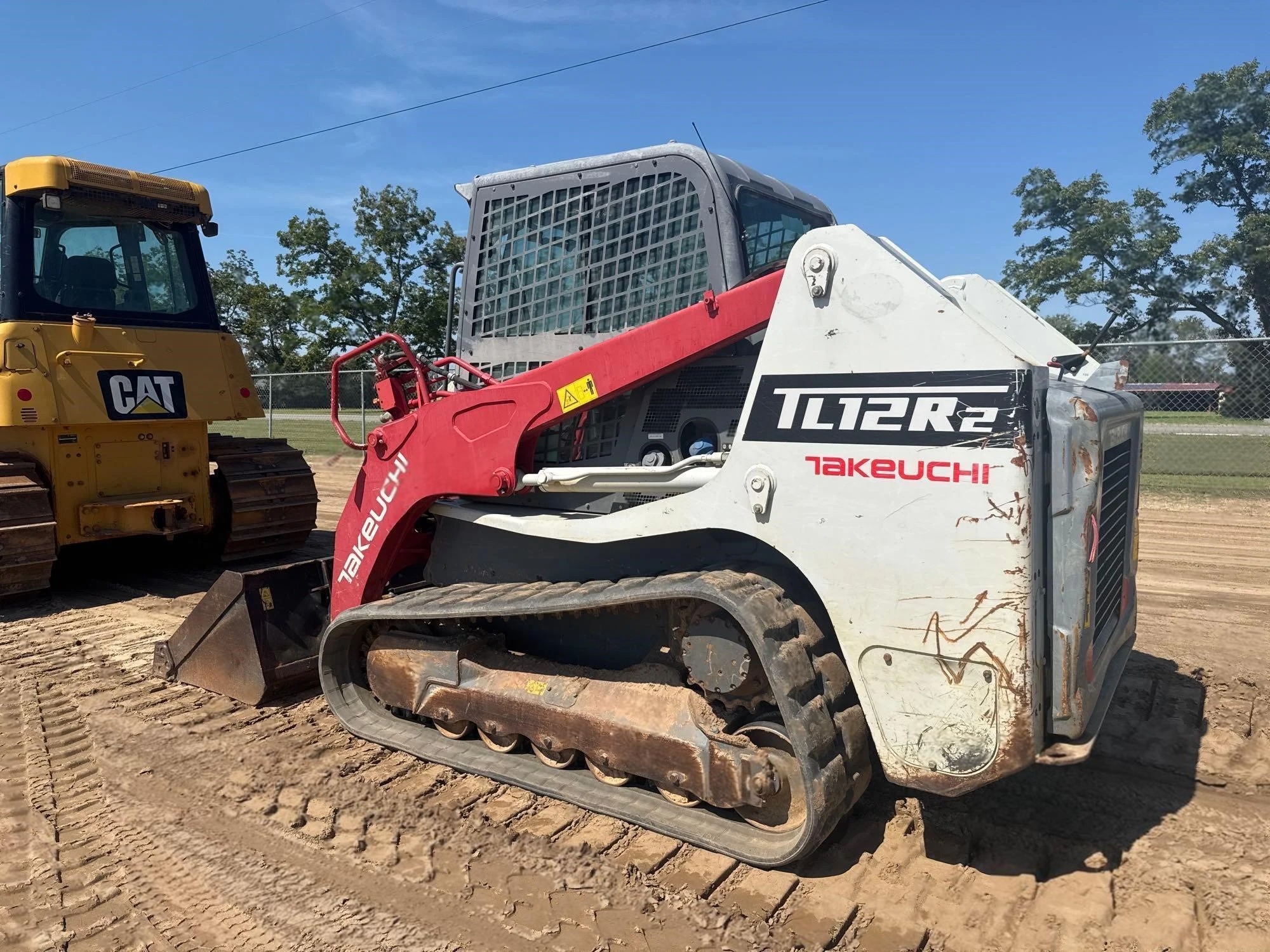

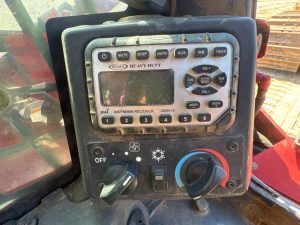

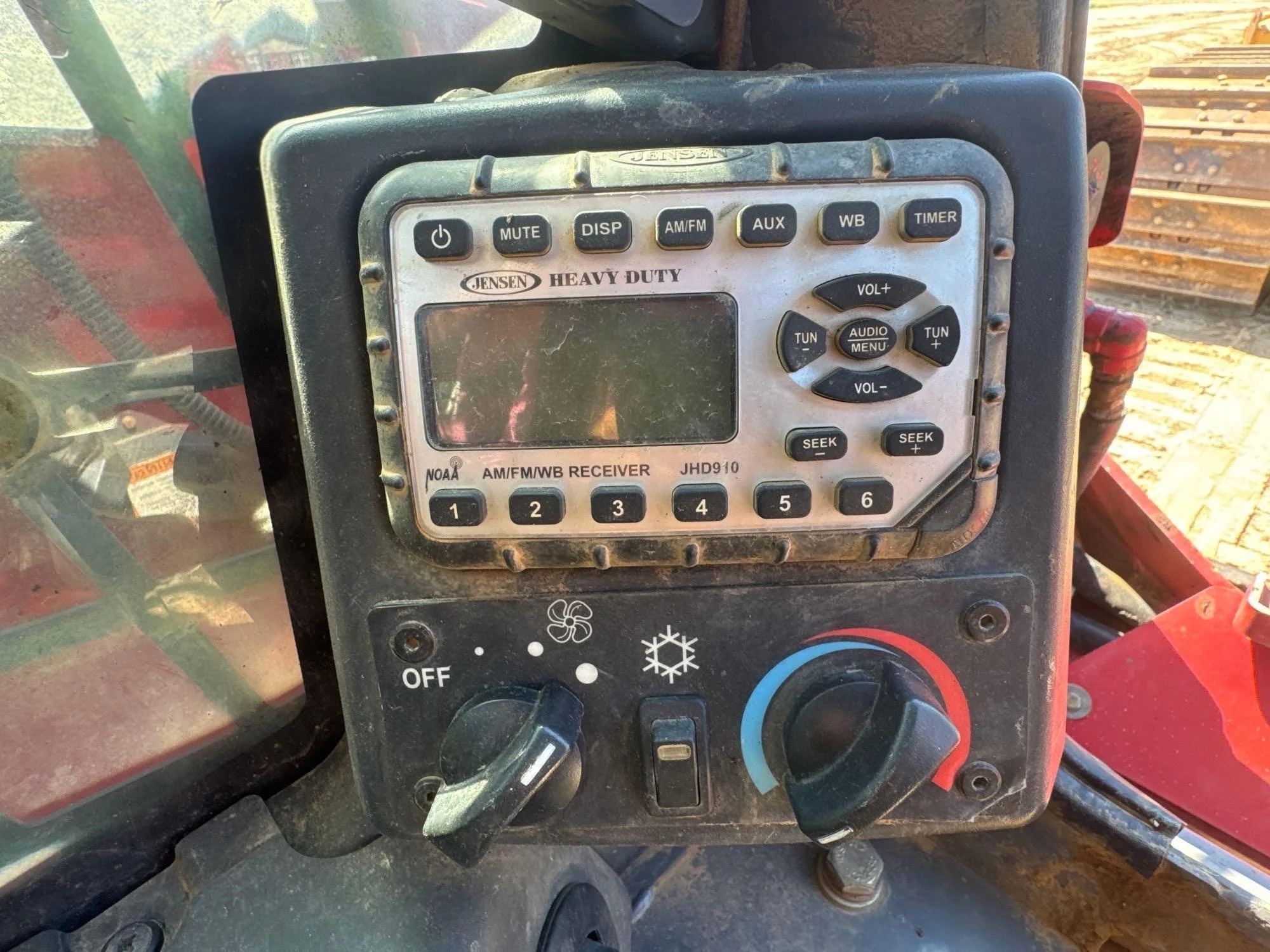

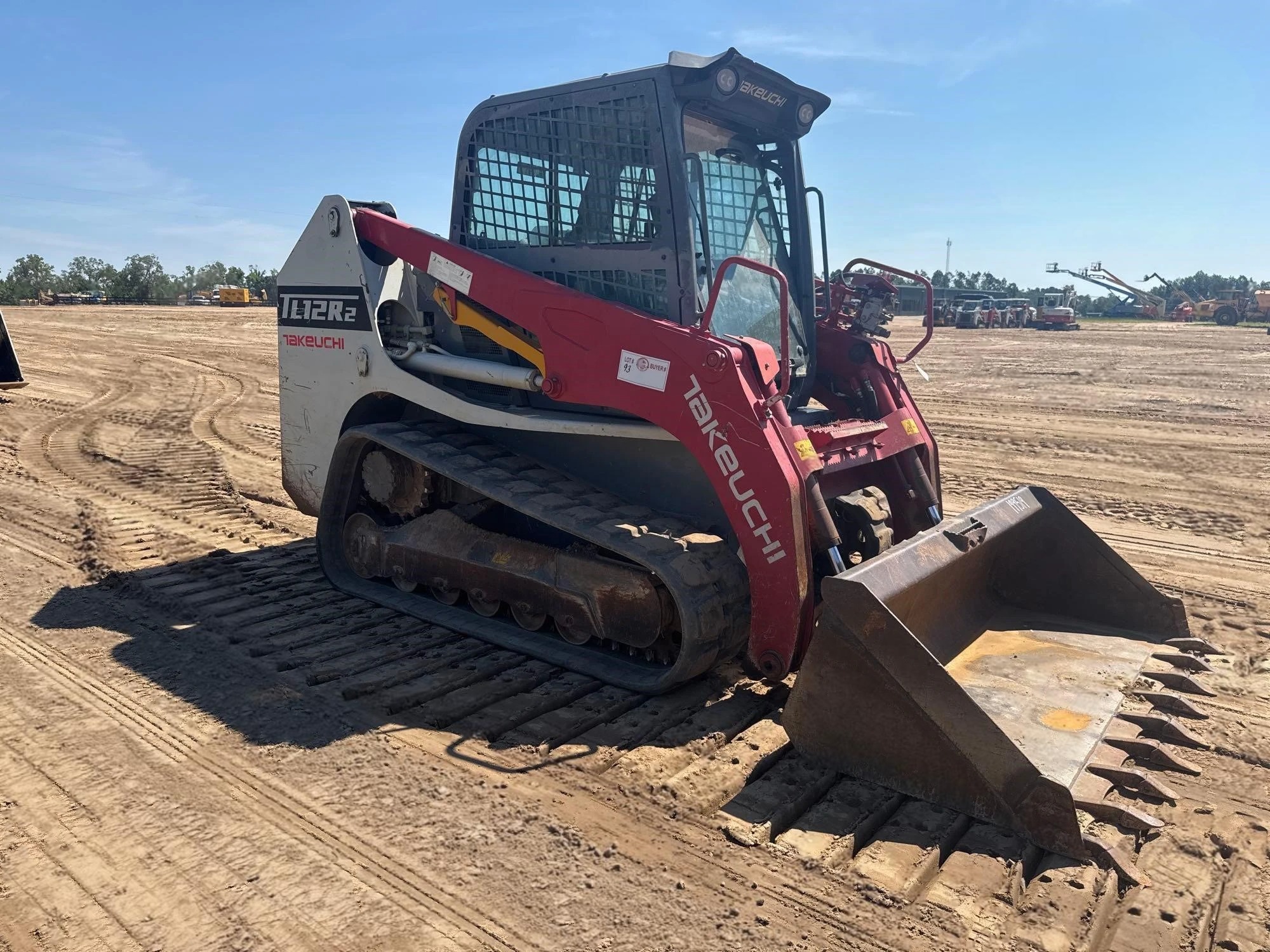

Well-maintained, job-ready 2022 Takeuchi TL12R2 track loader. Features an enclosed cab with A/C and heat, auxiliary valves, rubber tracks, and hydraulic quick-connect latch system with bucket. Thoroughly inspected and fully operational. Contact us today for a freight quote to your location.

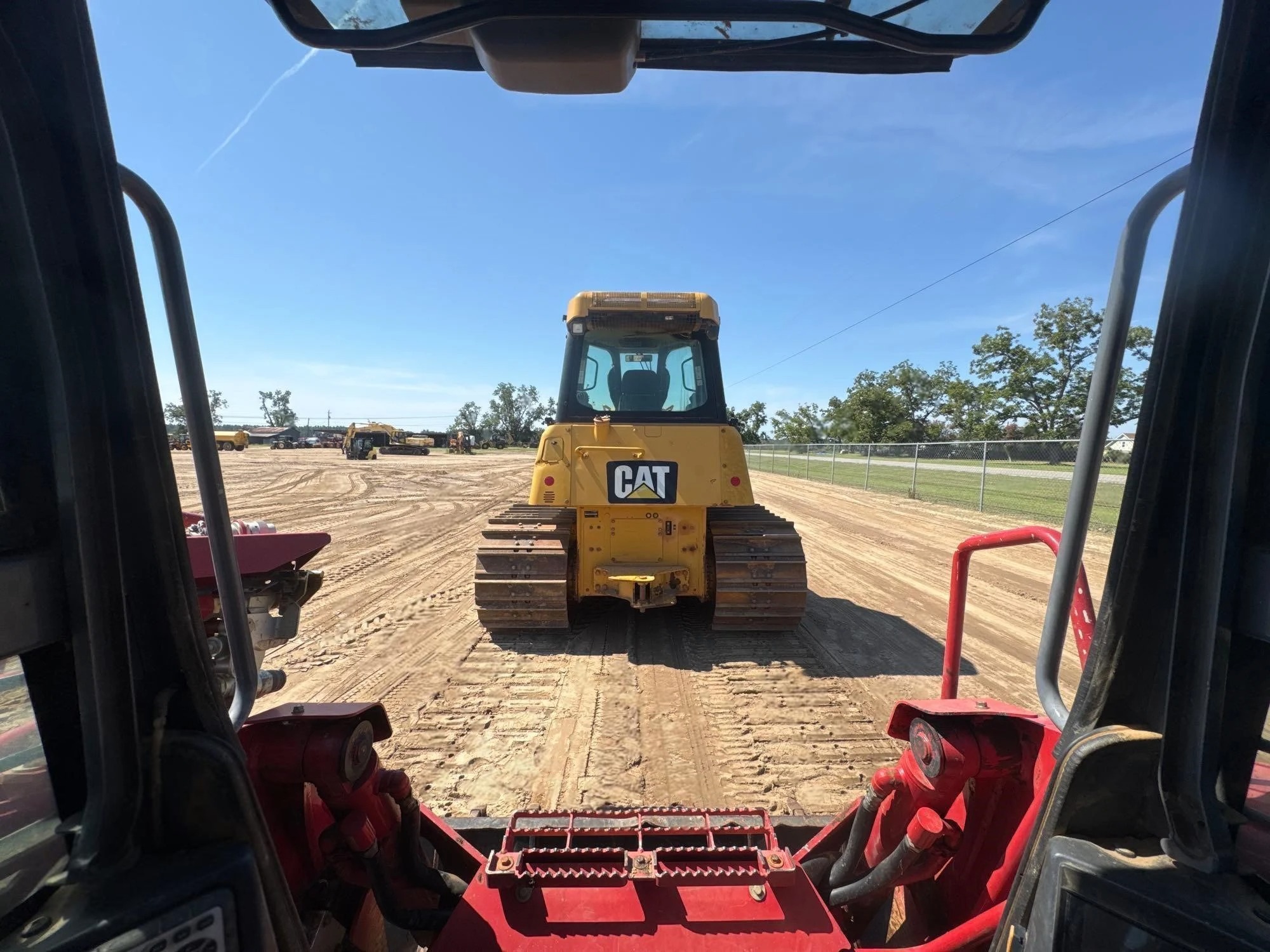

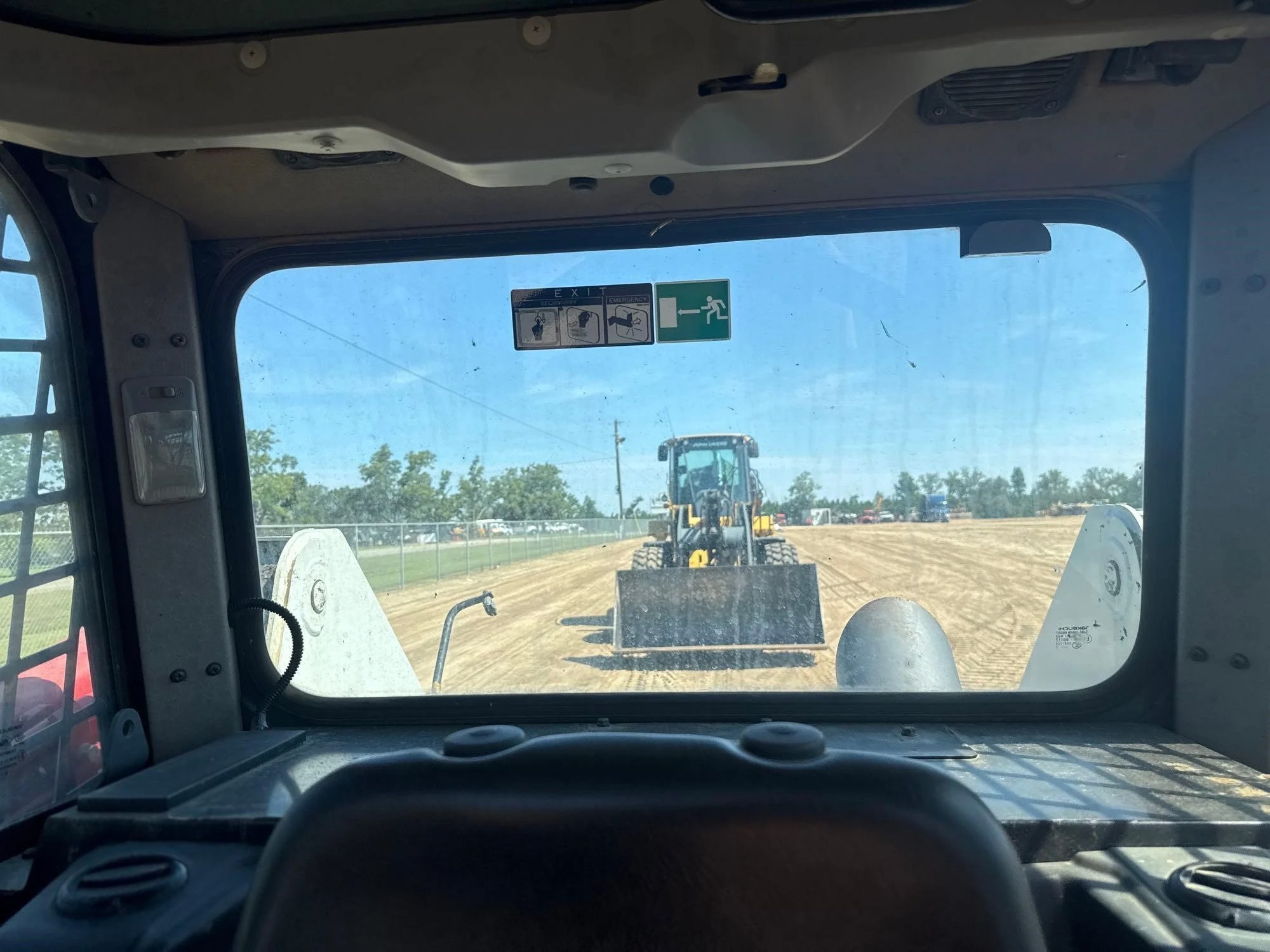

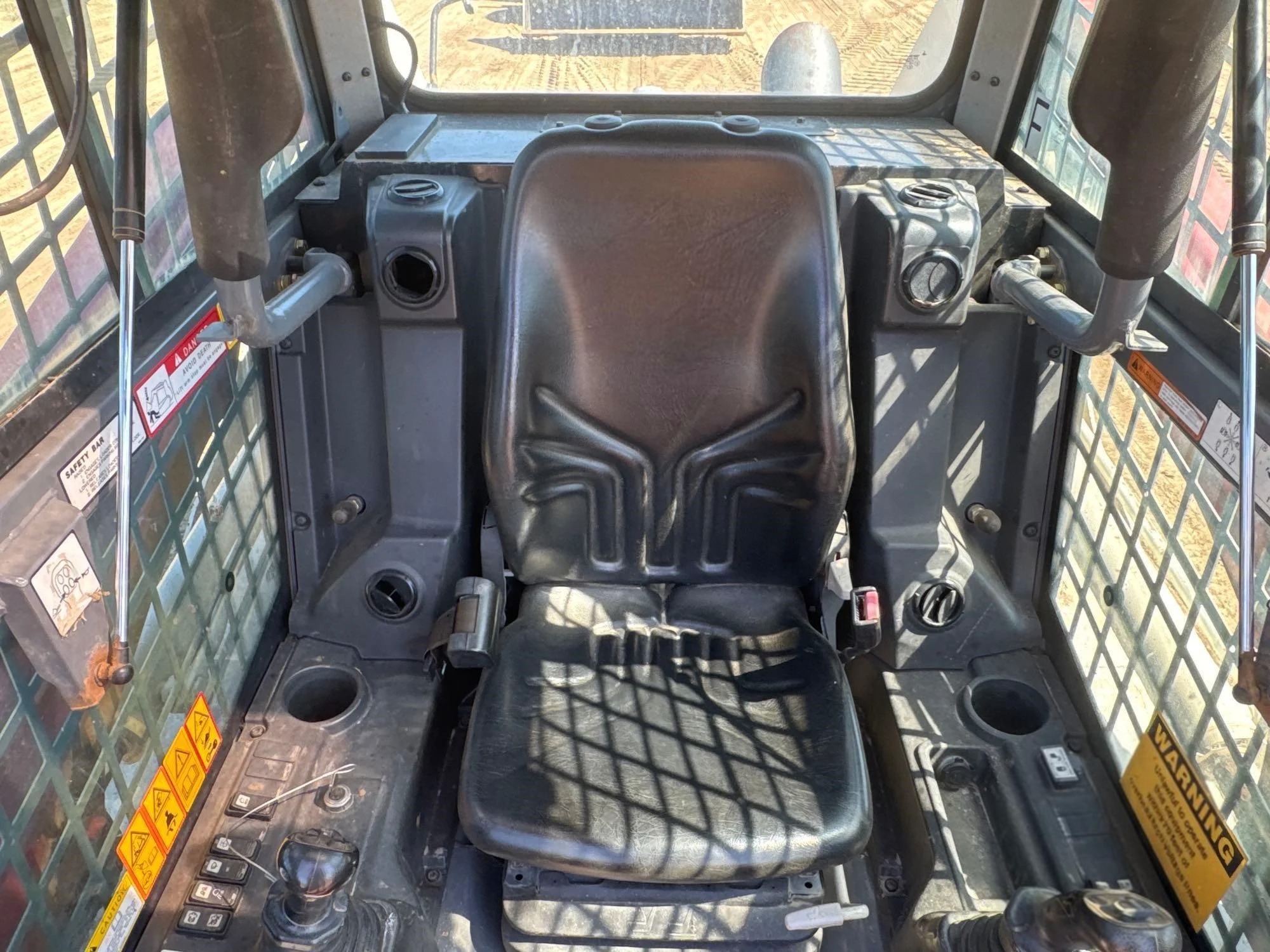

EROPS (enclosed cab)
Standard Flow

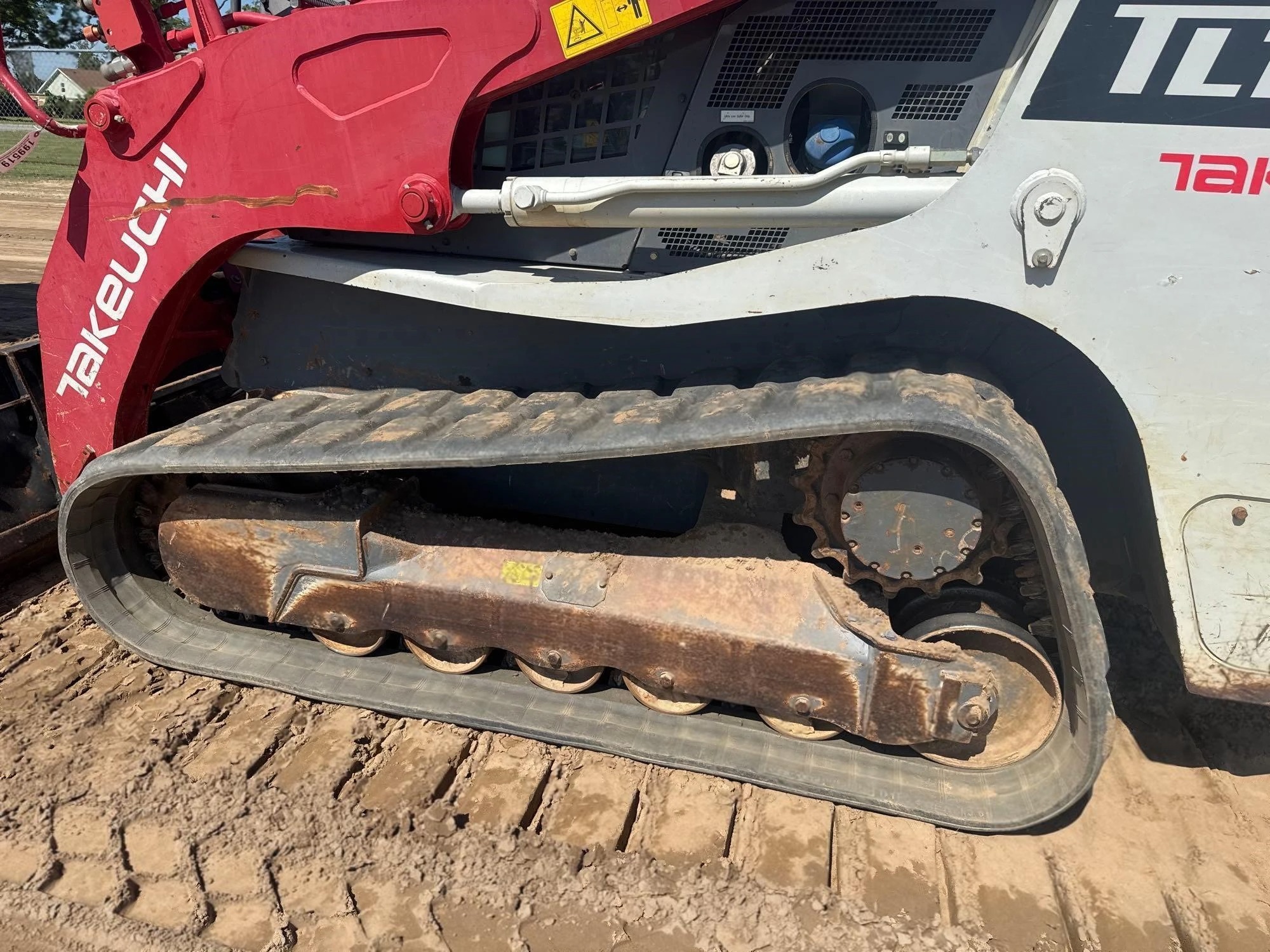

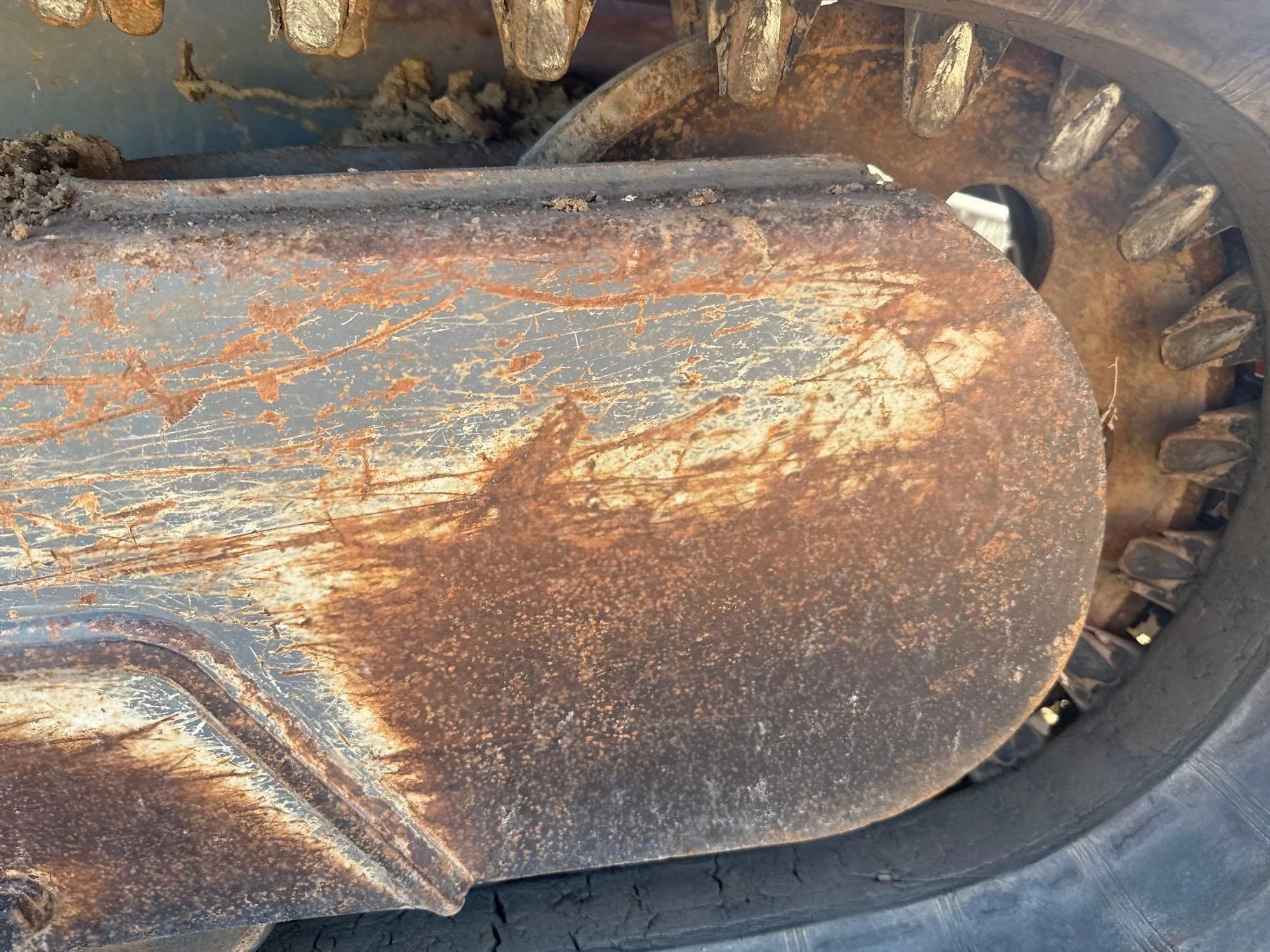

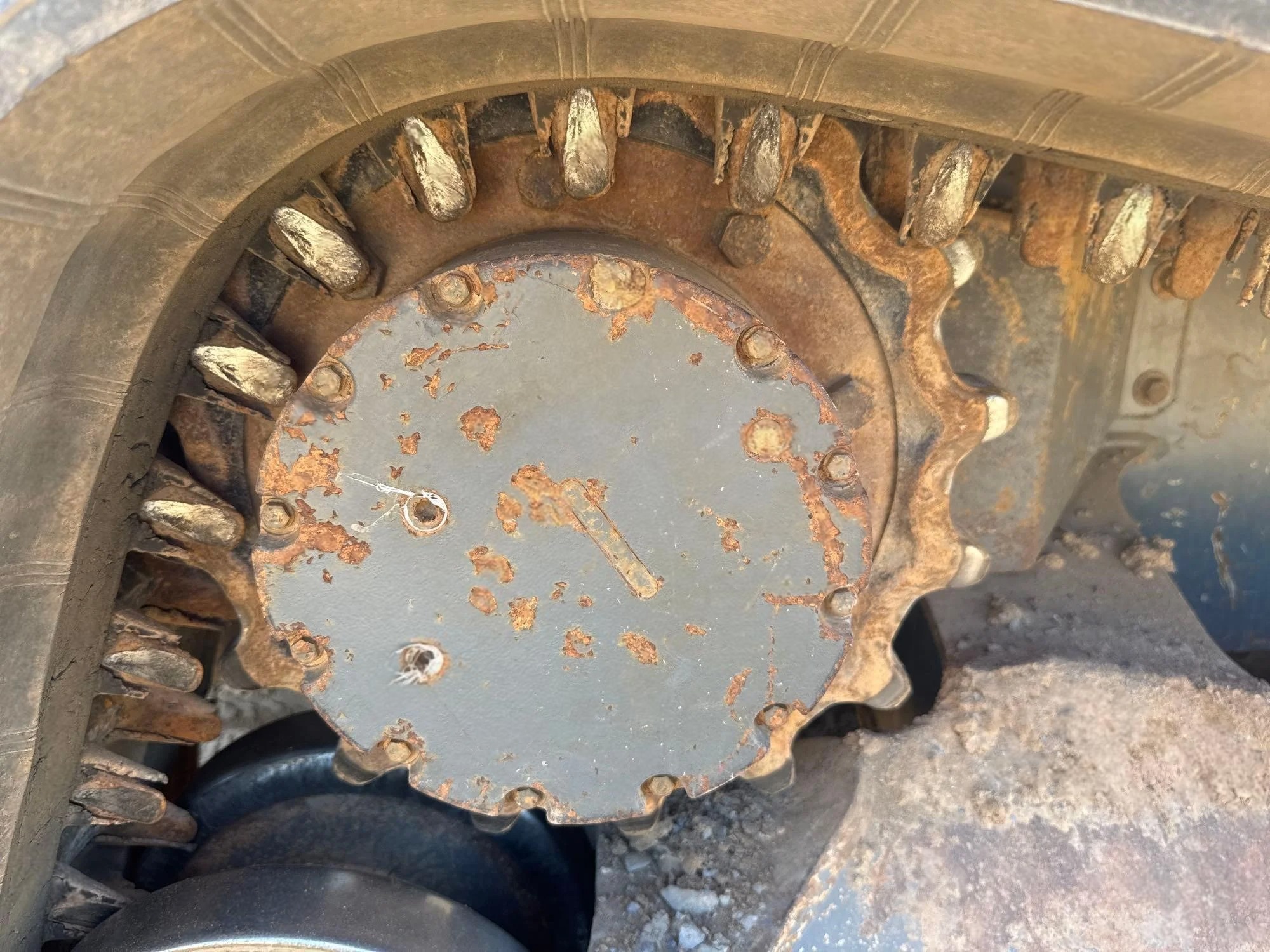

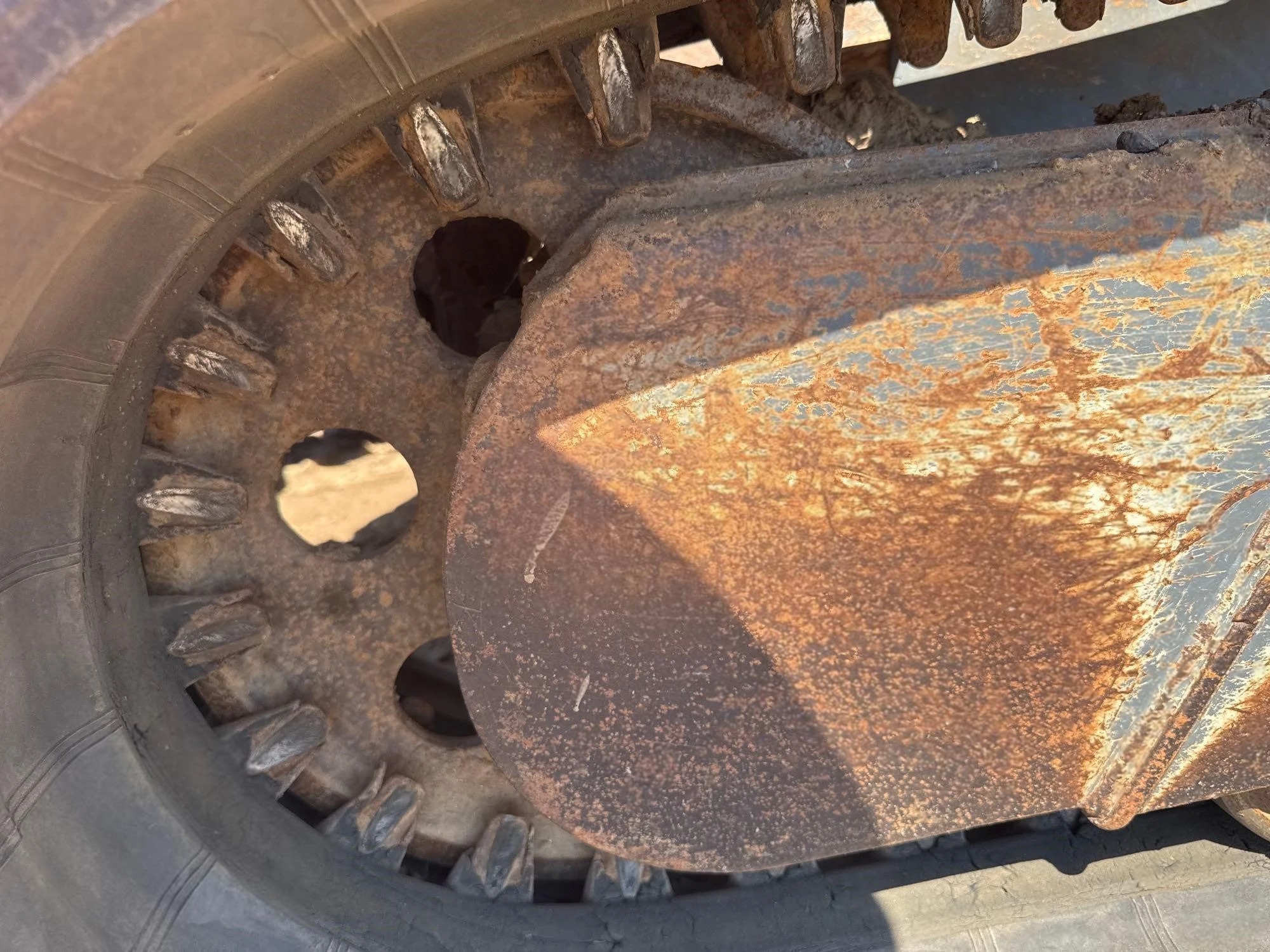

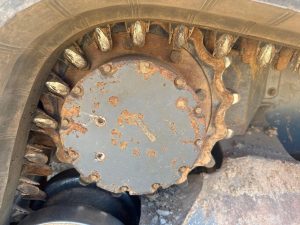

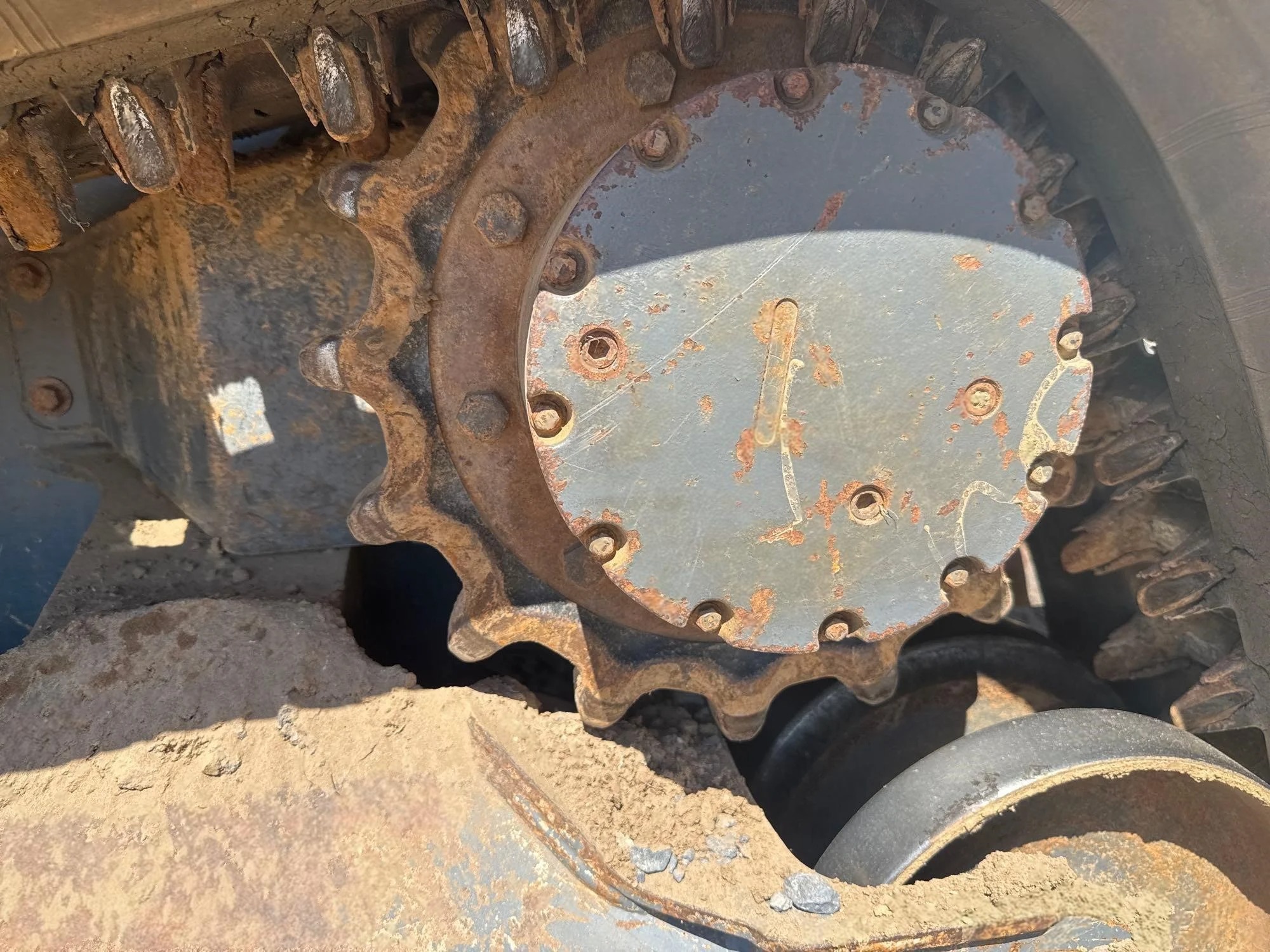

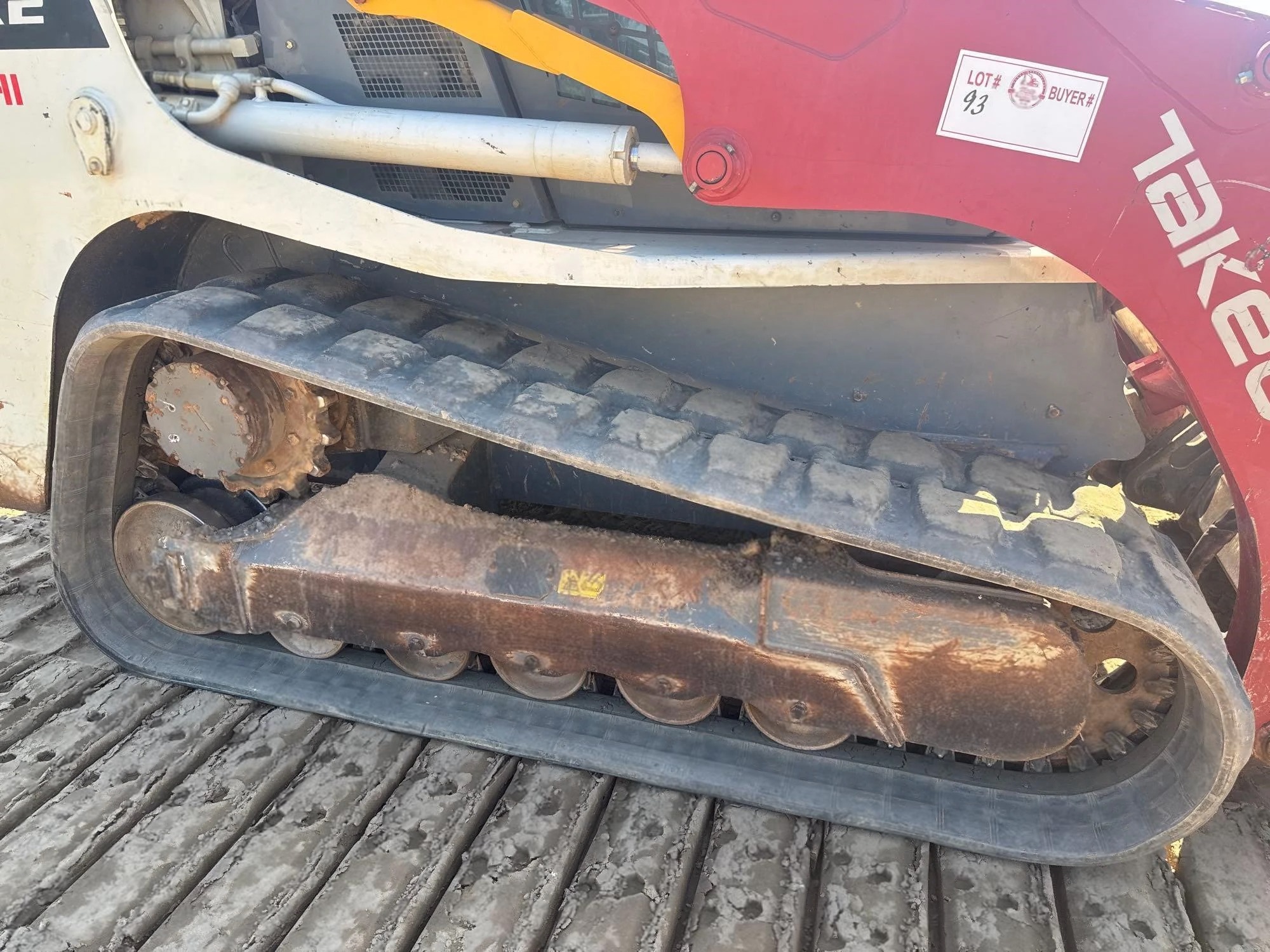

Rubber Track

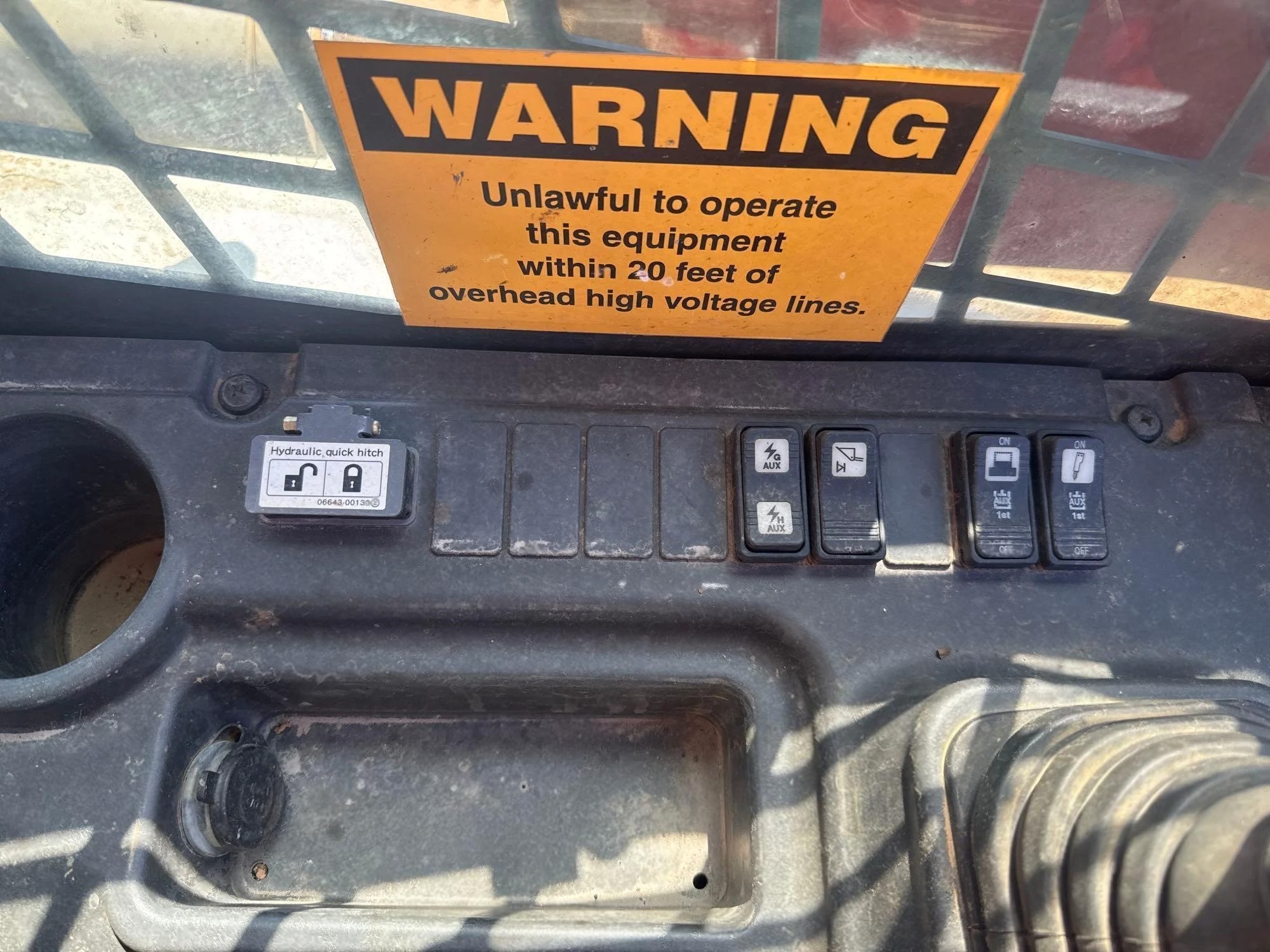

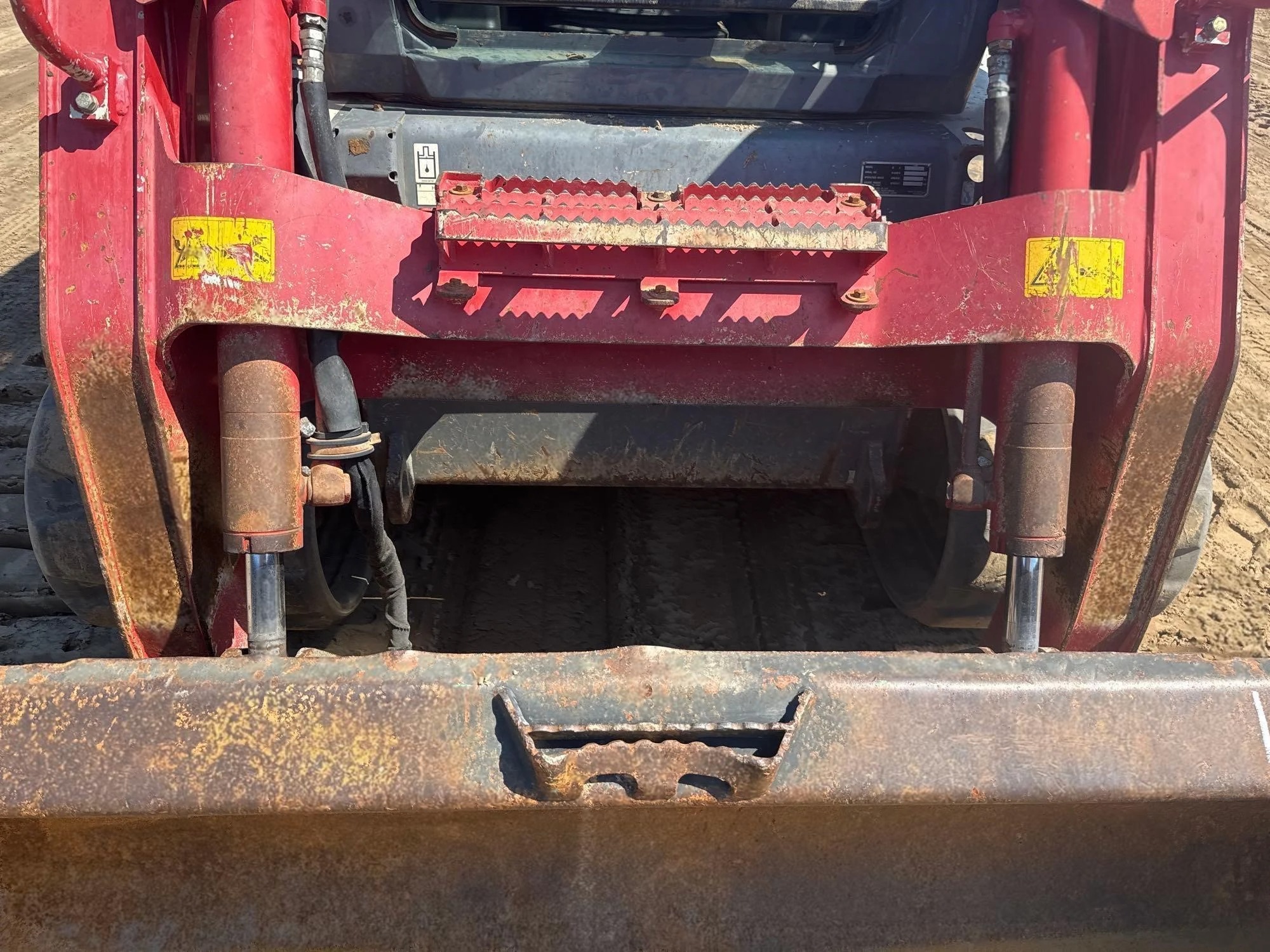

Hydraulic Quick Attach
Bucket

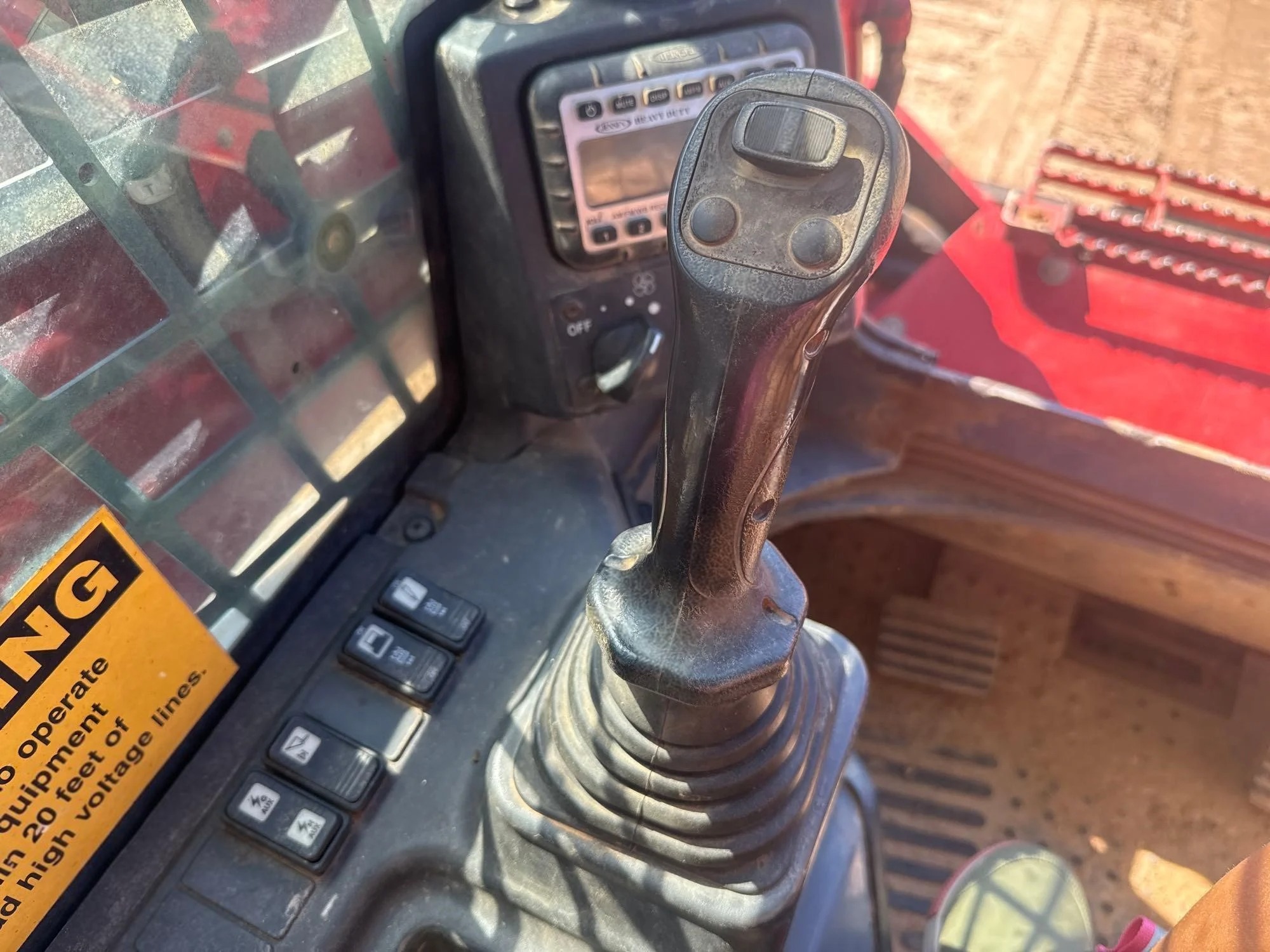

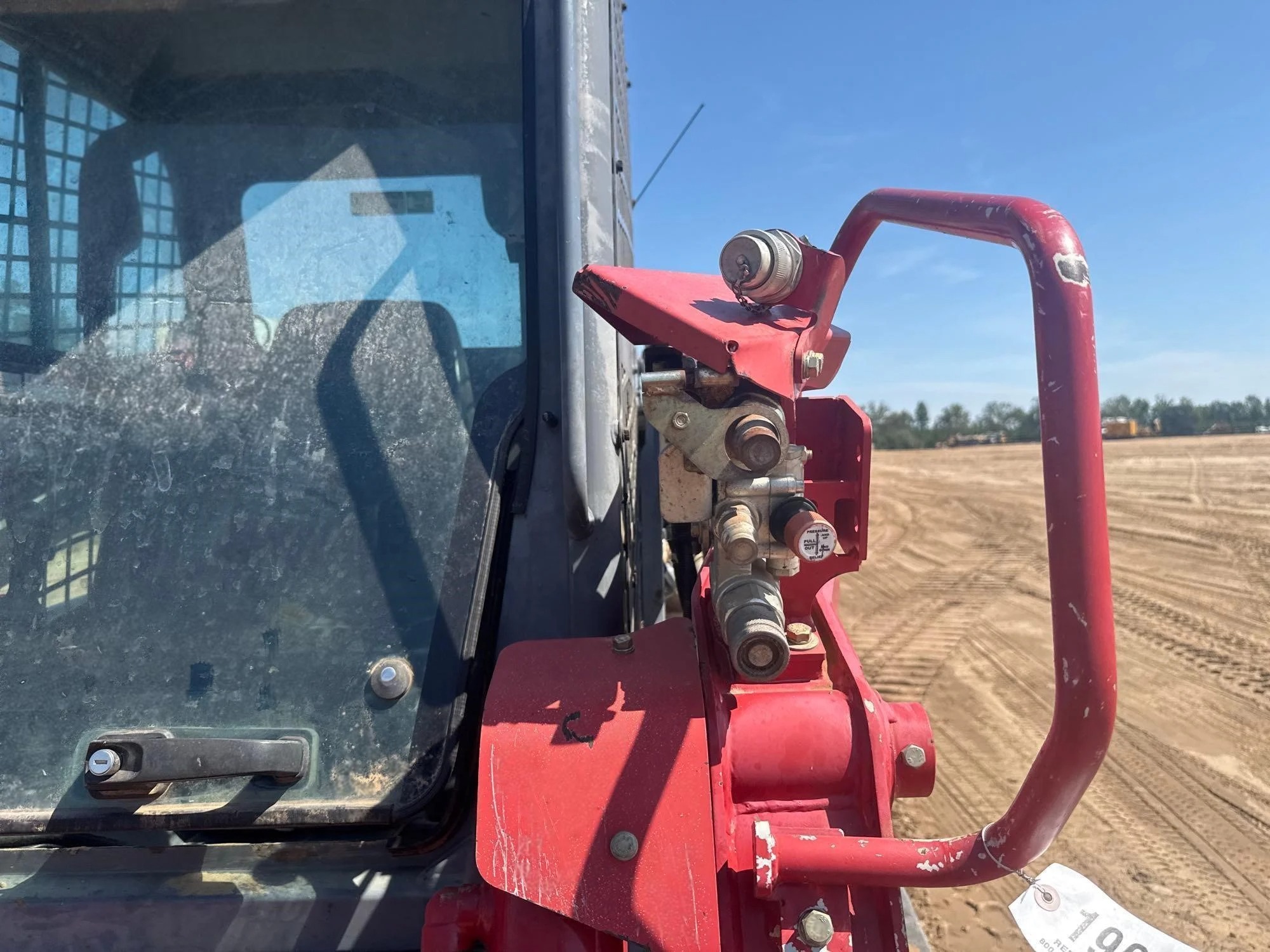

Auxiliary Valves

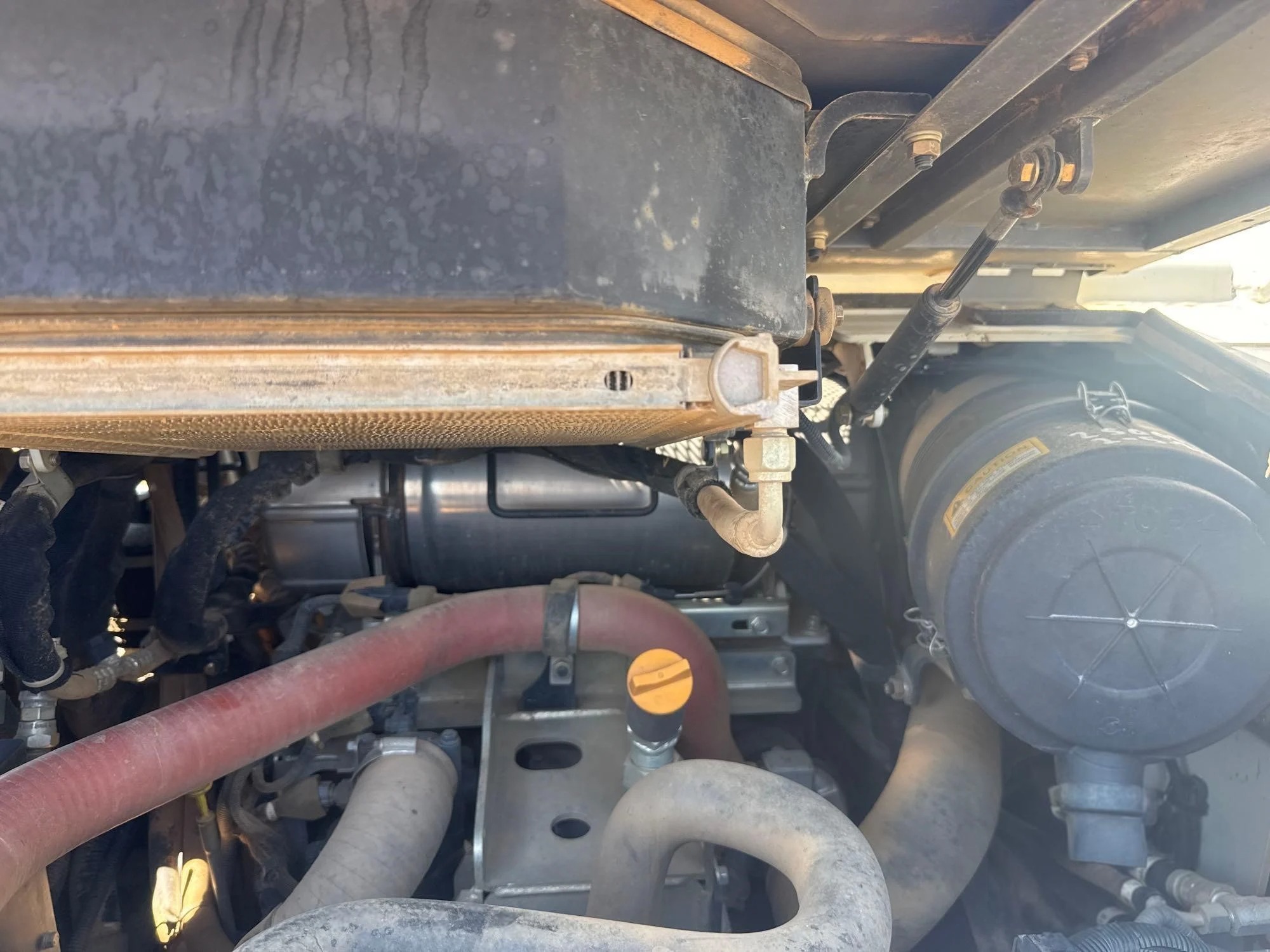

ENGINE
Make/Model Kubota/V3800TIF4B-Turbo Intercooled
Engine Displacement 230 cu in
Horsepower @ 2,400 rpm 111.3 hp
Maximum Torque @ 1,500 rpm 276 ft-lb
OPERATING PERFORMANCE
Tipping load 8,629 lb
Rated Operating Capacity 2,975 lb
Operating Load at 50% of Tipping Load 4,315 lb
Bucket Breakout Force 8,210 lb
Lift Arm Breakout Force 8,075 lb
Traction Force 14,010 lb
Ground Pressure 4.68 psi
Travel speed:
Low – 5,0 mph
High – 7.3 mph
HYDRAULIC SYSTEM
Auxiliary Flow – Primary Circuit 23.2 gpm
Hydraulic System Pressure 3,481 psi
FLUID CAPACITIES
Engine Lubrication 13.9 qt
Cooling System 19.0 qt
Fuel Tank Capacity 31.6 gal
DEF Fluid Tank Capacity 4.8 gal
Fuel Consumption (65% of Full Load) 3.8 gal/hr
Hydraulic Reservoir Capacity 13.2 gal
Hydraulic System Capacity 20.9 gal
WEIGHTS
Operating Weight 12,590 lb
| Manufacturer | |
|---|---|
| Category | Compact track loader |
| Condition | |
| Year | |
| Model | |
| Hours | 2,655 hrs |
| Horsepower | 111.3 HP |
| Engine Type | |
| Operating Weight |
Enter your details below and our sales specialist will email the complete mechanical inspection packet to you shortly.
