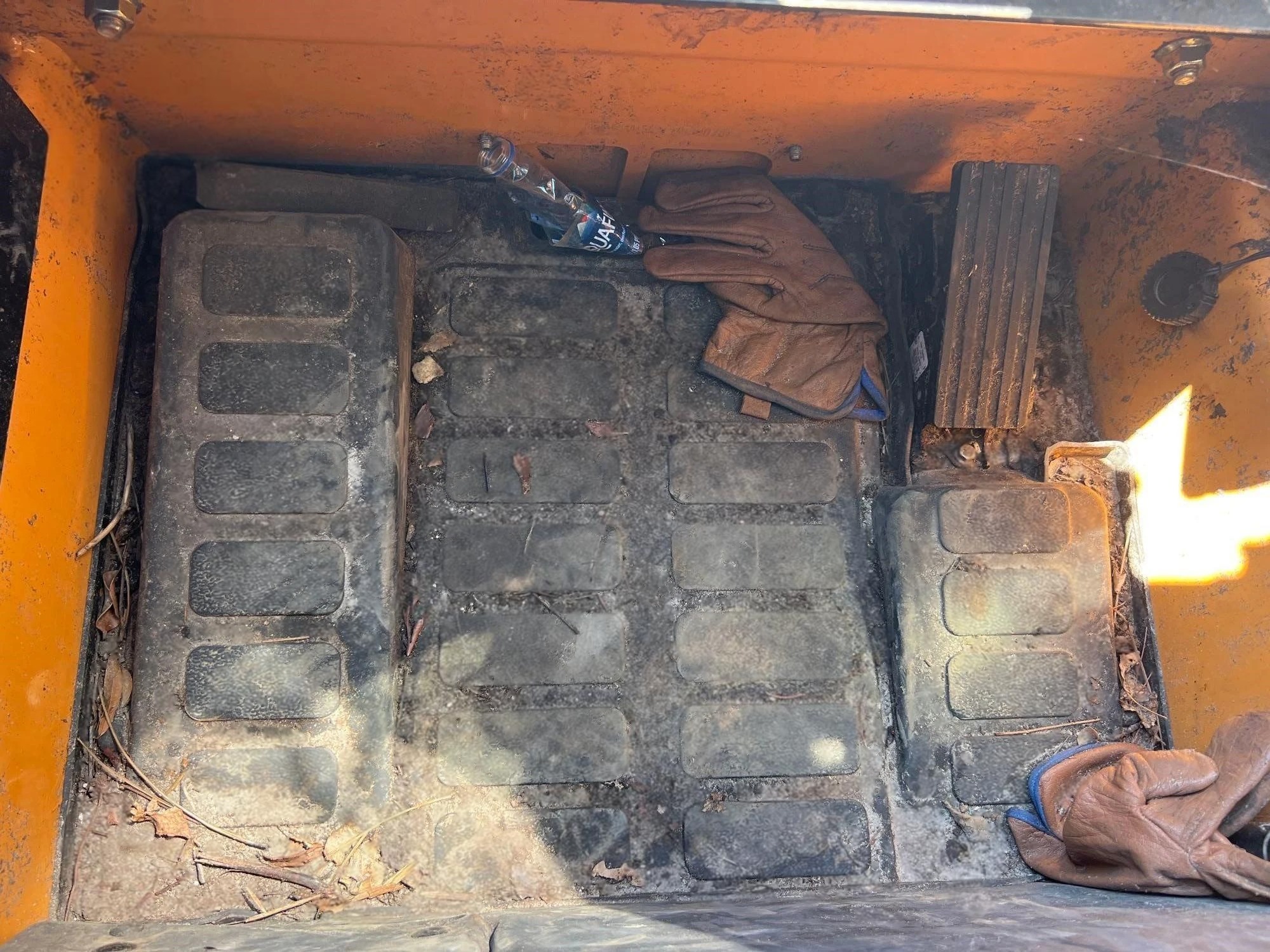

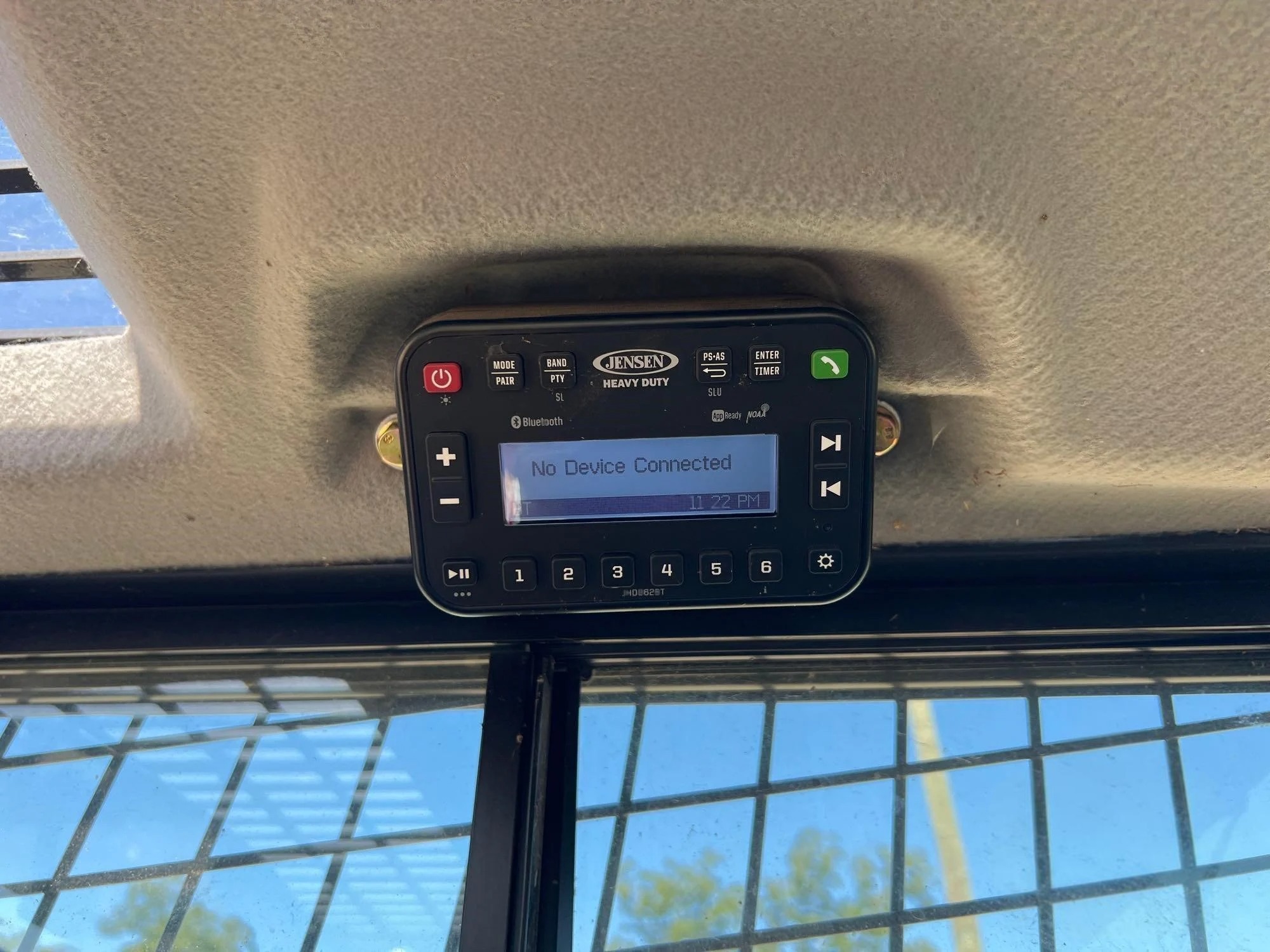

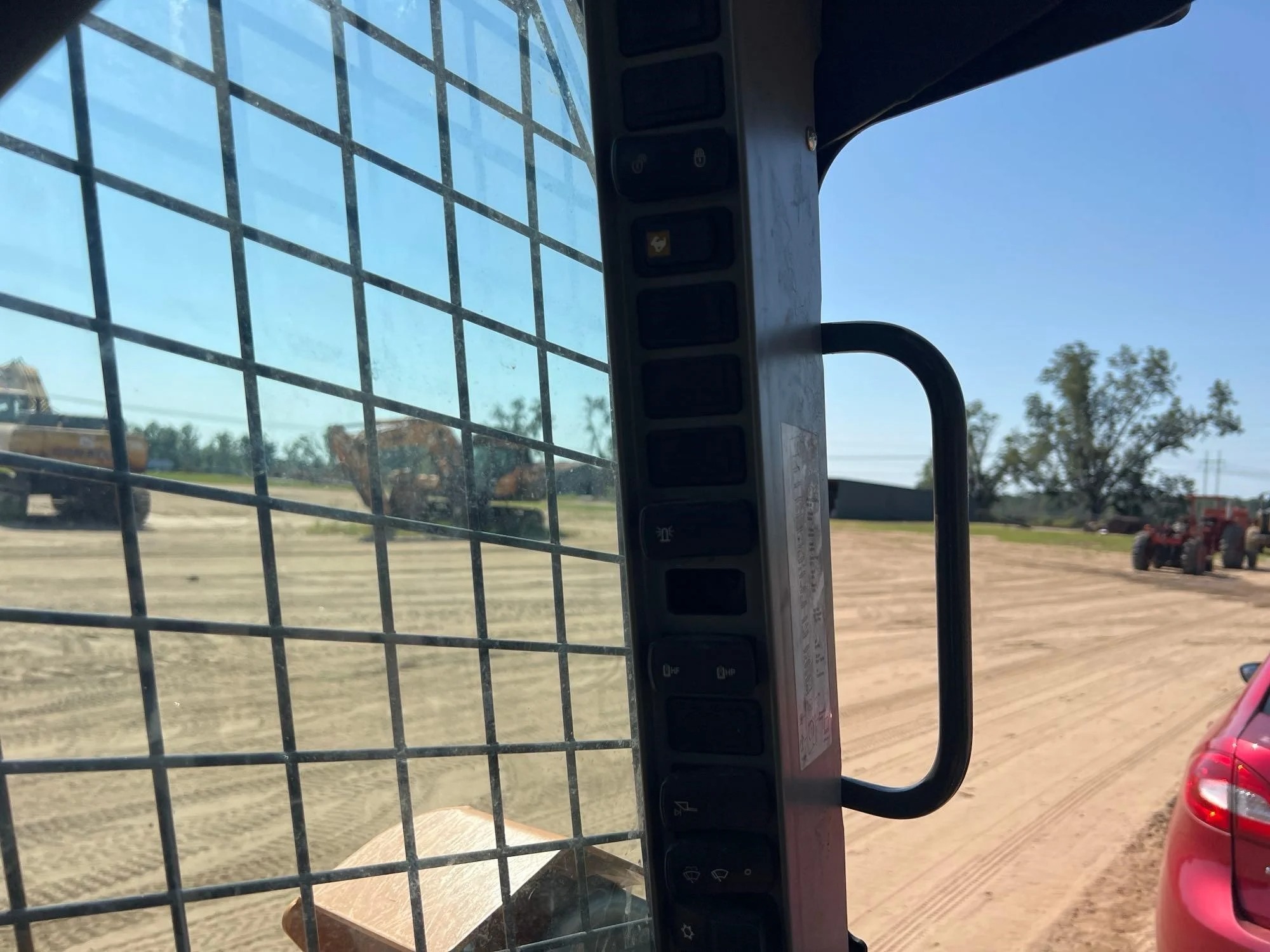

EROPS (Enclosed Cab)
High Flow

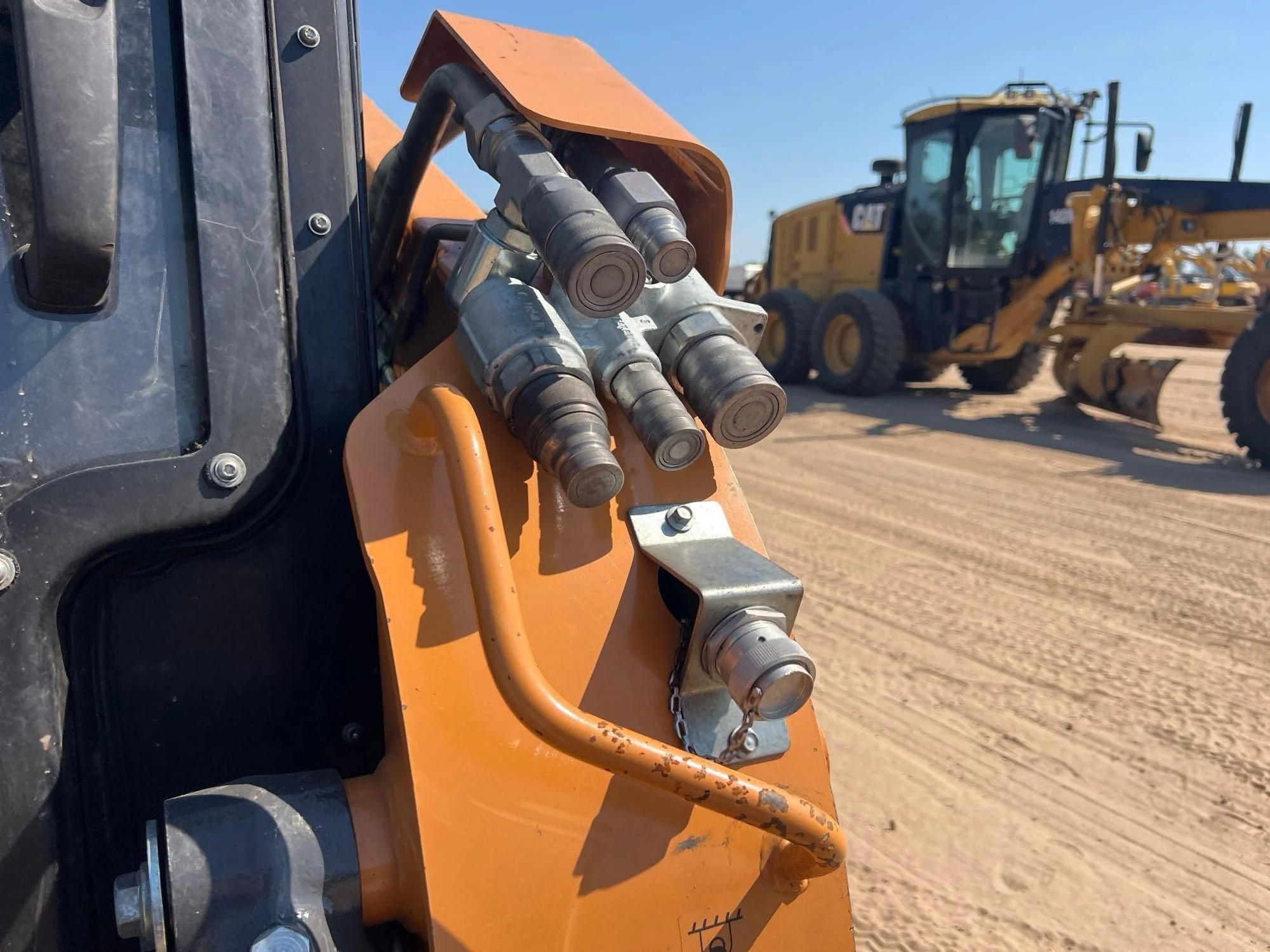

Aux Valves

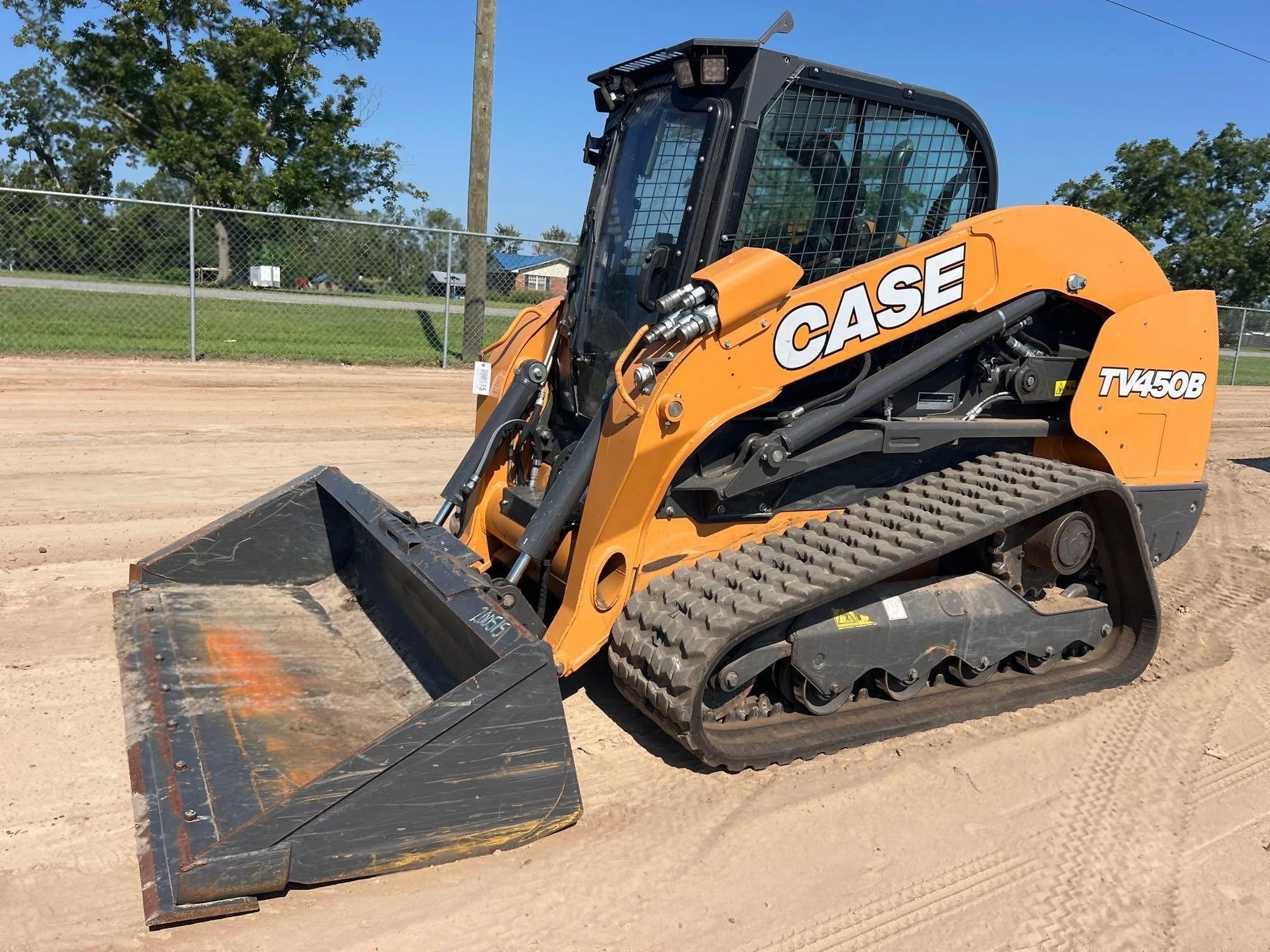

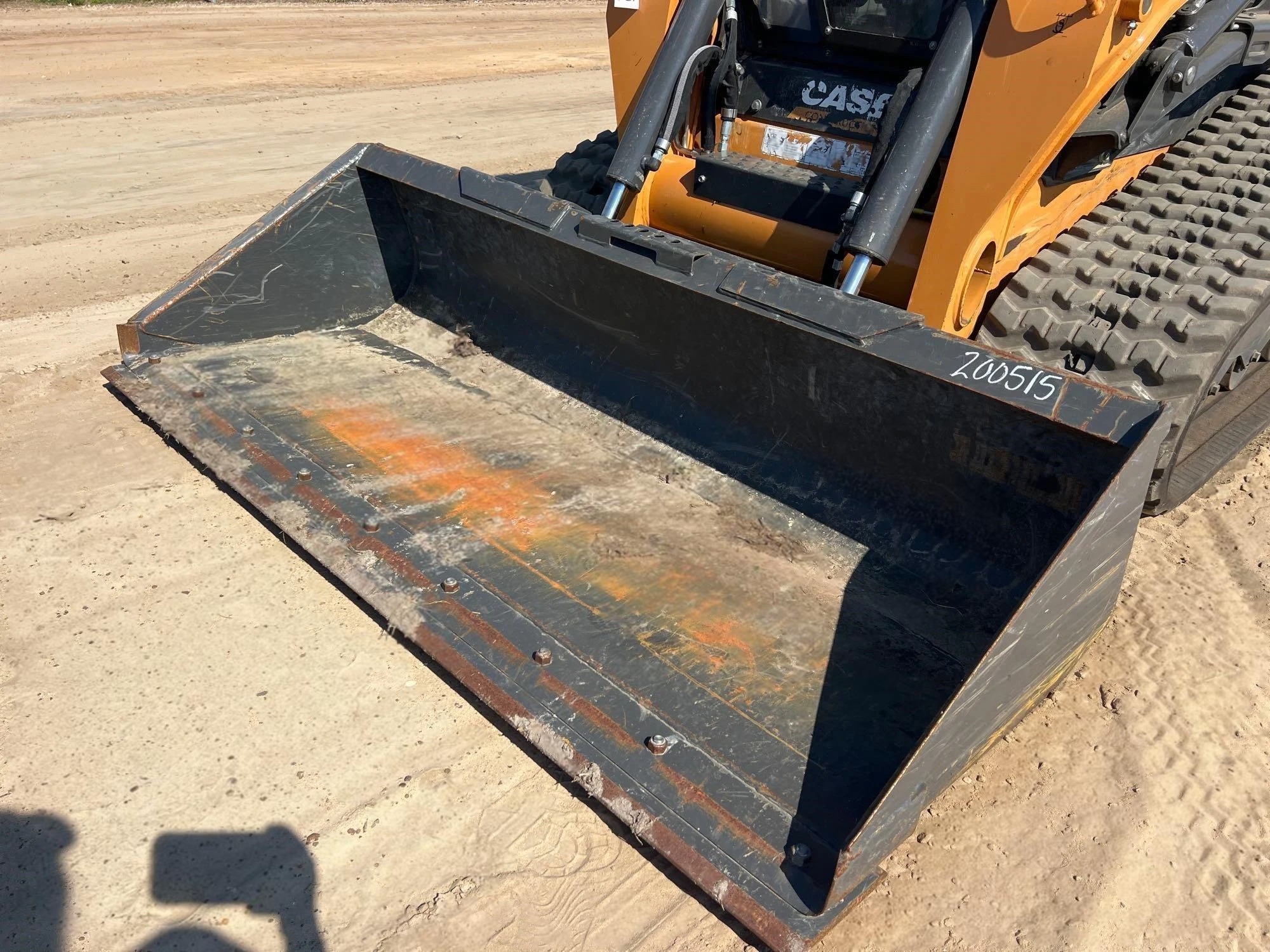

Hydraulic Quick Attach + Bucket

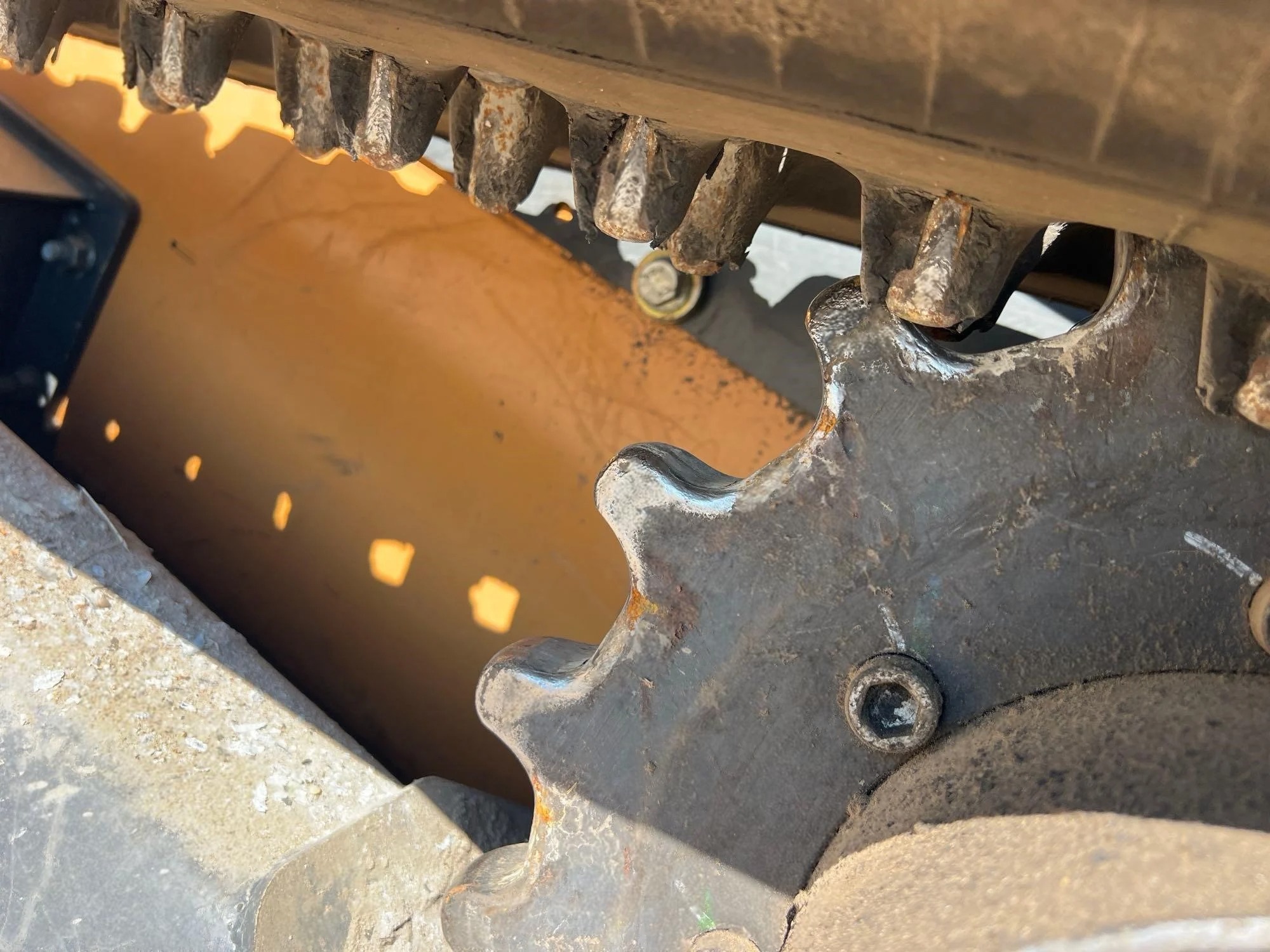

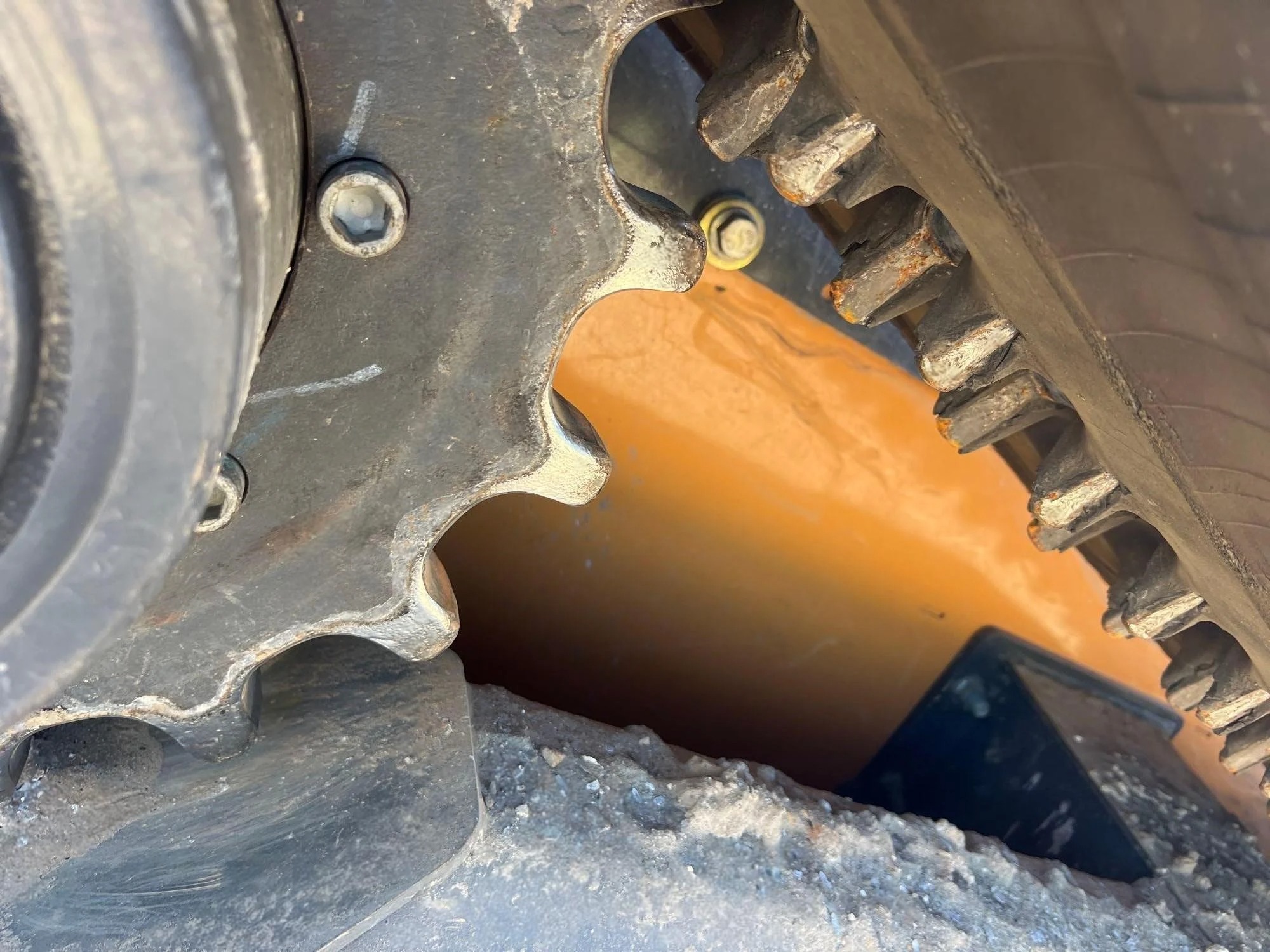

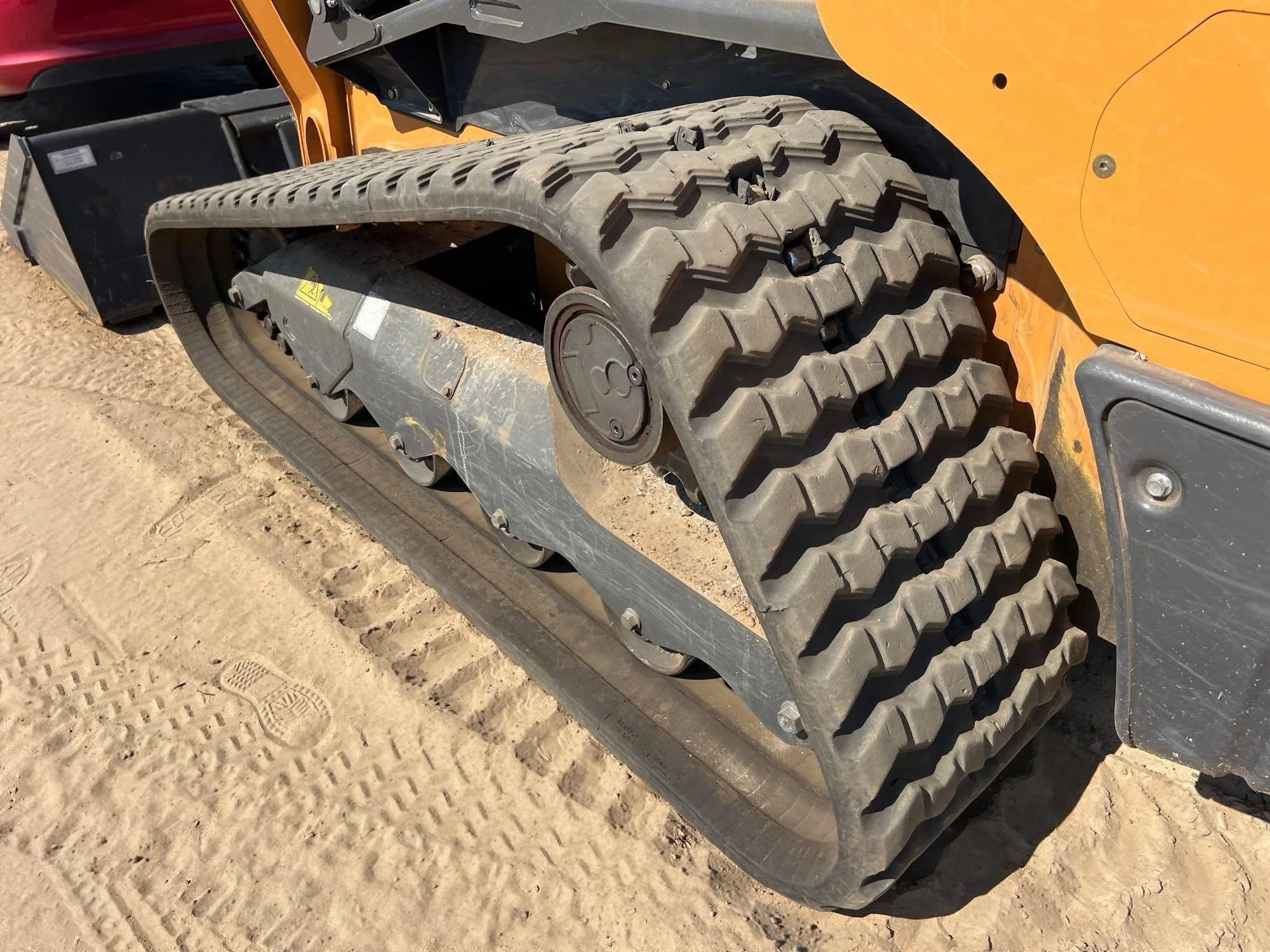

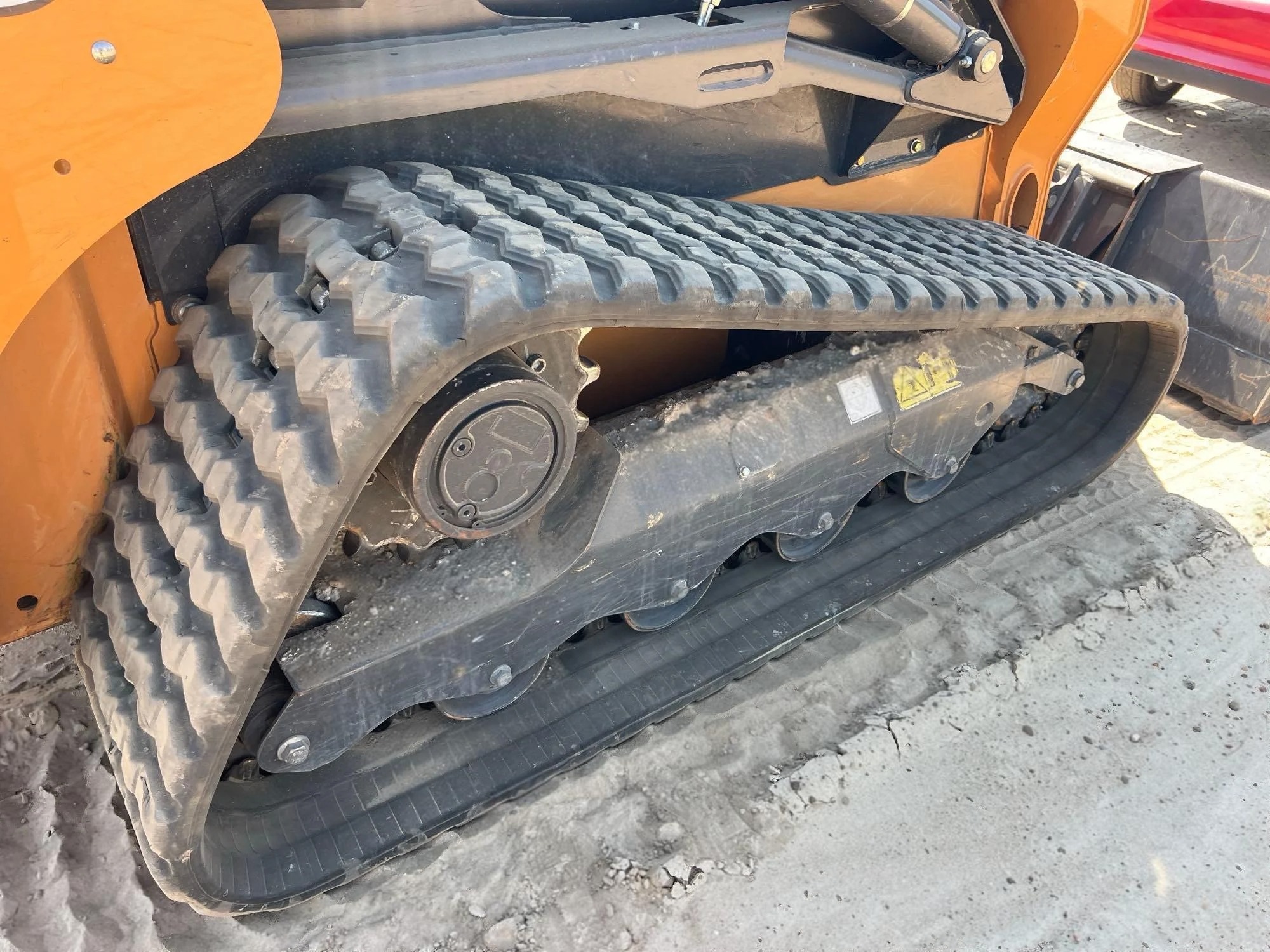

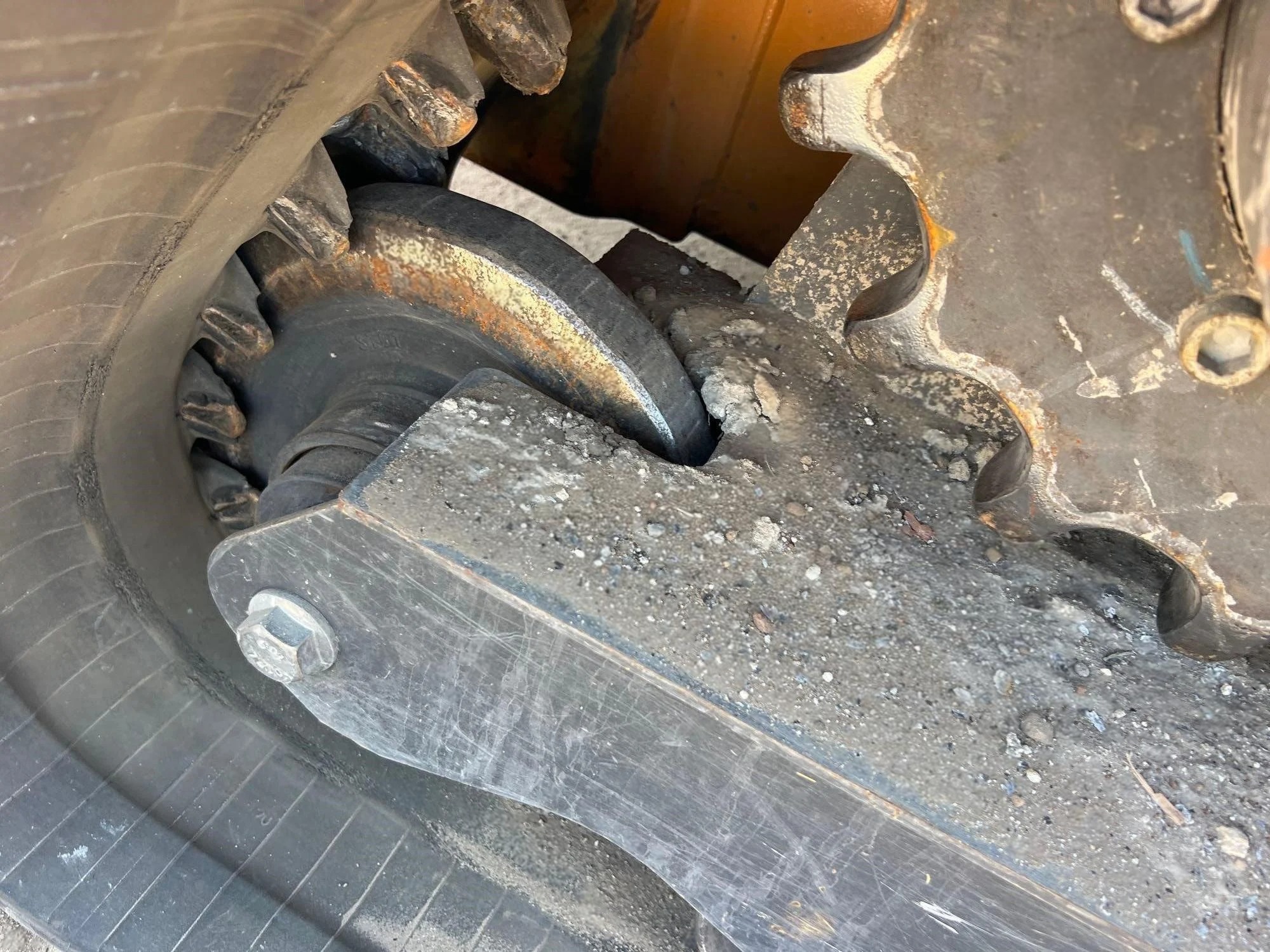

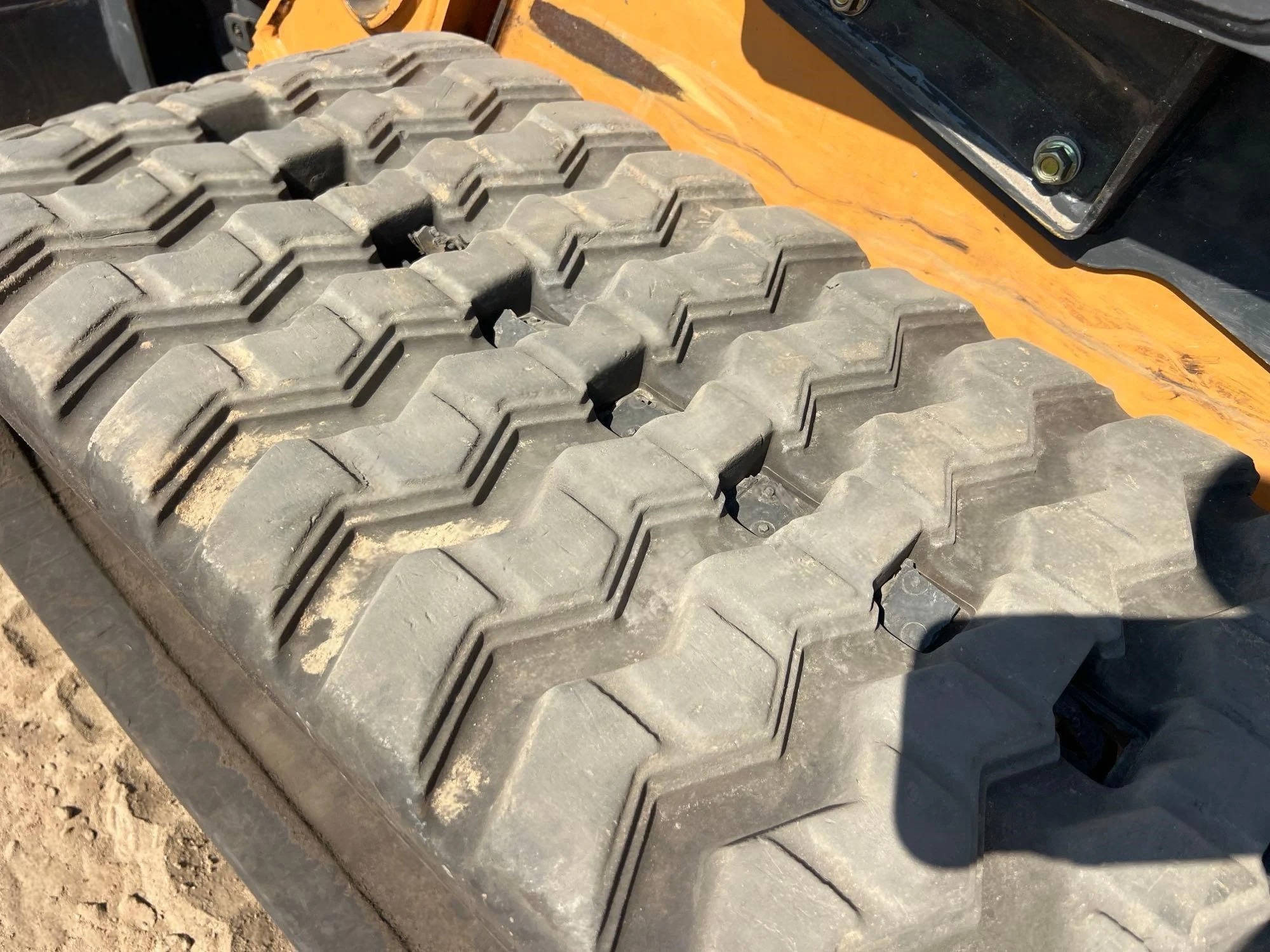

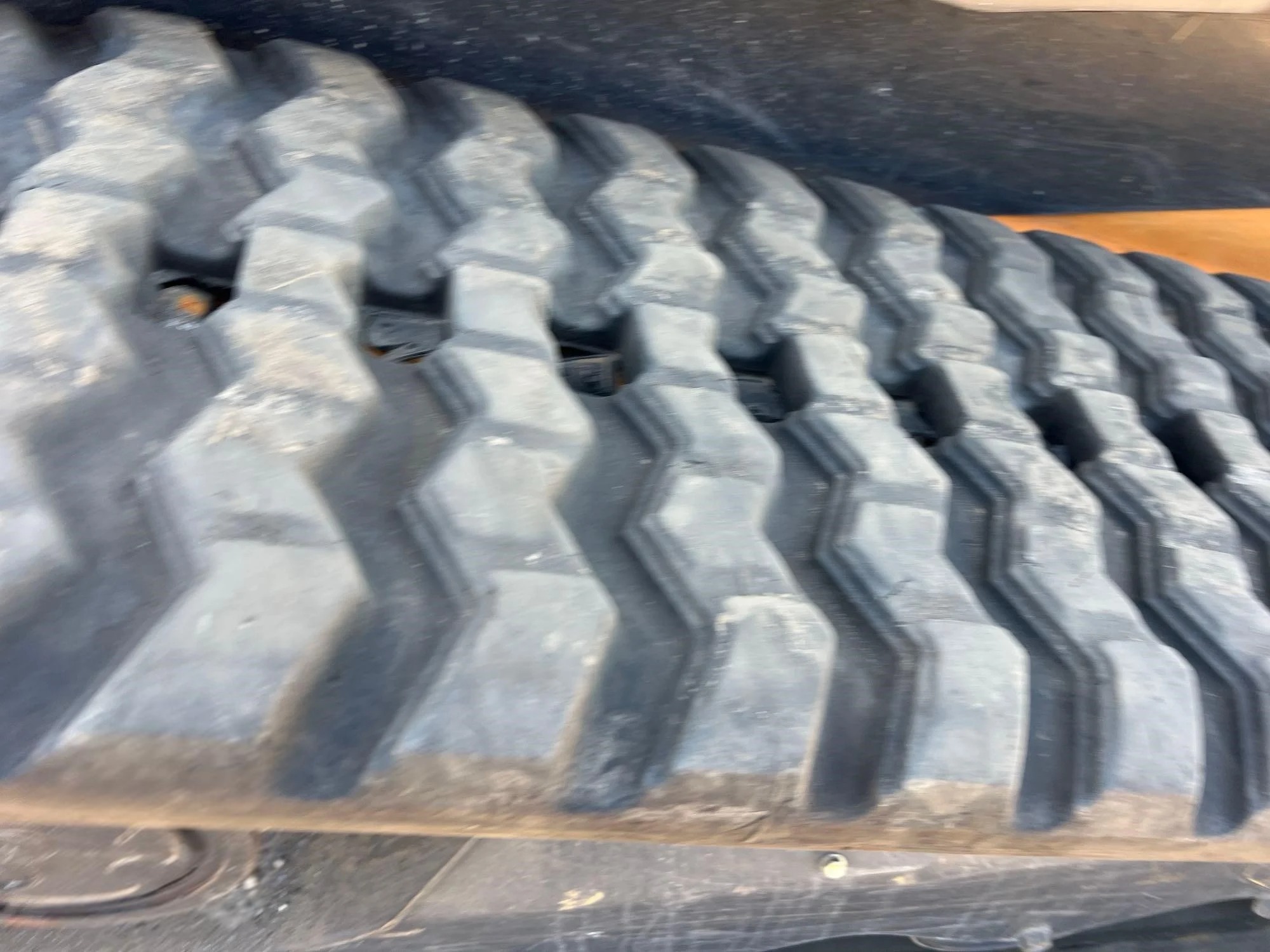

Rubber Tracks

ENGINE

Model F5BFL413D*C009
Emissions Certification Tier 4 Final
Type Diesel 4-stroke, Turbo, D.I.
Cylinders 4
Bore/Stroke 3.9 × 4.3 in
Displacement 207 in.cu.
Engine speeds RPM
High idle – no load 2,500 +/- 25
Rated – full load 2,500
Low idle 1,150 +/- 25
Horsepower @ 2,500 RPM – SAE J1349:
Gross 90 hp
Net 84 hp
Peak torque @ 1,400 RPM 282 lb·ft

DRIVETRAIN

Travel speed
Low range 5.5 mph
High Range 8 mph

HYDRAULICS

Displacement:
Standard aux. 2.23 in.cu.
High-flow aux. 1.42 in.cu.
Standard flow @ rated engine RPM:
@ 100% efficiency 24.2 gpm
Optional high-flow @ rated engine RPM:
@ 100% efficiency 39.5 gpm
Enhanced high-flow @ rated engine RPM:
@ 100% efficiency 35 gpm

CAPACITIES

Fuel Tank 25.5 gal
engine oil w/ filter 8.9 qt
Hydraulic system
Reservoir 6 gal
Total 11.9 gal
Diesel Exhaust FLUID Tank 2.8 gal

PERFORMANCE

Rated operating capacity
35% of tipping load 3,150 lb
50% of tipping load 4,500 lb
w/ additional counterweight 4,700 lb
Tipping load 9,000 lb
Breakout forces @ 3,150 psi
Bucket Cylinders 9,188 lb
Lift cylinders – hydraulic limit 7,773 lb

WEIGHTS

Operating weight 10,610 lbs
