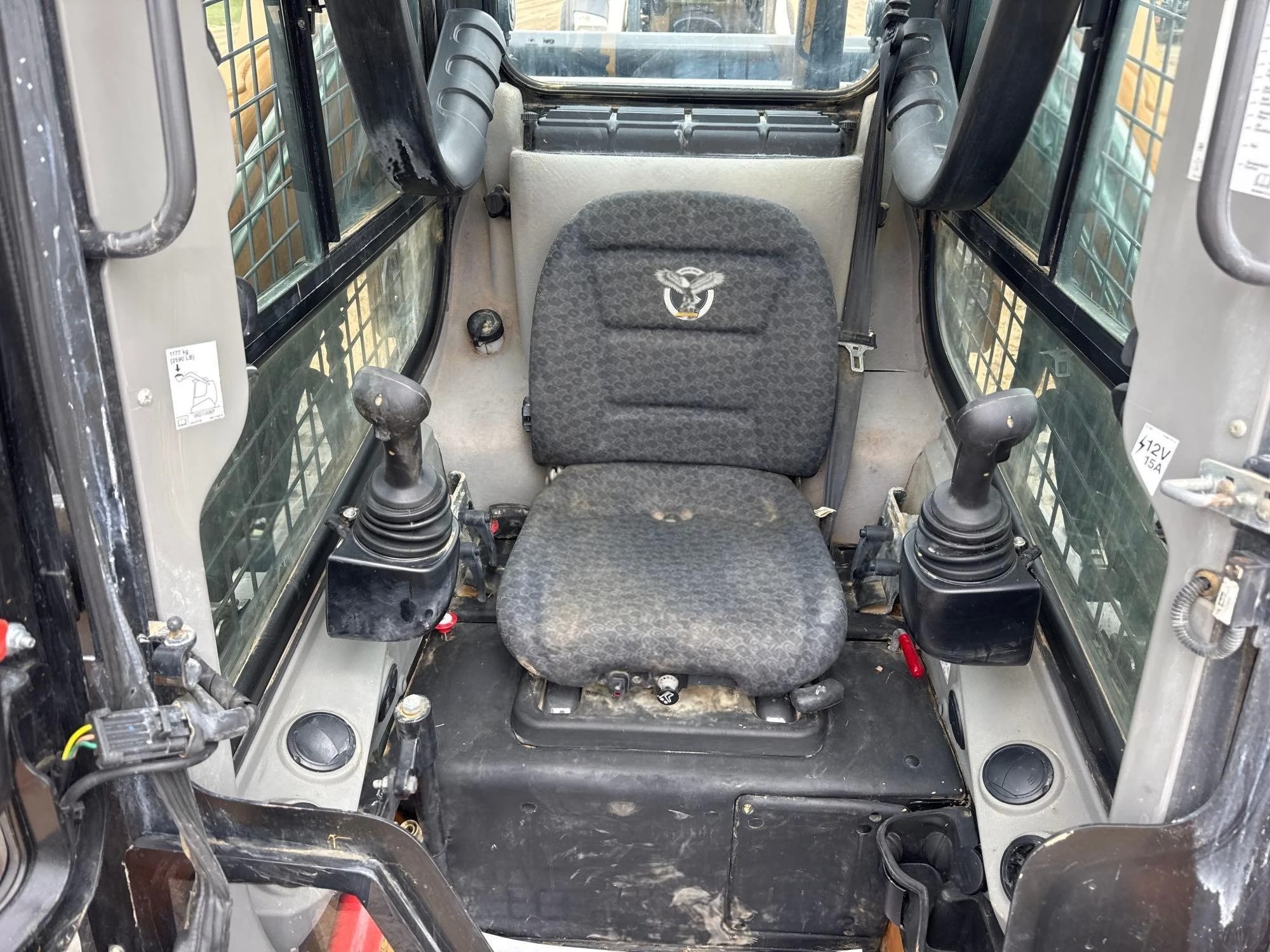

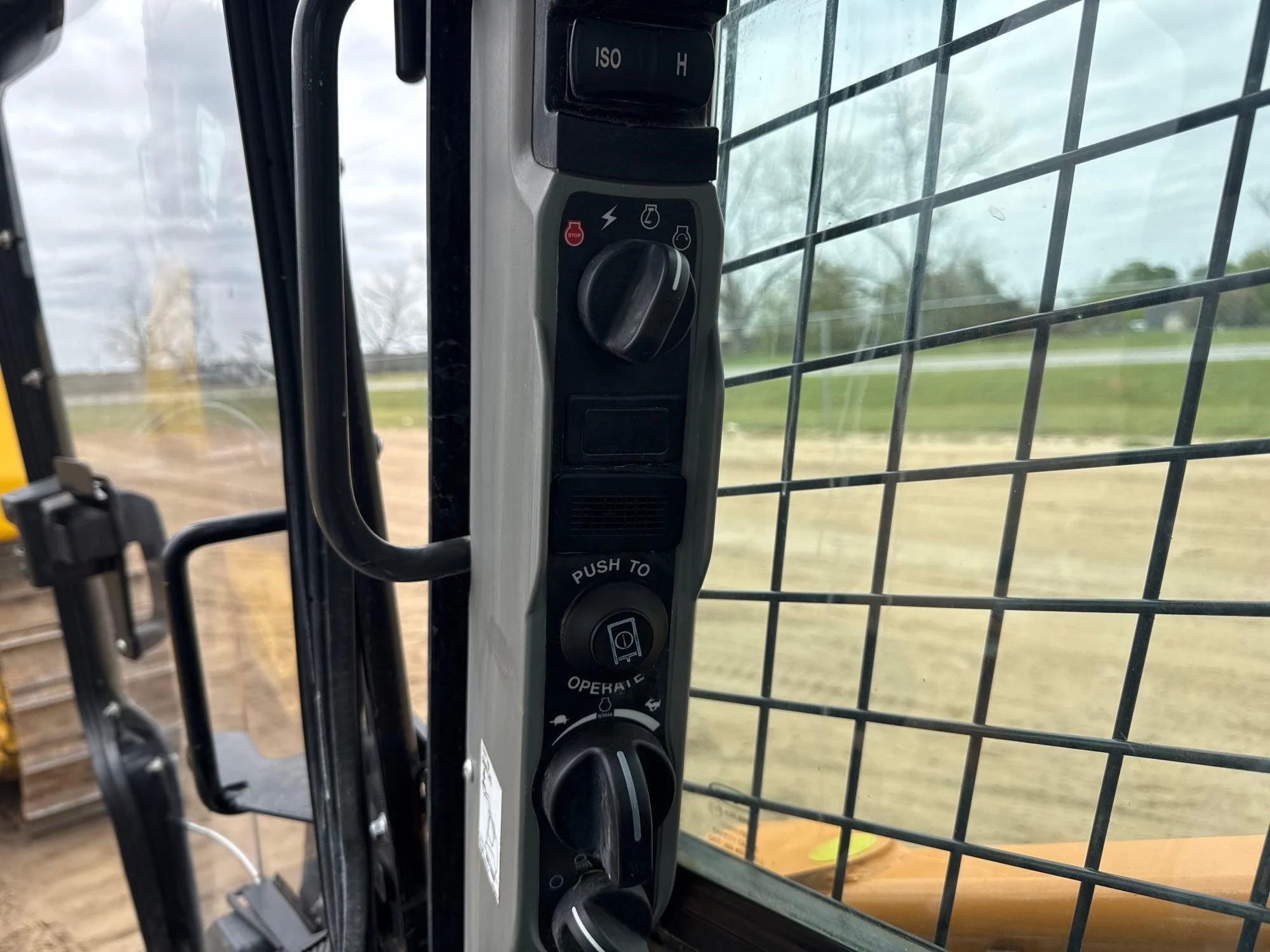

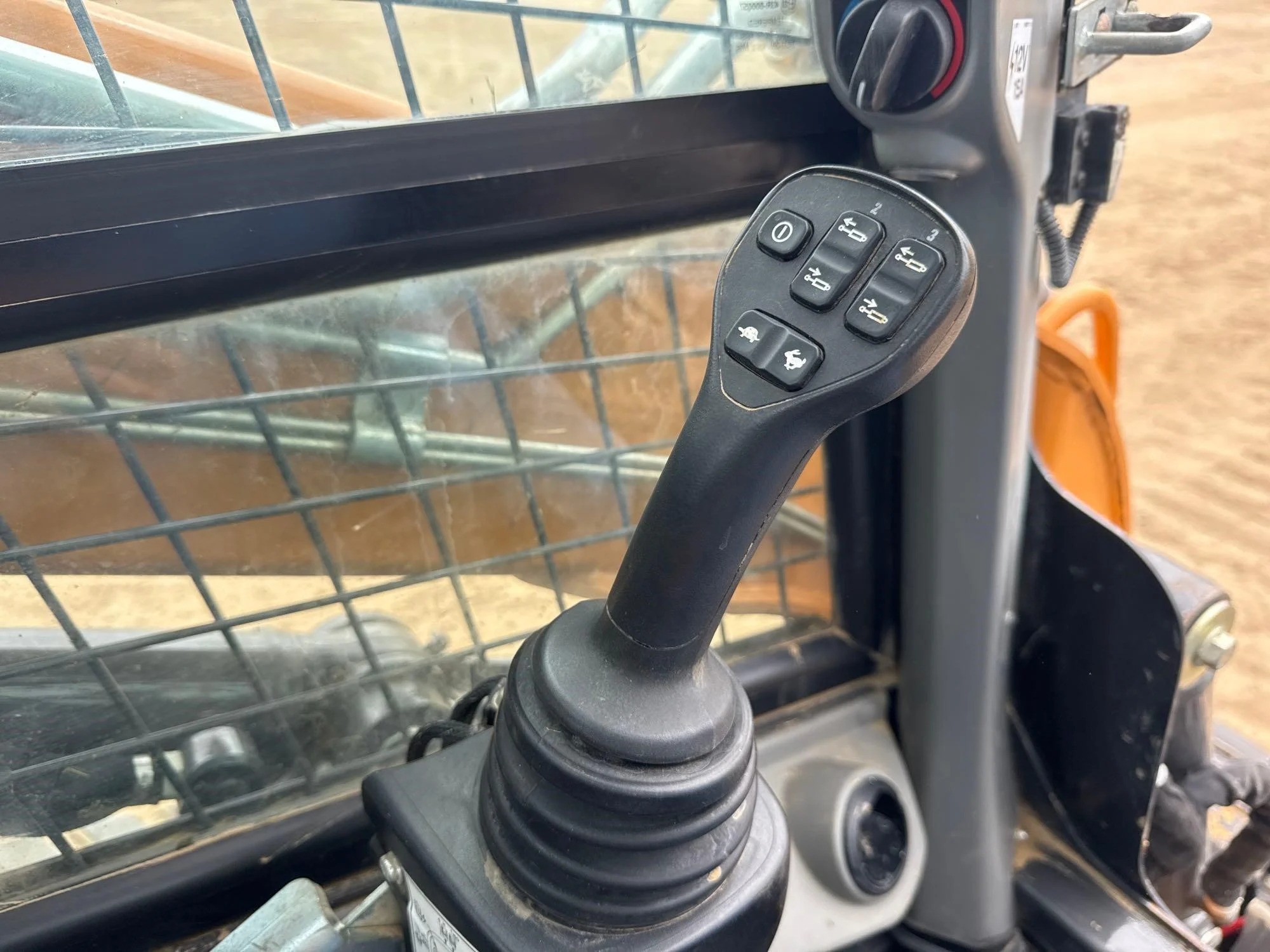

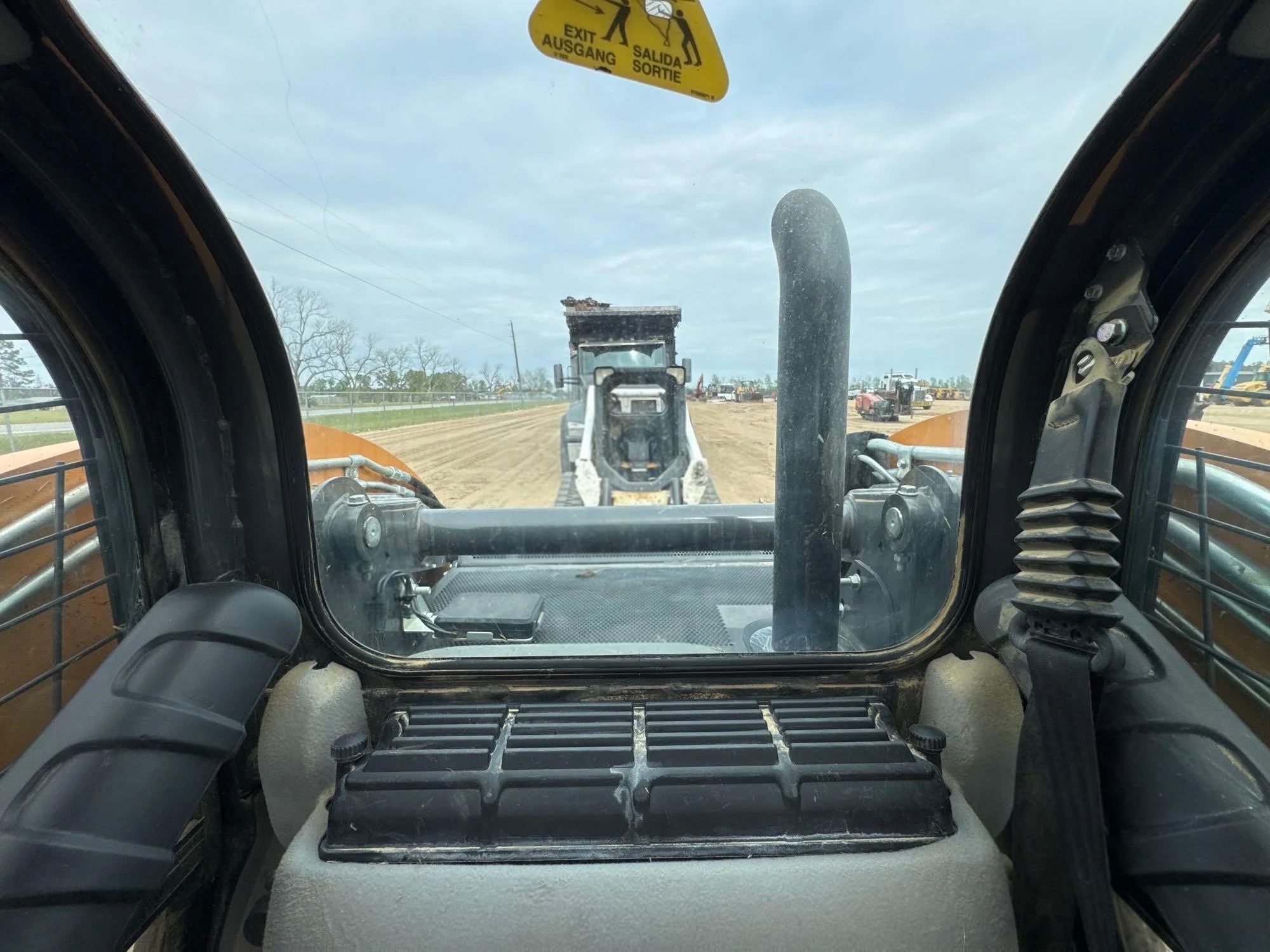

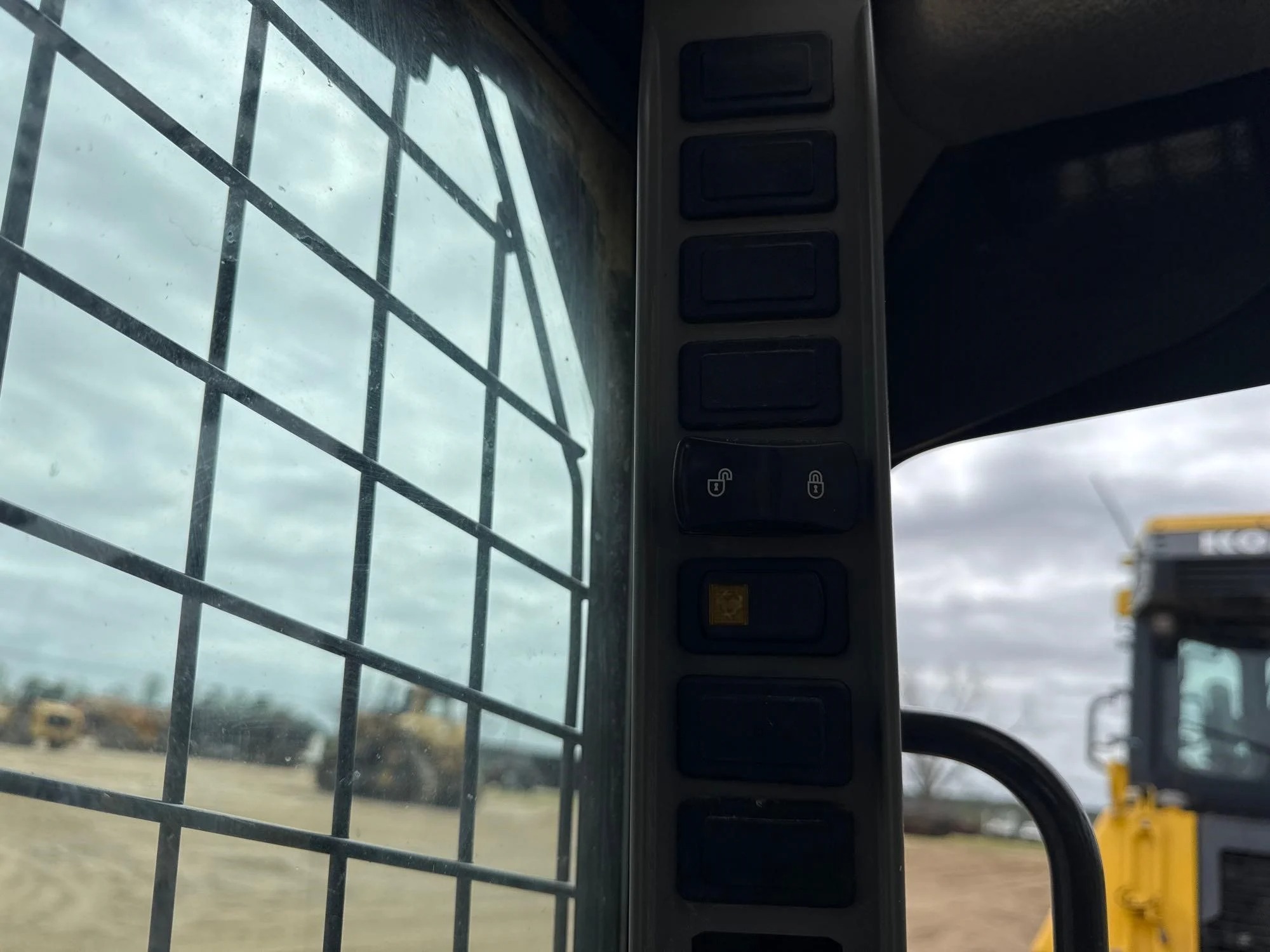

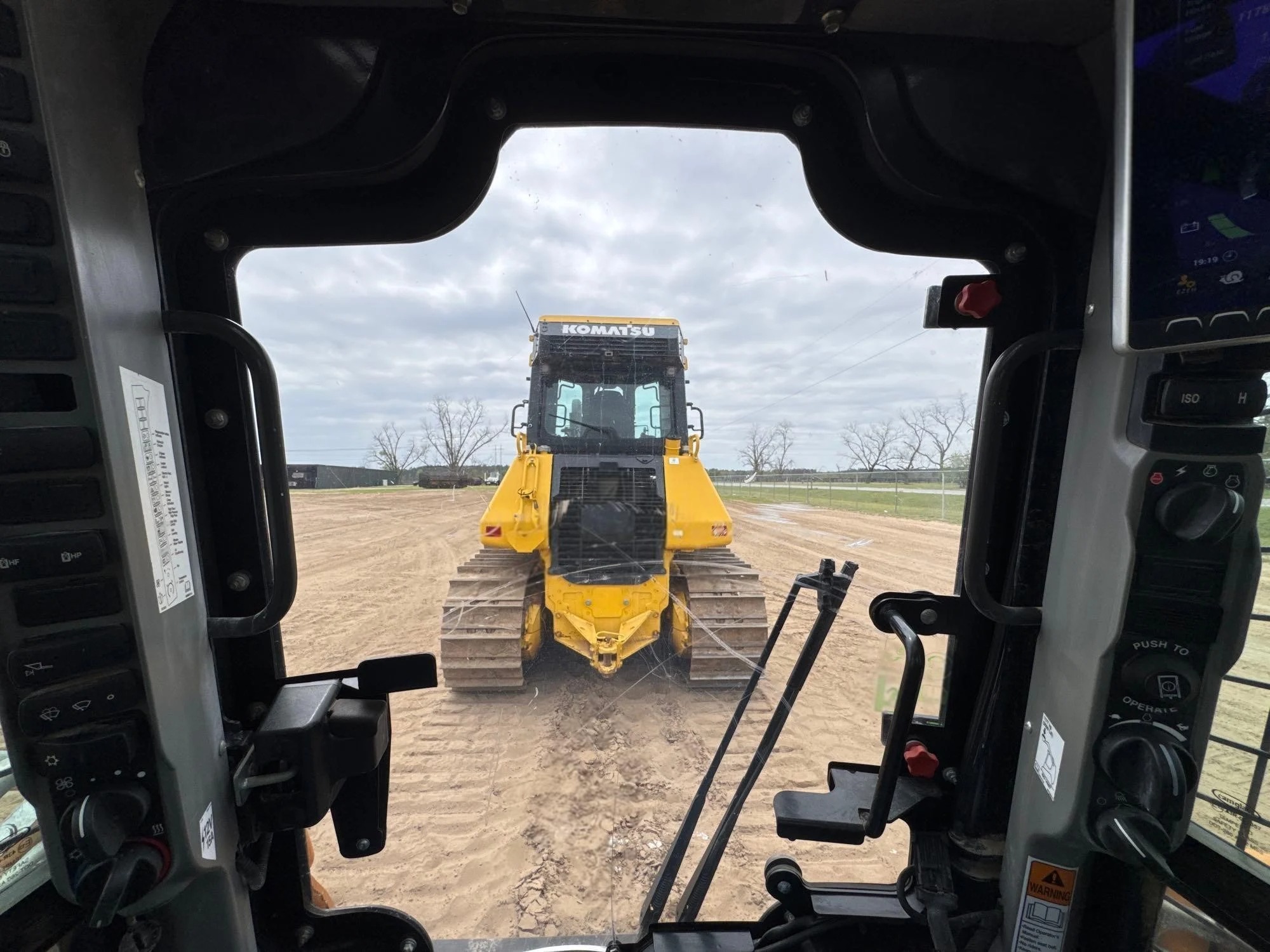

EROPS (enclosed cab)
High Flow
Hydraulic Quick Attach

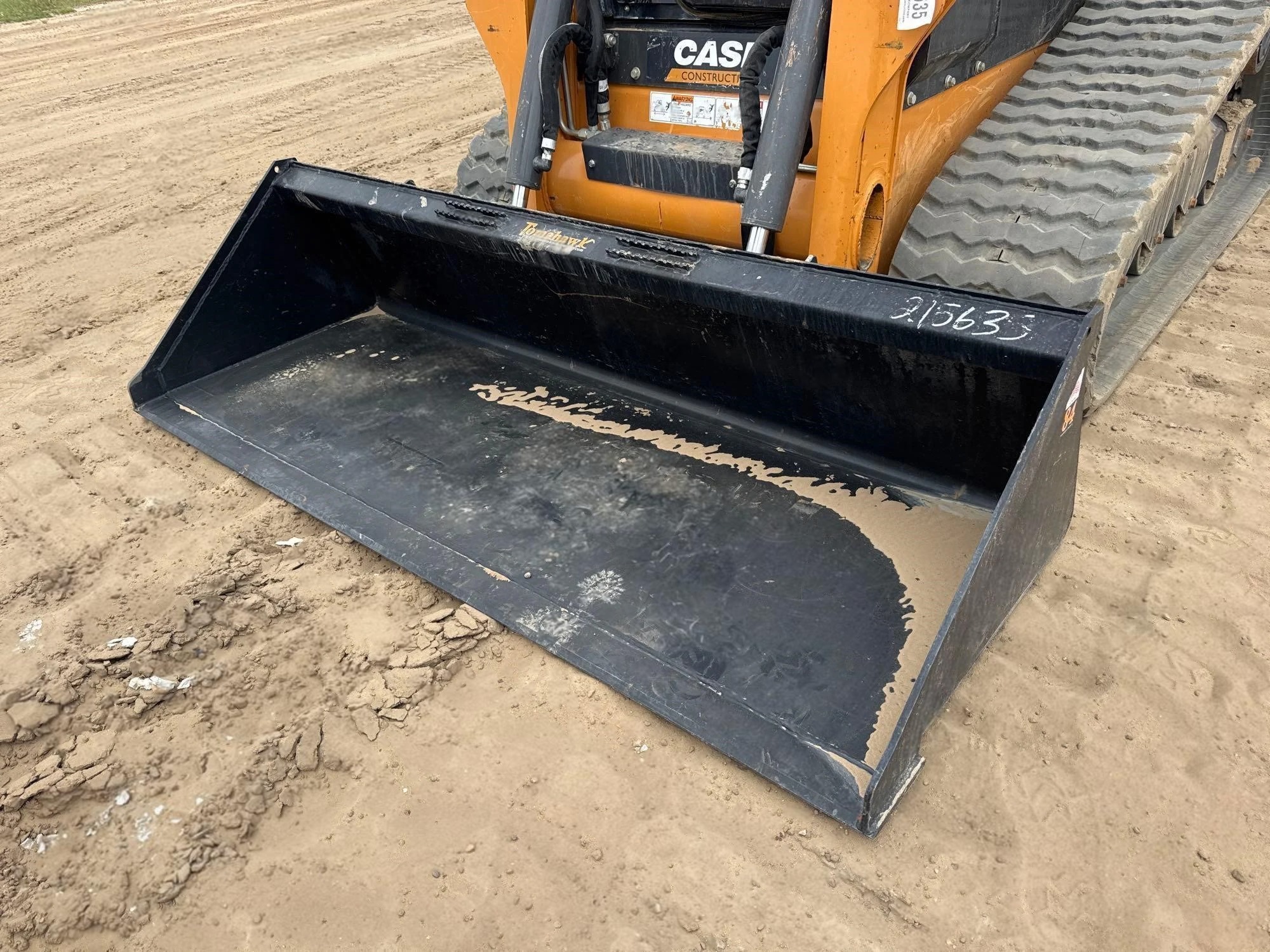

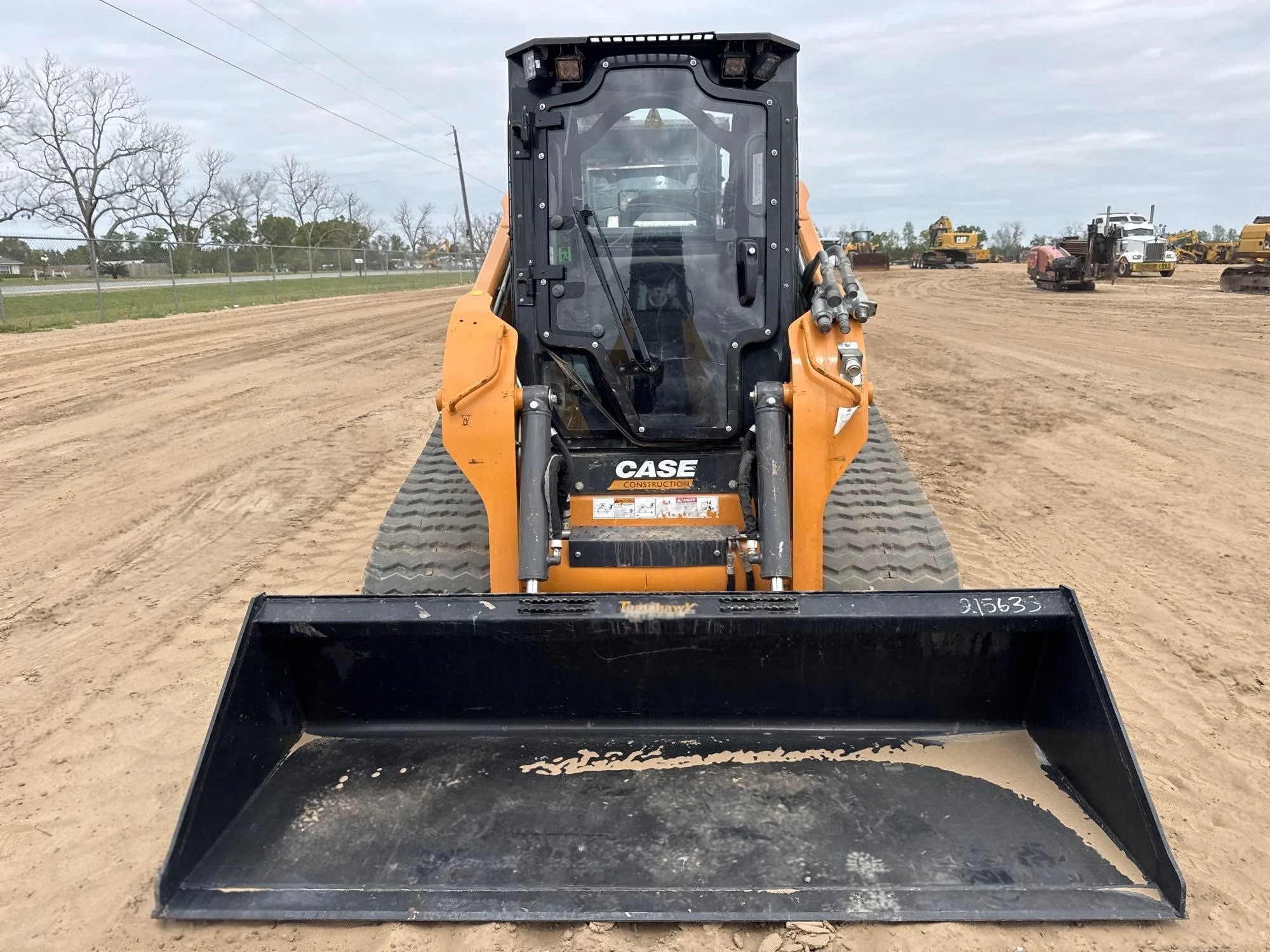

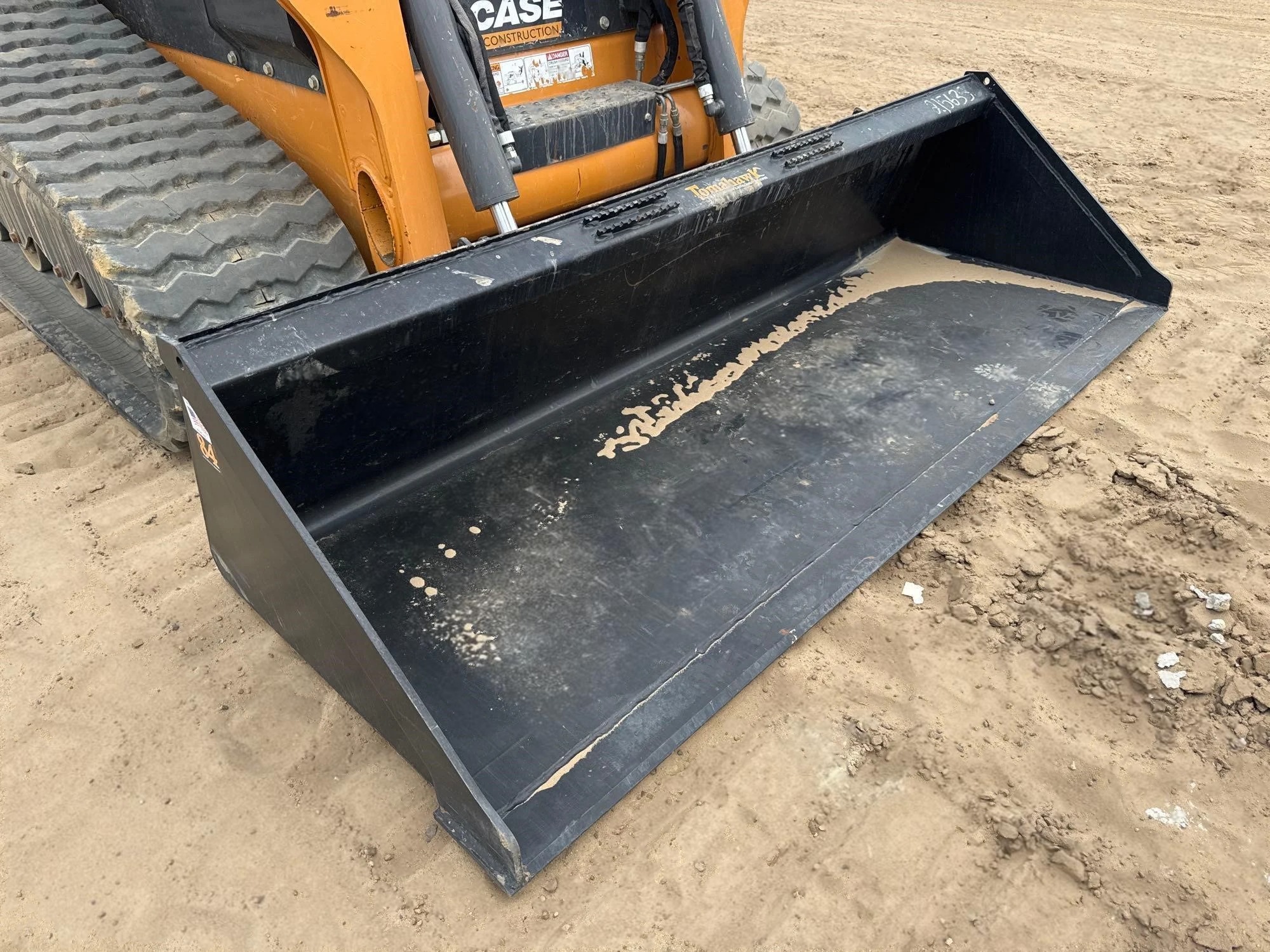

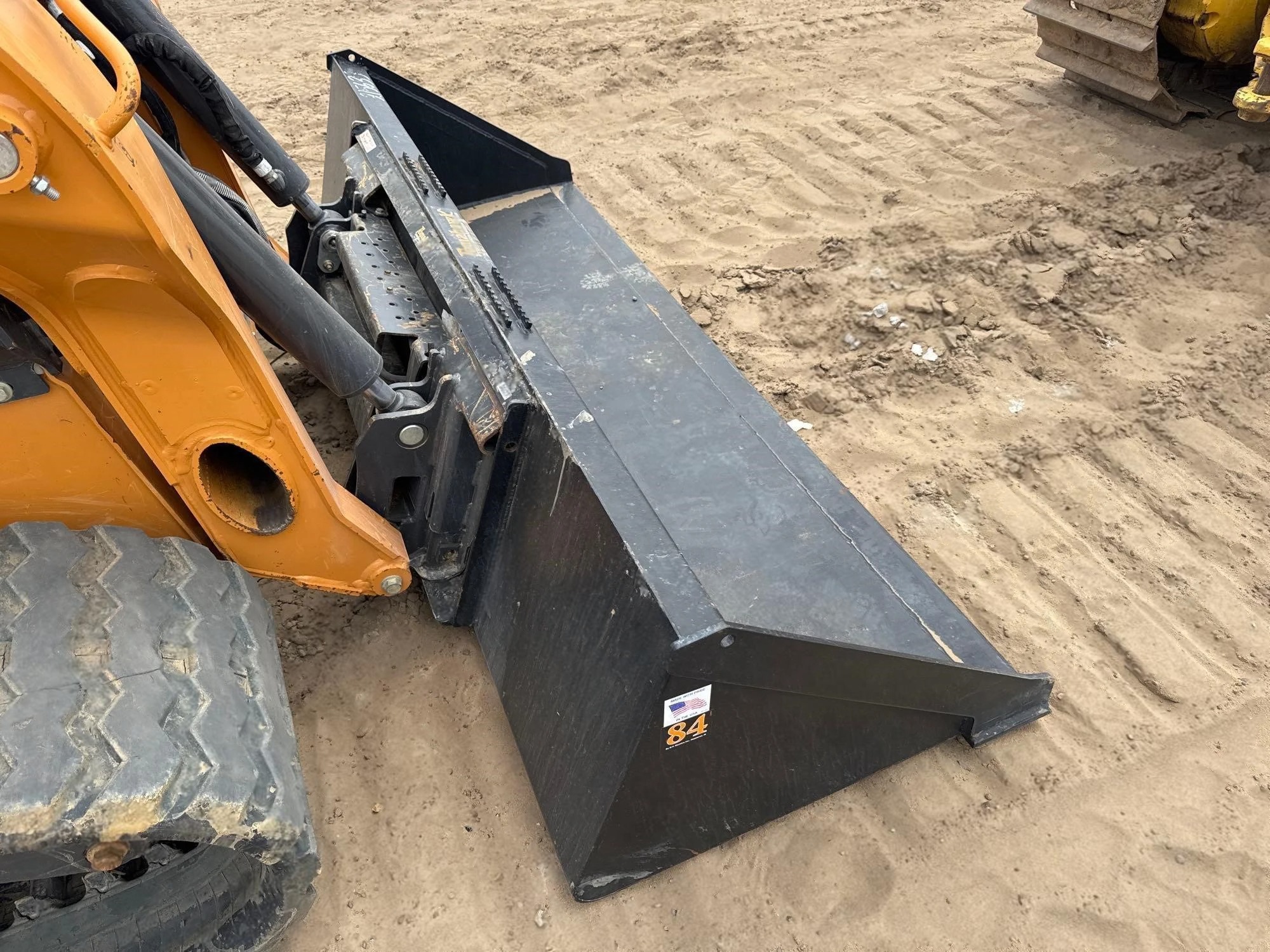

Bucket
Aux Valves

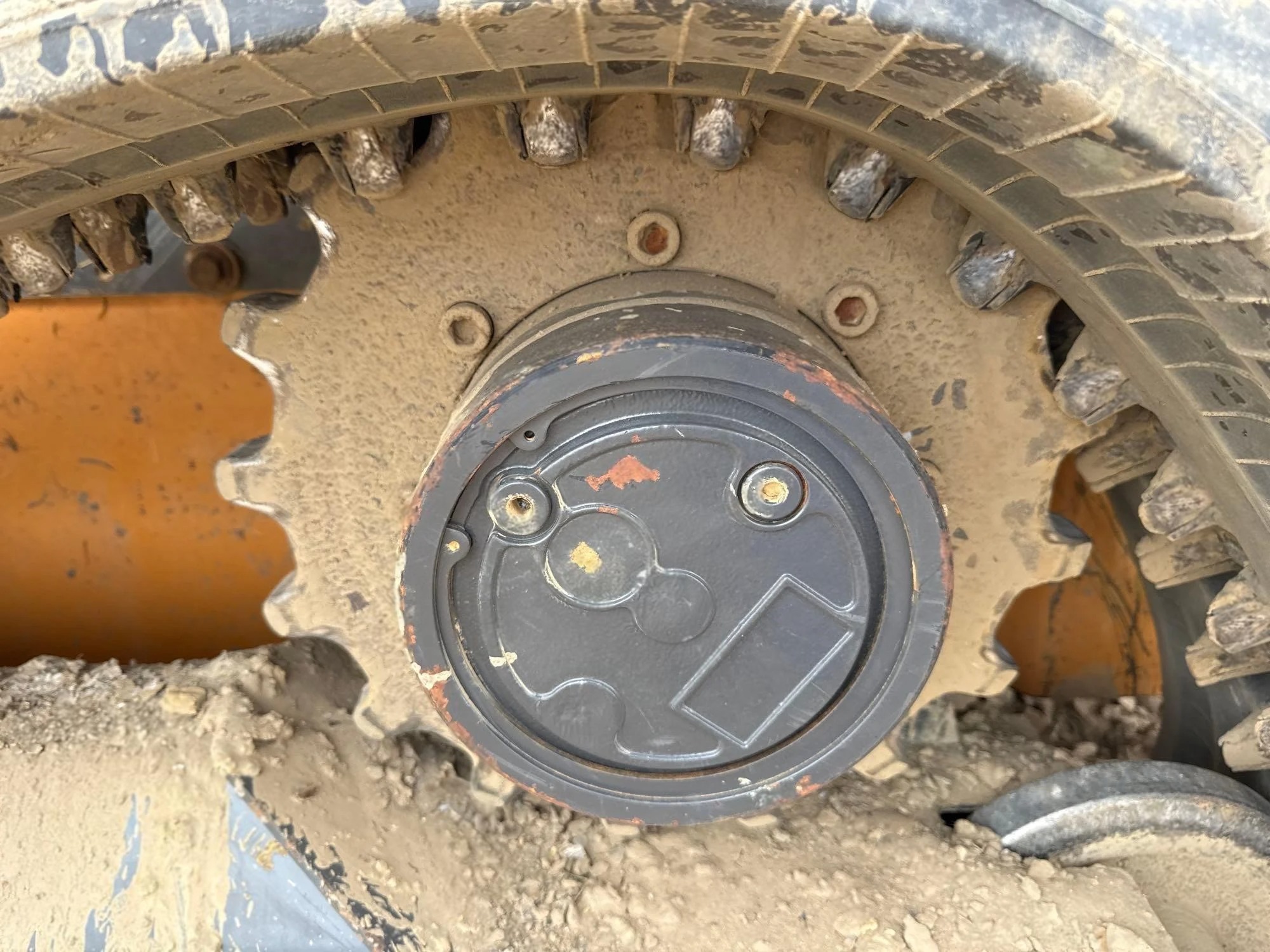

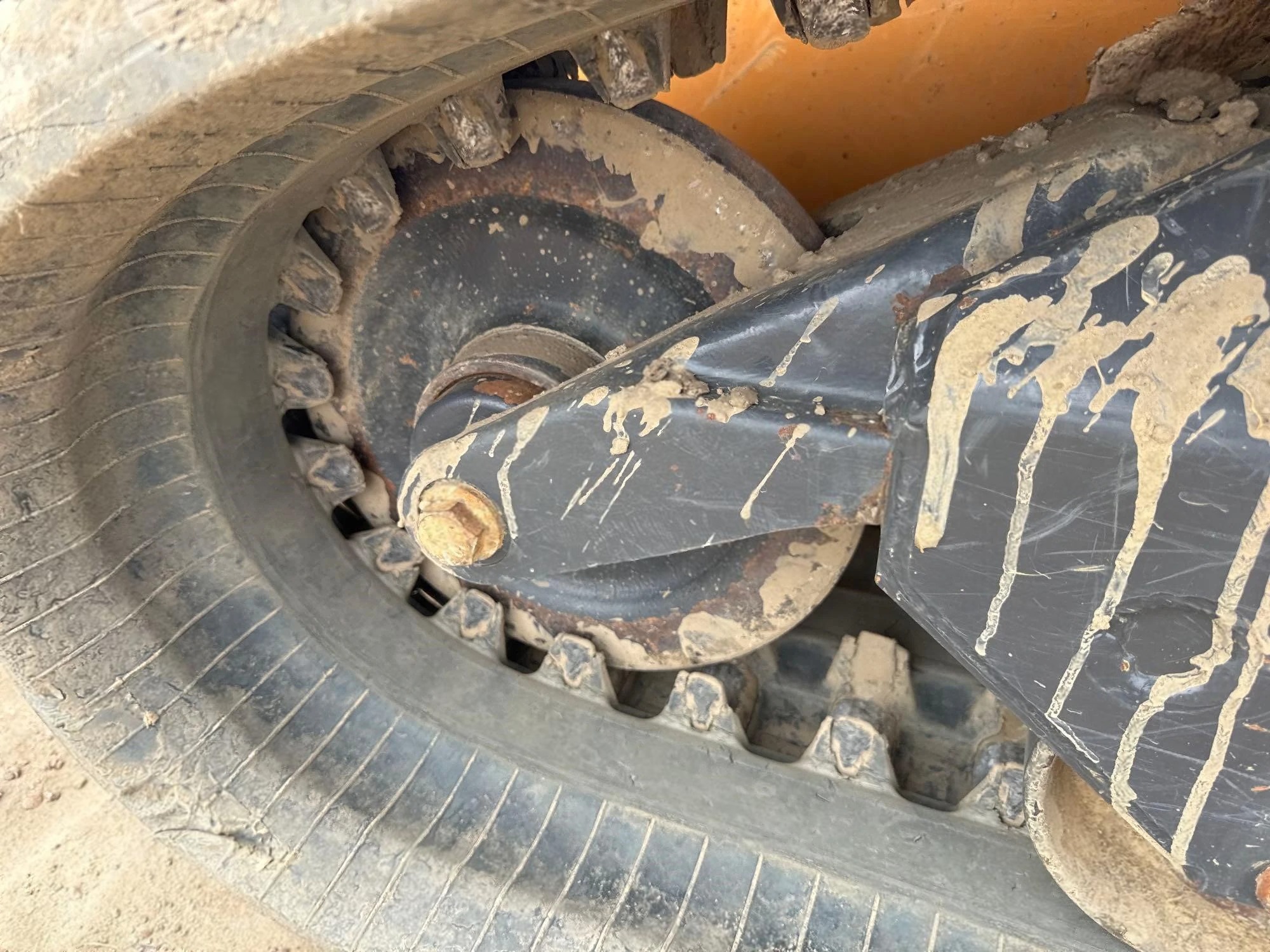

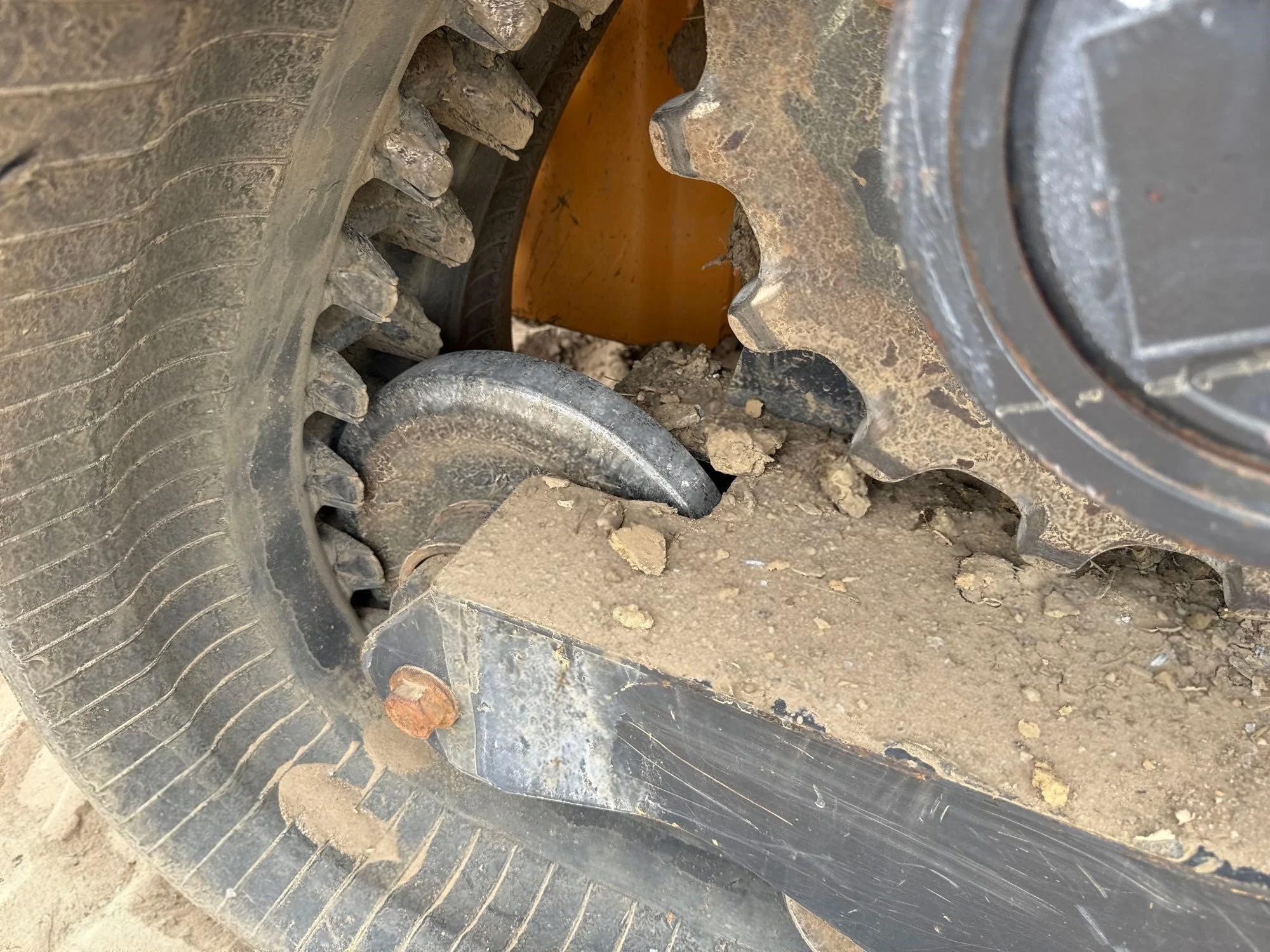

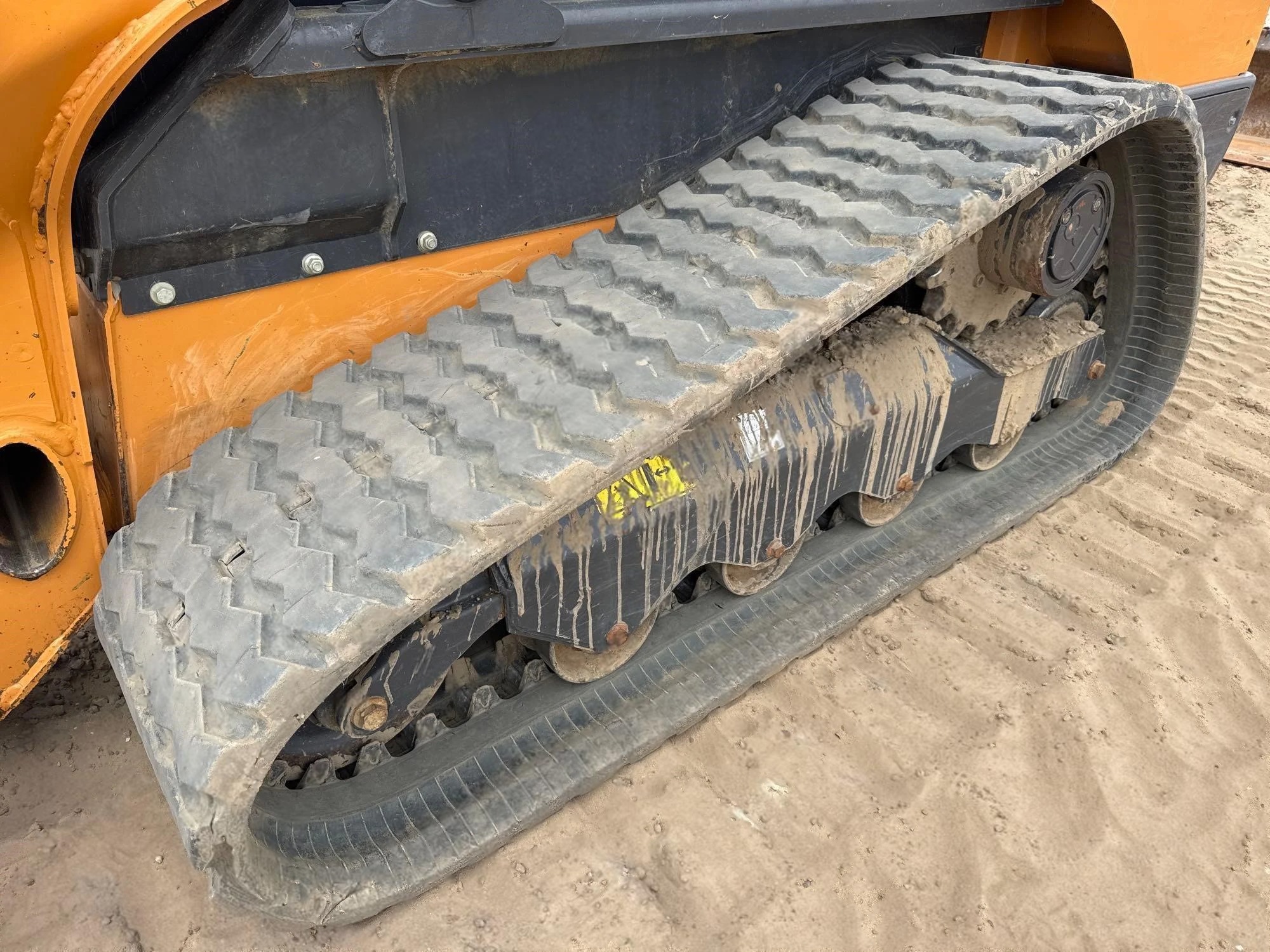

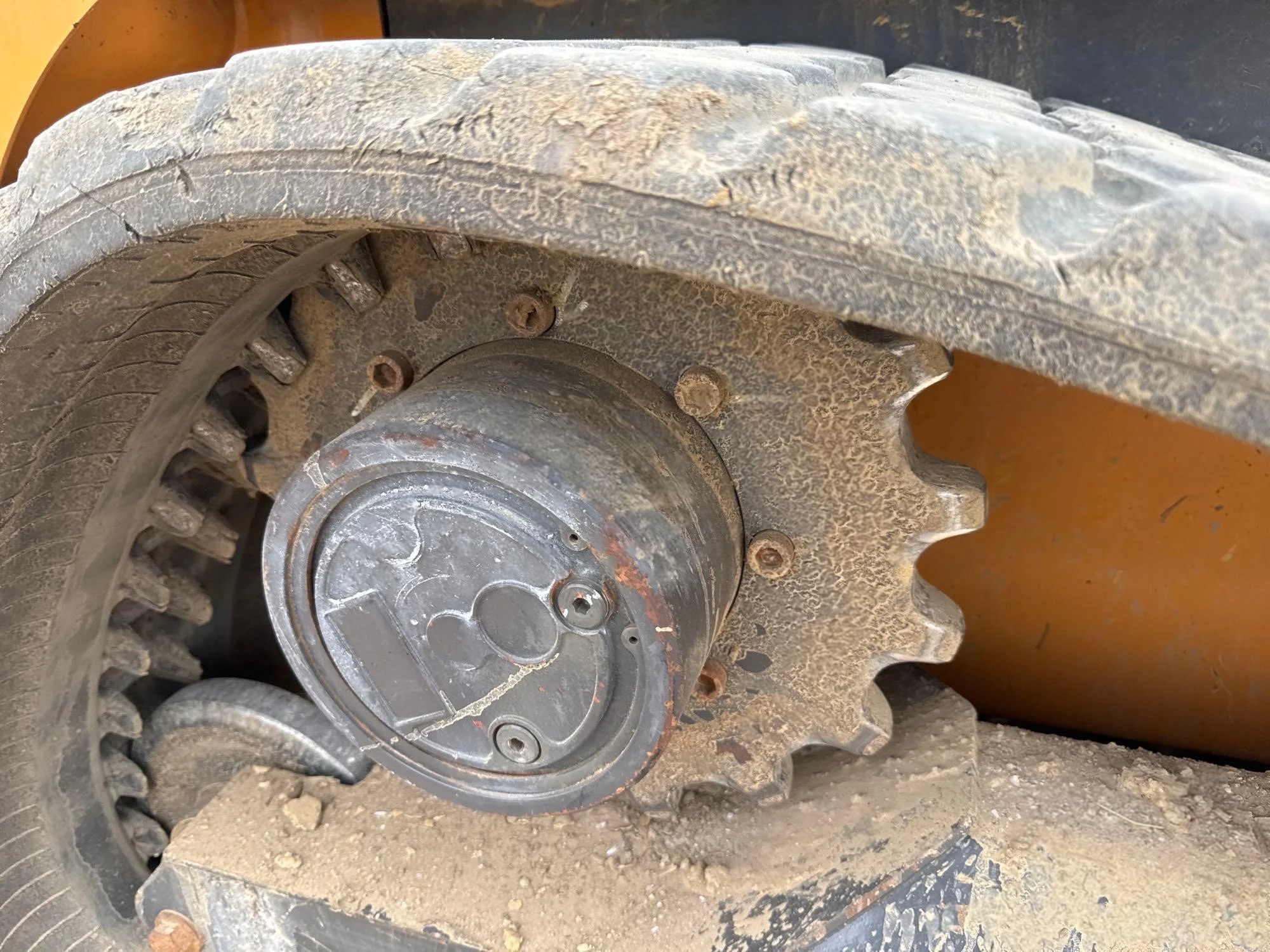

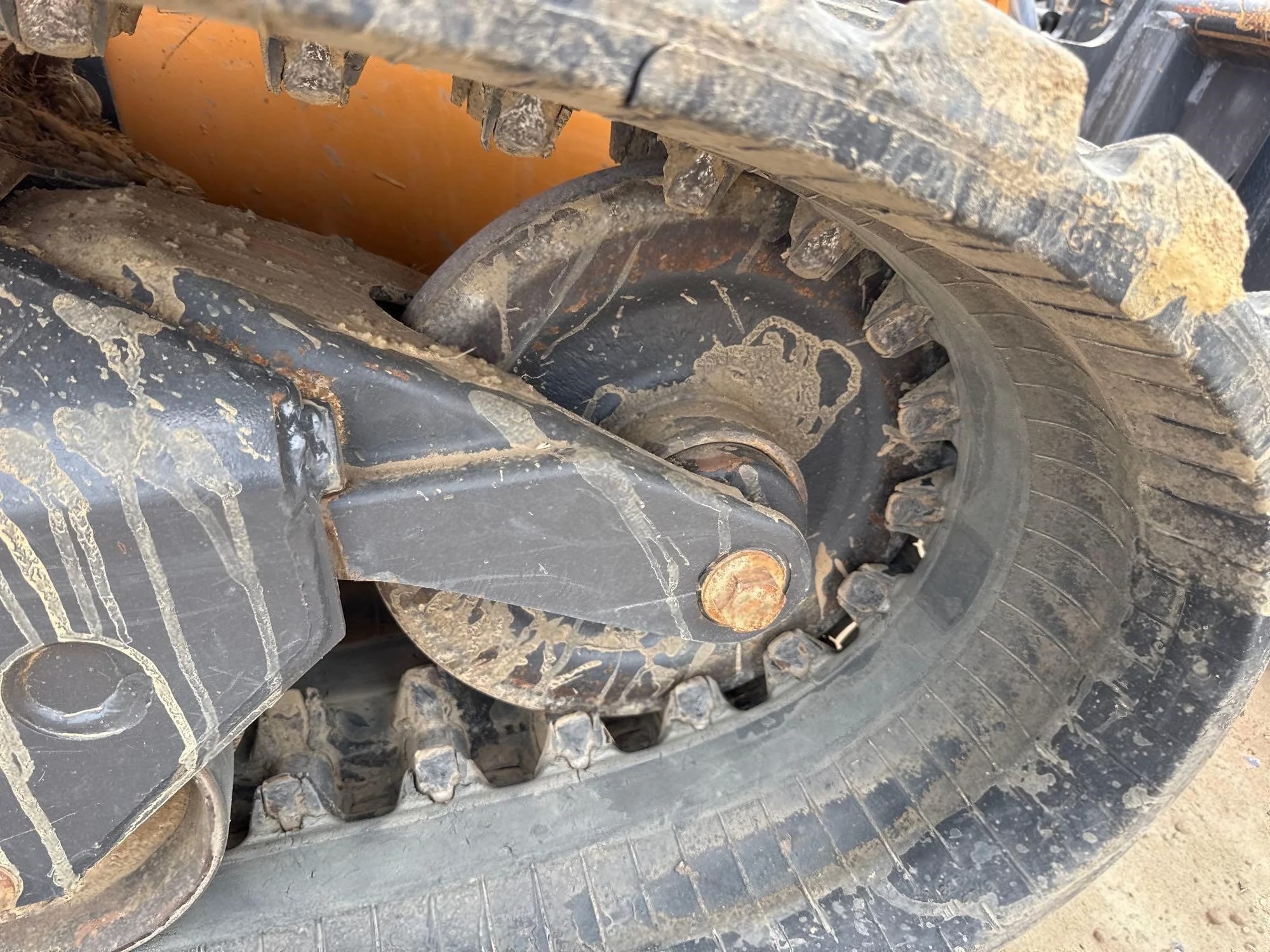

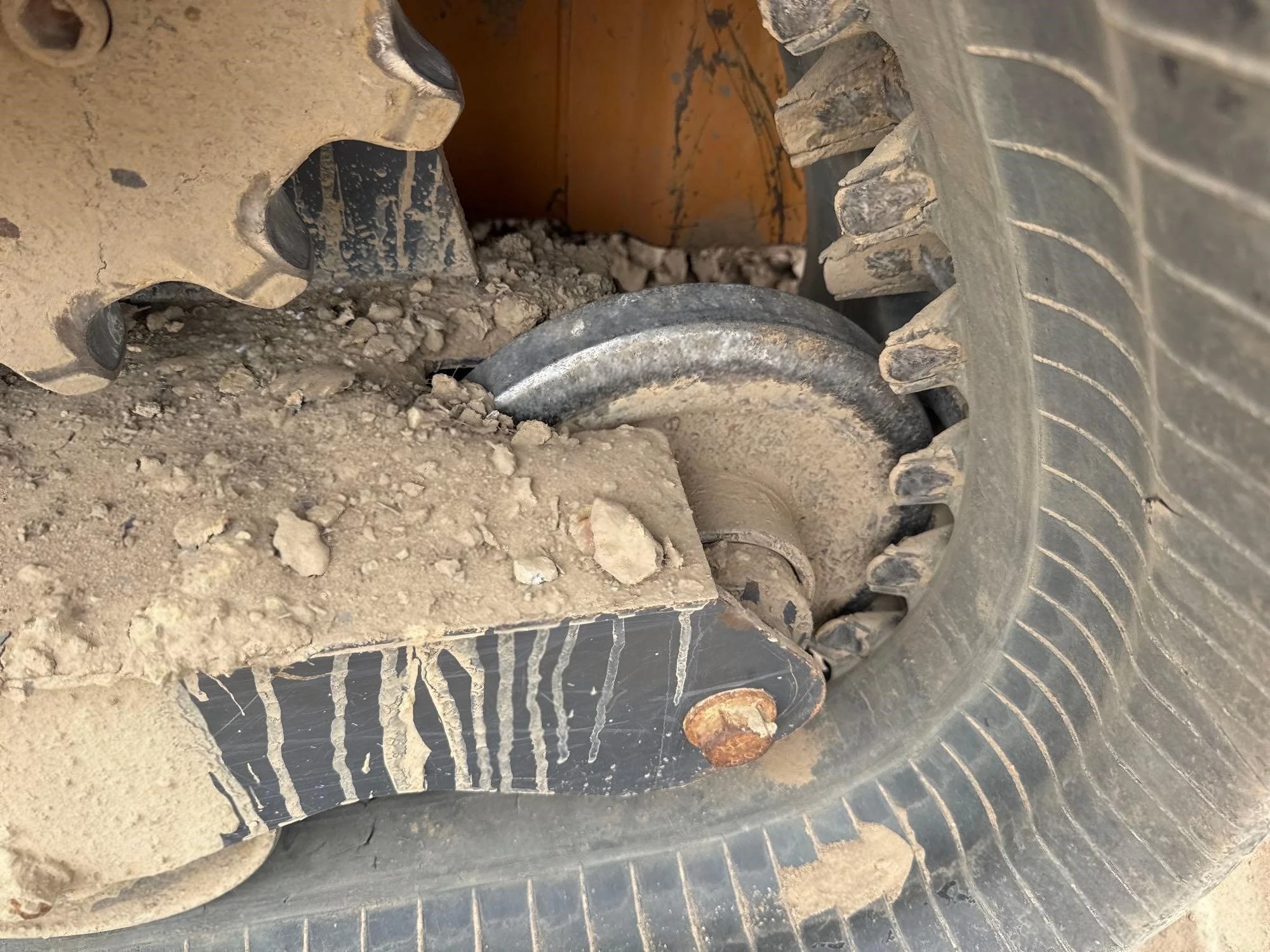

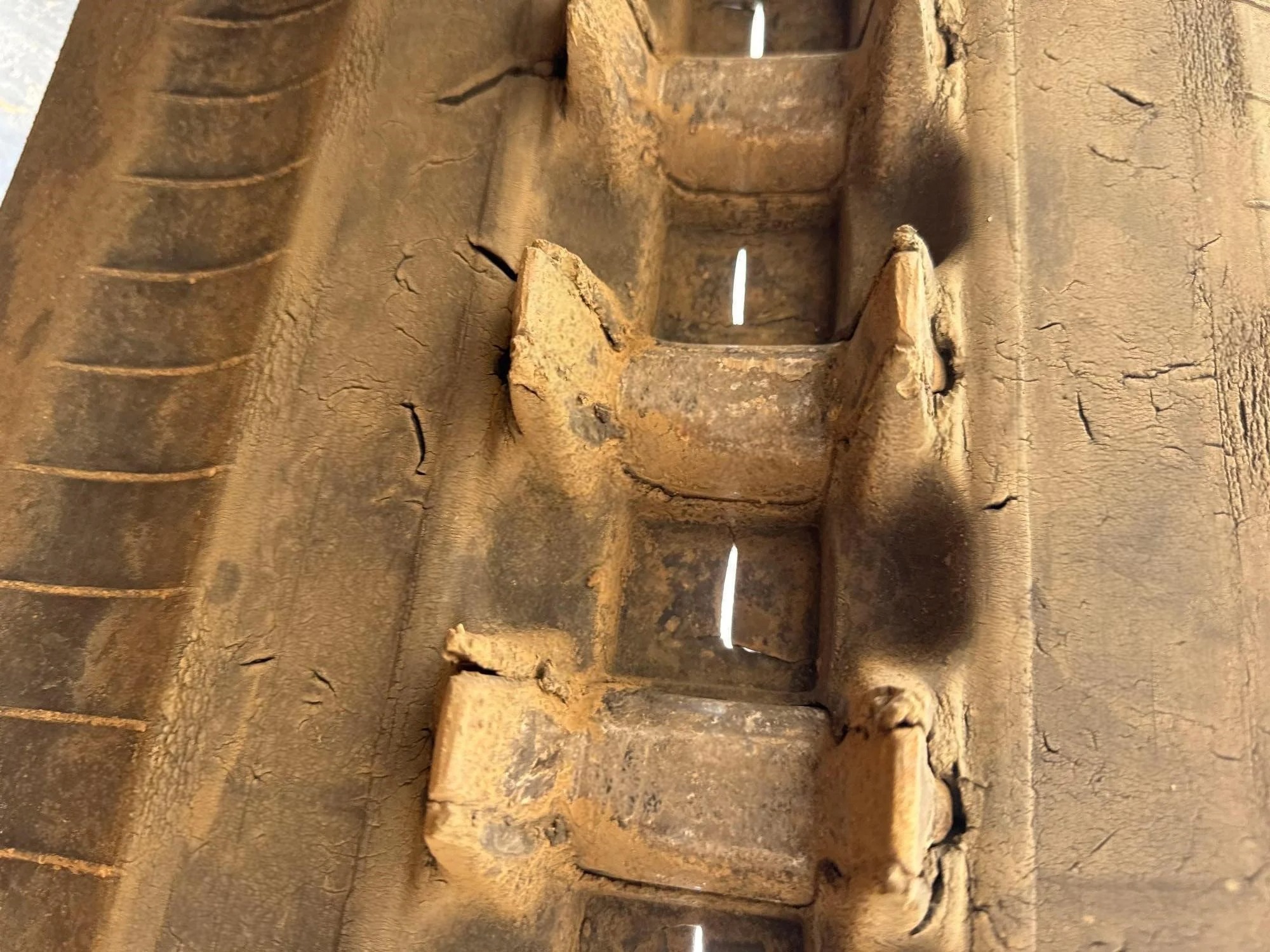

Rubber Track

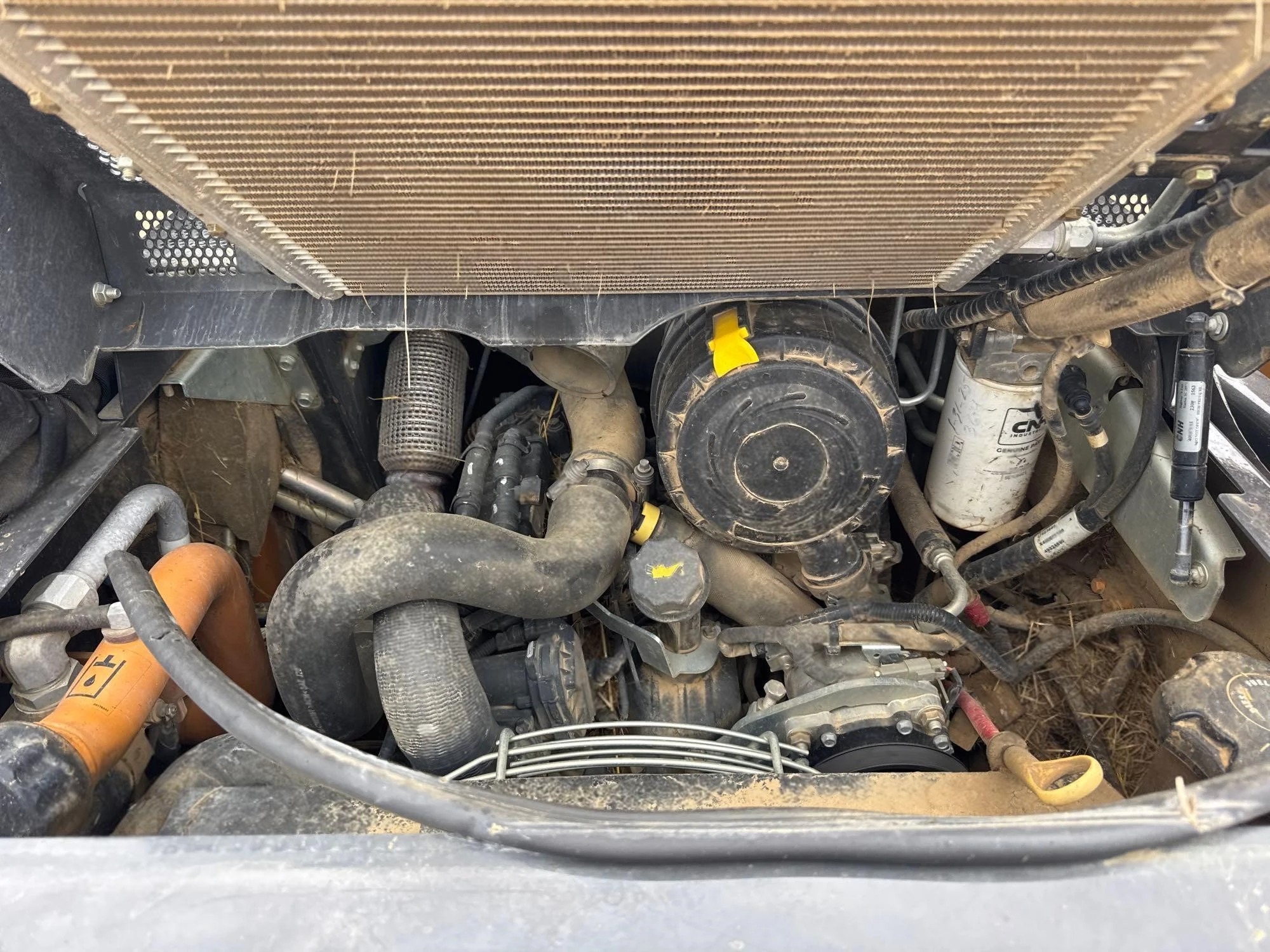

ENGINE

Model F5HFL463A*G032
Emissions Certification Tier 4 Final
Type Diesel 4-stroke, Turbo, D.I.
Cylinders 4
Bore/Stroke 3.9 × 4.3 in
Displacement 207 in.cu
Horsepower @ 2,500 RPM – SAE J1349:
Gross 74 hp
Net 68 hp
Peak torque @ 1,400 RPM 232 lb·ft

DRIVETRAIN

Travel speed:
Low range 5.1 mph
High range 8 mph

HYDRAULICS

Implement pump type Gear
Displacement:
Standard aux. 2.23 in3
High-flow aux. 1.24 in3
Standard flow @ rated engine RPM:
@ 100% efficiency 24.2 gpm
Optional high-flow @ rated engine RPM:
@ 100% efficiency 37.6 gpm
Loader control valve:
Type 3 spool/open center/series – series
Relief pressure 3,046 psi
Port relief pressures:
Loader raise 3,263 psi
Bucket curl 3,770 psi
Bucket dump 1,160 psi

PERFORMANCE SPECS

Rated operating capacity – ROC*:
35% of tipping load 2,590 lb
50% of tipping load 3,700 lb
w/ additional counterweight 3,900 lb
Tipping load* 7,400 lb (3 356 kg)
Breakout forces @ 3,150 psi:
Bucket cylinders 8,593 lb
Lift cylinders – hydraulic limit 6,385 lb

SERVICE CAPACITIES

Fuel Tank 25.5 gal
Engine oil w/ filter 8.9 qt
Hydraulic system:
Reservoir 6 gal
Total 11.9 gal

WEIGHT

Operating weight 9,945 lb
