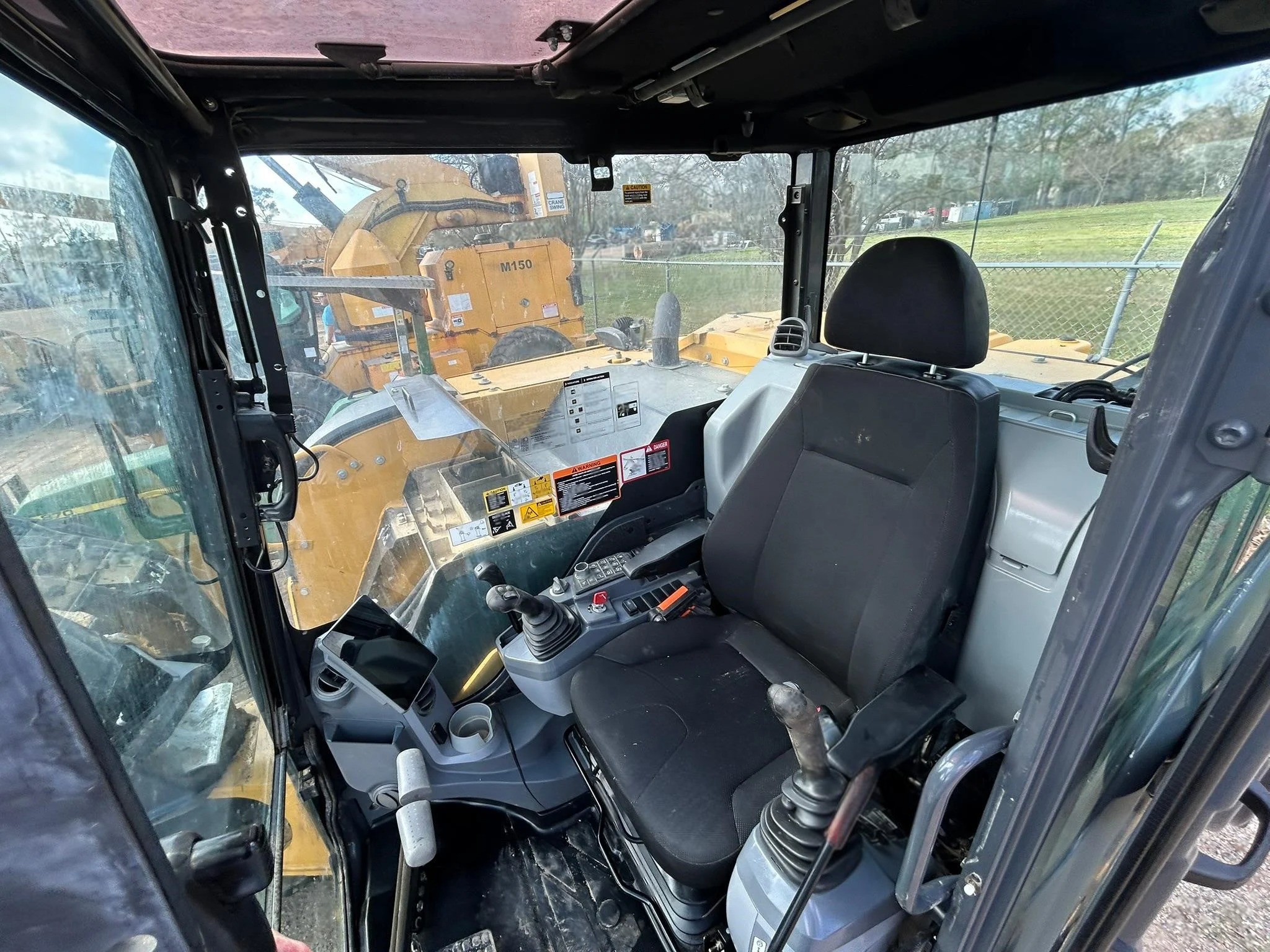

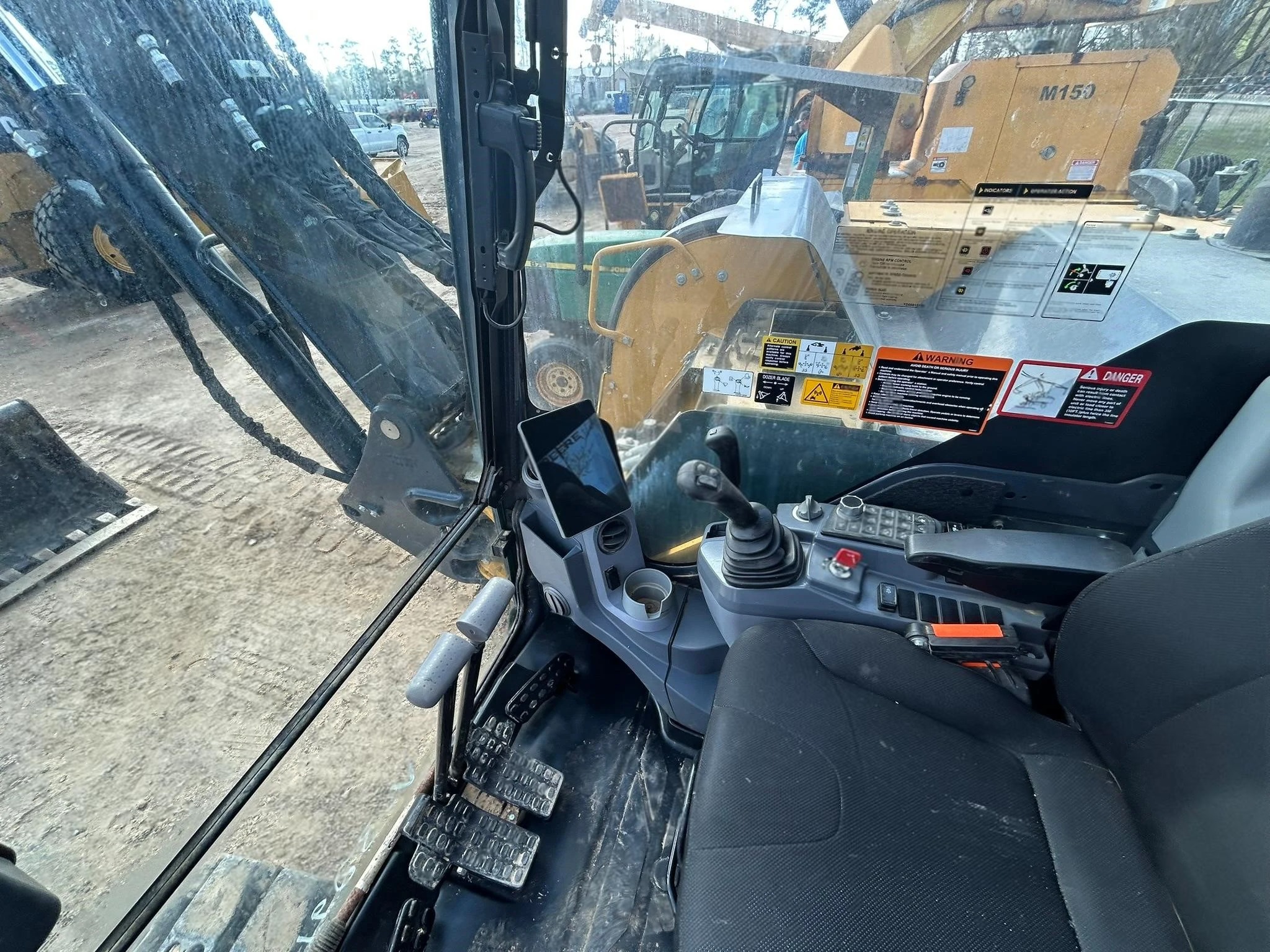

EROPS (enclosed cab) w/ AC/Heat
6’11 Arm
18″ Rubber Pads

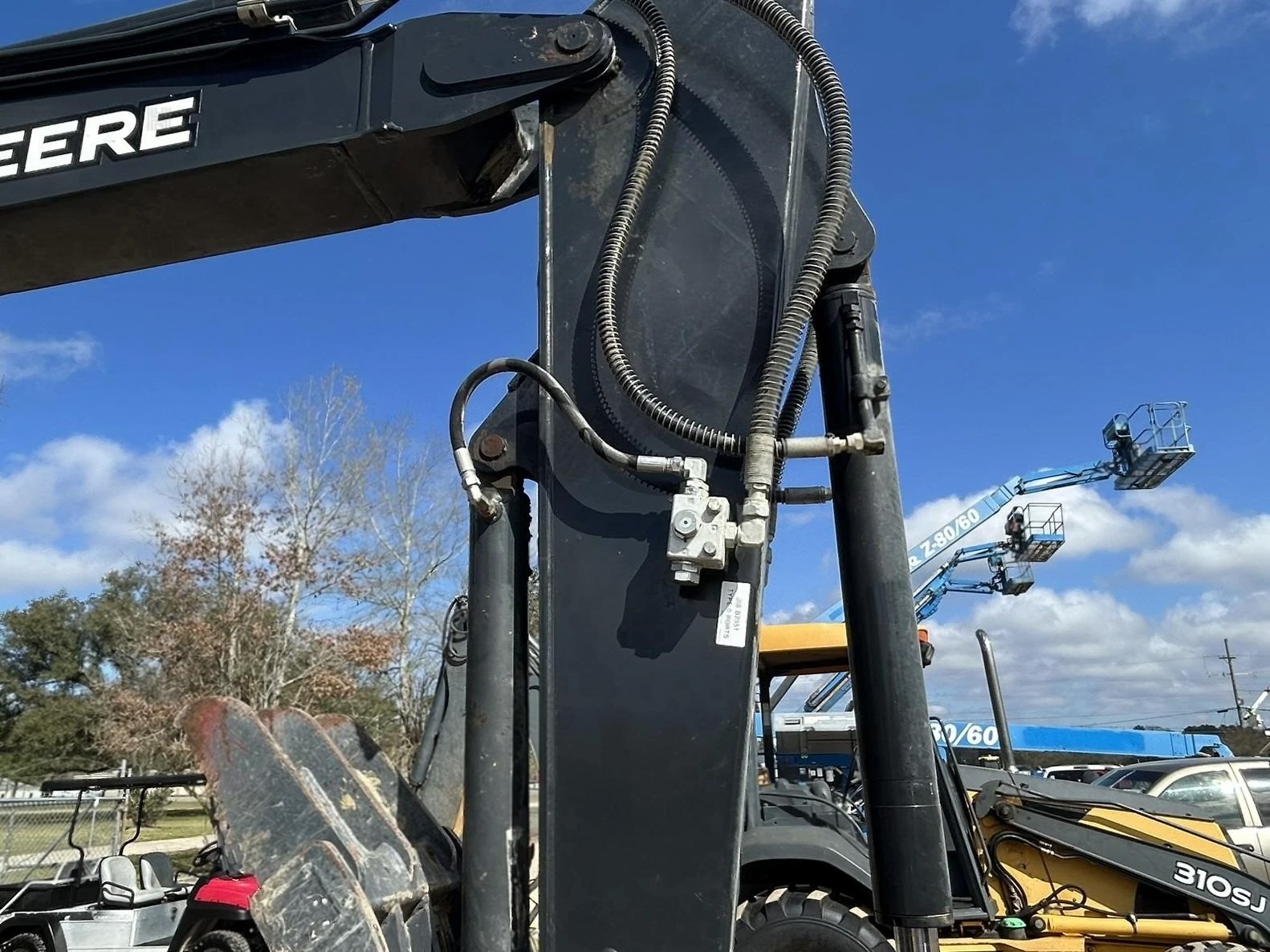

Auxiliary Hydraulics
Quick Coupler

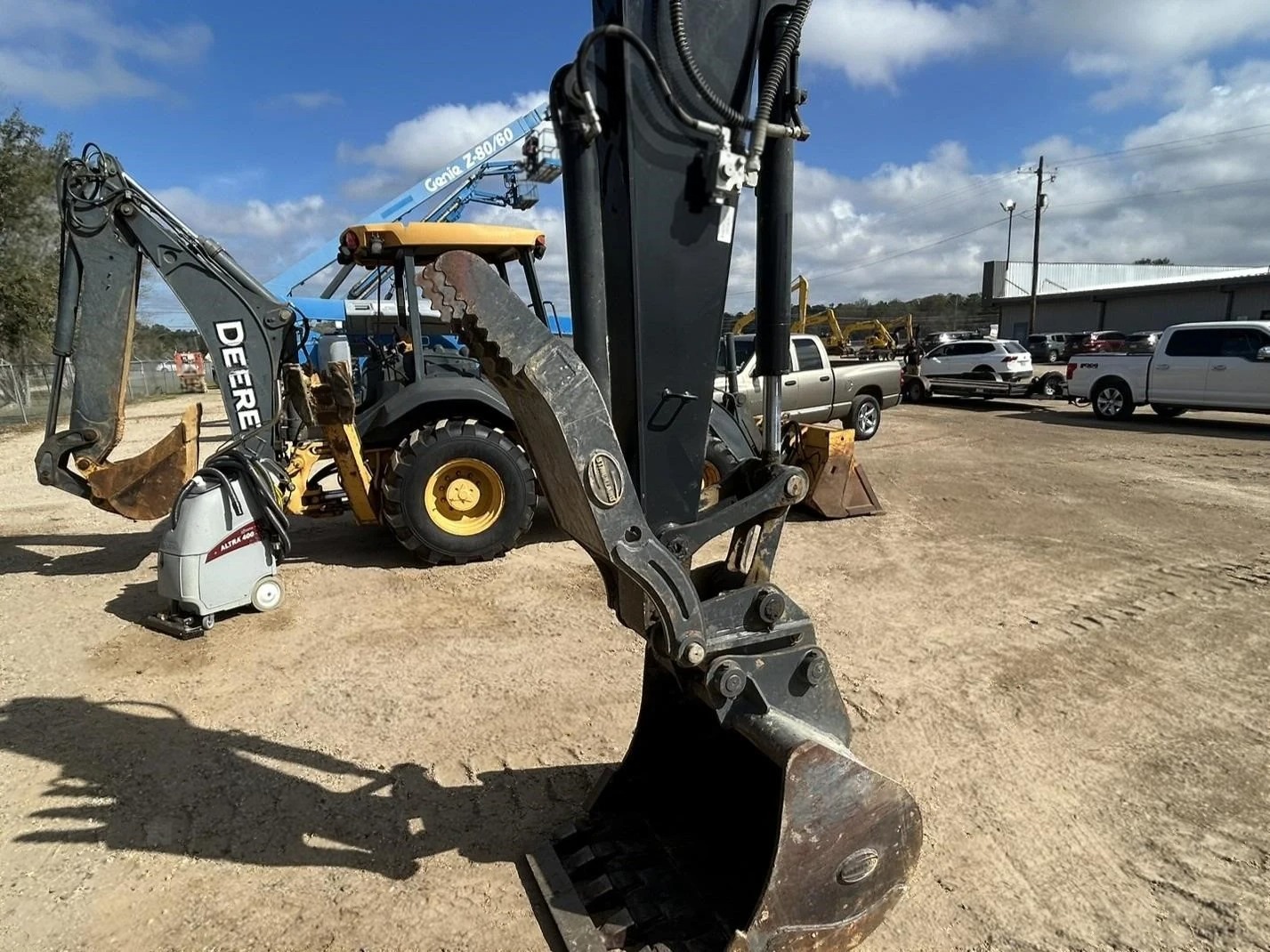

Progressive-Link Hydraulic Thumb
GP Bucket
Side Cutters

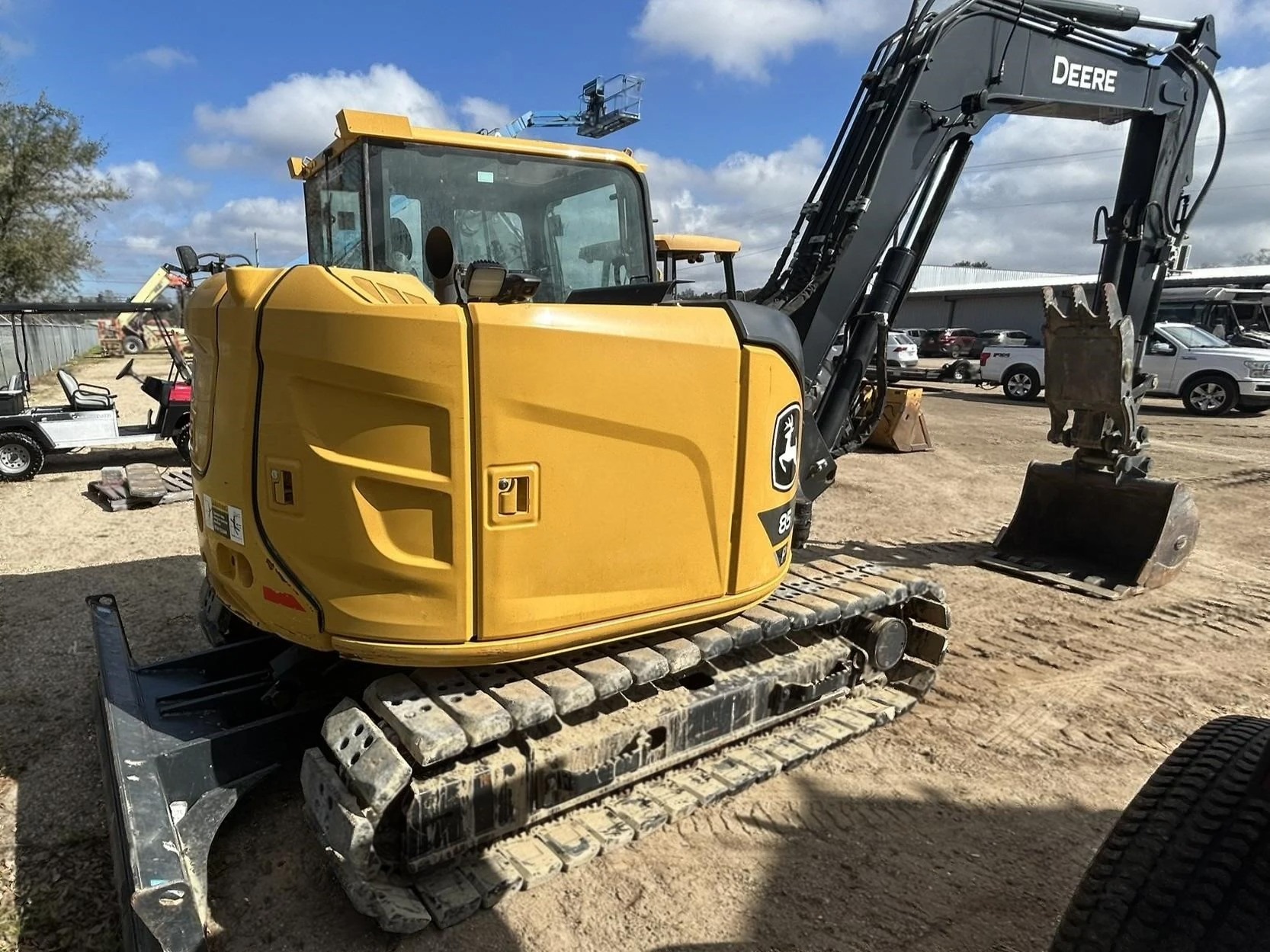

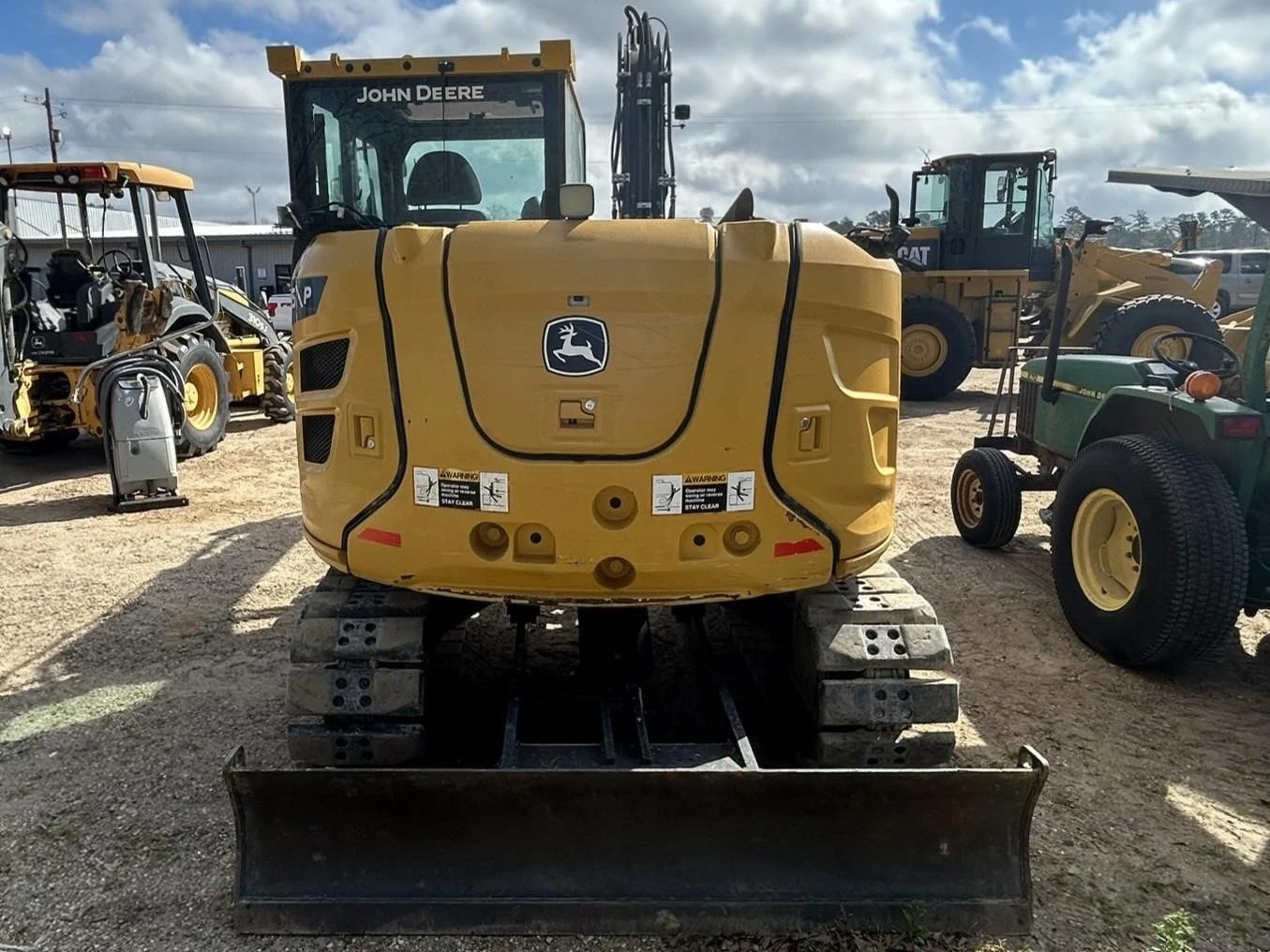

w/ Blade

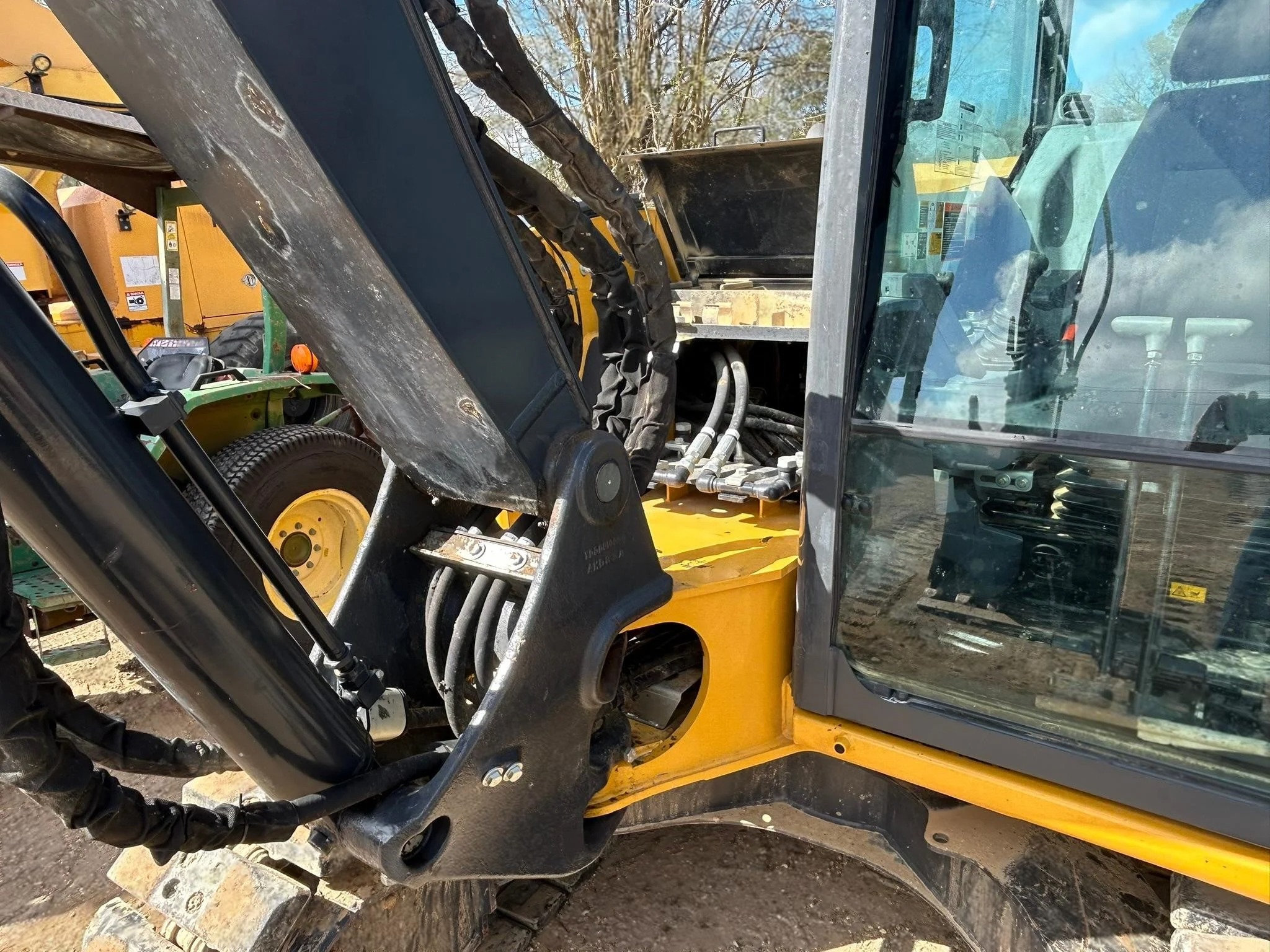

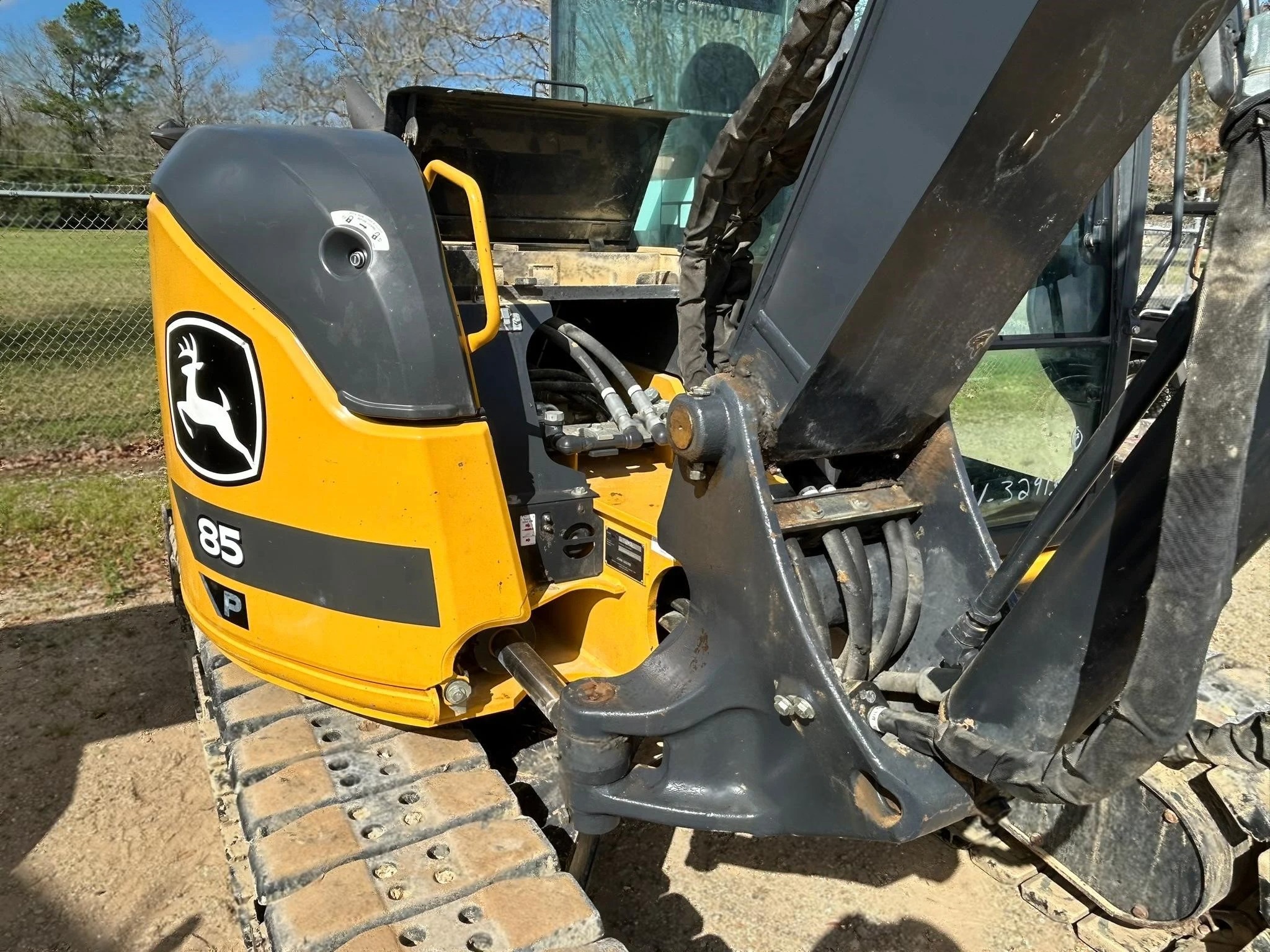

Swing Boom
Side + Rear Cameras

ENGINE

Manufacturer – Yanmar
Model – 4TNV98CT-WHBW
Non-road emission standards – EPA Final Tier 4
Net power (rpm) – 2000.0 rpm
Net power at net power rpm (ISO 9249) (hp) – 67.6 hp
Cylinders – 4
Displacement (cu in.) – 202.0 cu in.
Off-level capacity (%) – 70.0 %
Off-level capacity (degrees) – 35.0 degrees
Aspiration type – Turbocharger

POWERTRAIN

Powertrain type – 2-speed propel with automatic shift
Maximum travel speed low/slow (mph) – 1.9 mph
Maximum travel speed high/fast (mph) – 3.1 mph
Drawbar pull (lb) – 14374.0 lb.

HYDRAULICS

Hydraulics type – Open center, load sensing
Main pump type – 3 variable-displacement axial-piston pumps
Number of pumps – 2
Main pump maximum rated flow per pump (gpm) – 15.0 gpm
Pilot pump number of gears – 1
Pilot pump maximum rated flow (gpm) – 5.3 gpm
Pilot pump pressure setting (psi) – 624.0 psi
Implement circuits system operating pressure (psi) – 4061.0 psi
Travel circuits system operating pressure (psi) – 4583.0 psi
Swing circuits system operating pressure (psi) – 3785.0 psi
Controls type – Pilot levers, short stroke, low effort; hydraulic pilot controls with shutoff lever

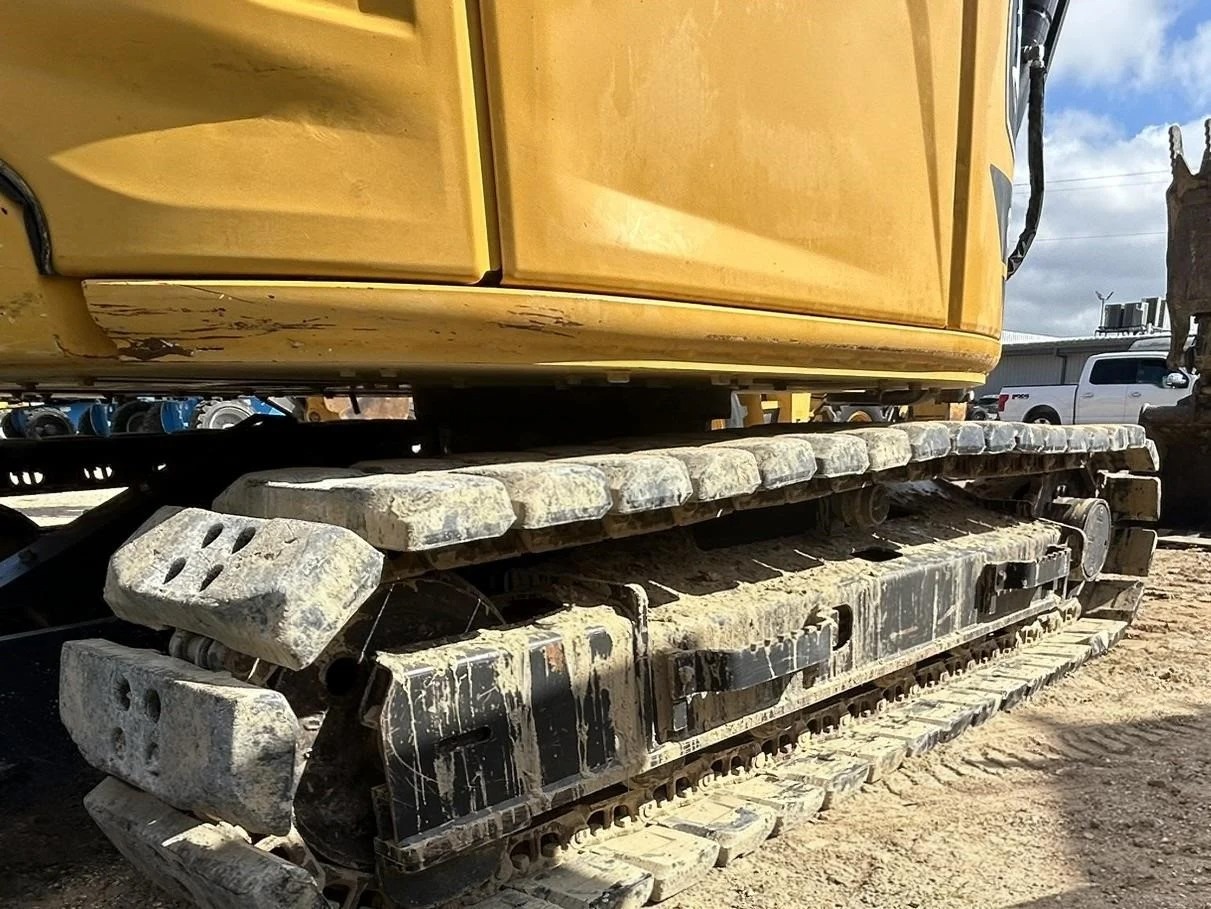

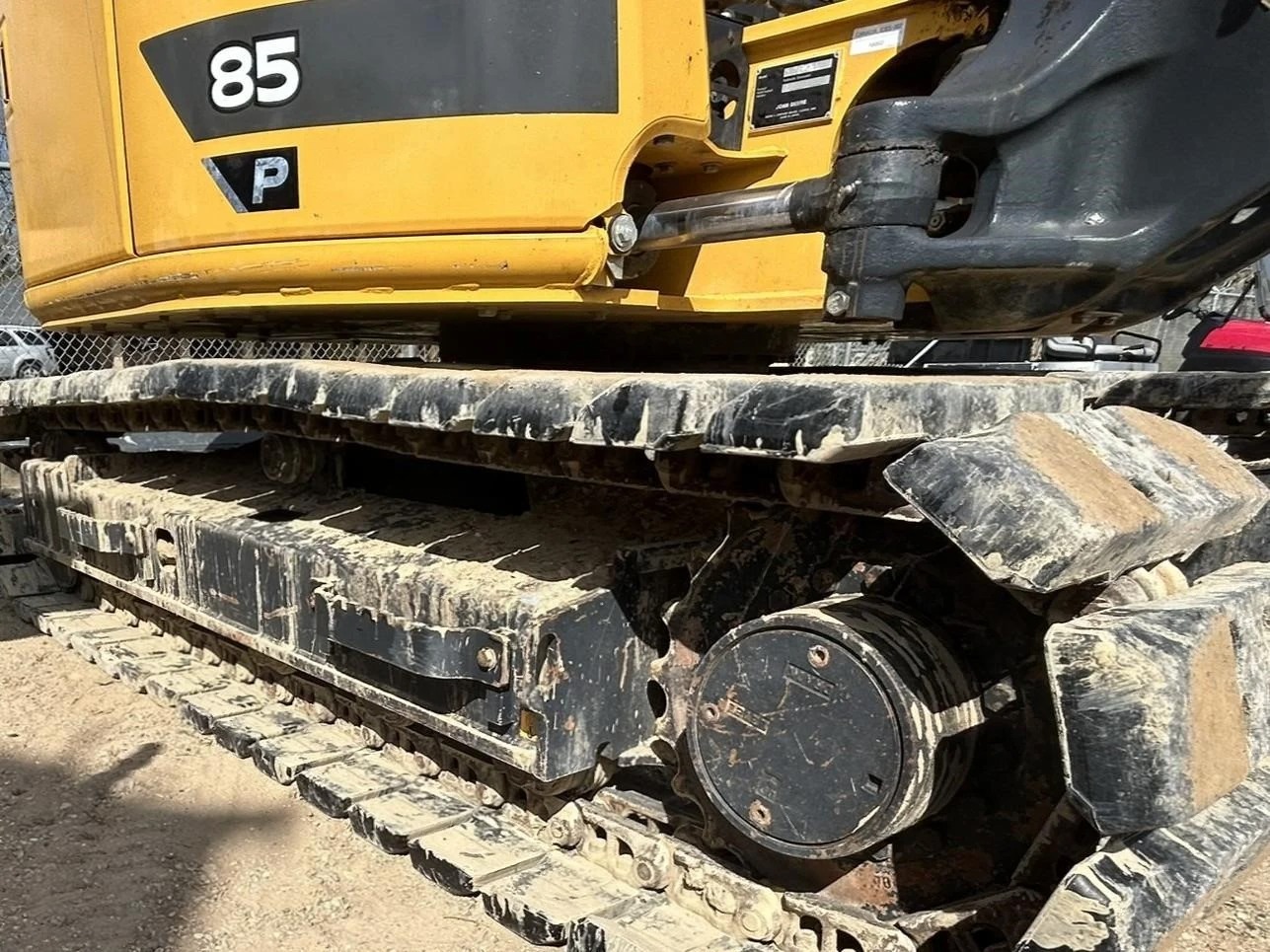

UNDERCARRIAGE

Number of carrier rollers per side – 1
Number of track rollers per side – 5
Number of shoes per side – 40
Track adjustment type – Hydraulic
Track chain type – Sealed and lubricated

SWING MECHANISM

Speed (rpm) – 10.1 rpm
Torque (lb-ft) – 16600.0 lb-ft

REFILL CAPACITIES

Fuel tank (gal.) – 33.0 gal.
Cooling system (qt) – 14.0 qt
Engine oil with filter (qt) – 12.8 qt
Hydraulic tank (gal.) – 14.0 gal.
Hydraulic system (gal.) – 26.0 gal.
Propel gearbox (qt) – 1.3 qt

WEIGHTS

Operating weights 19,238 lb
