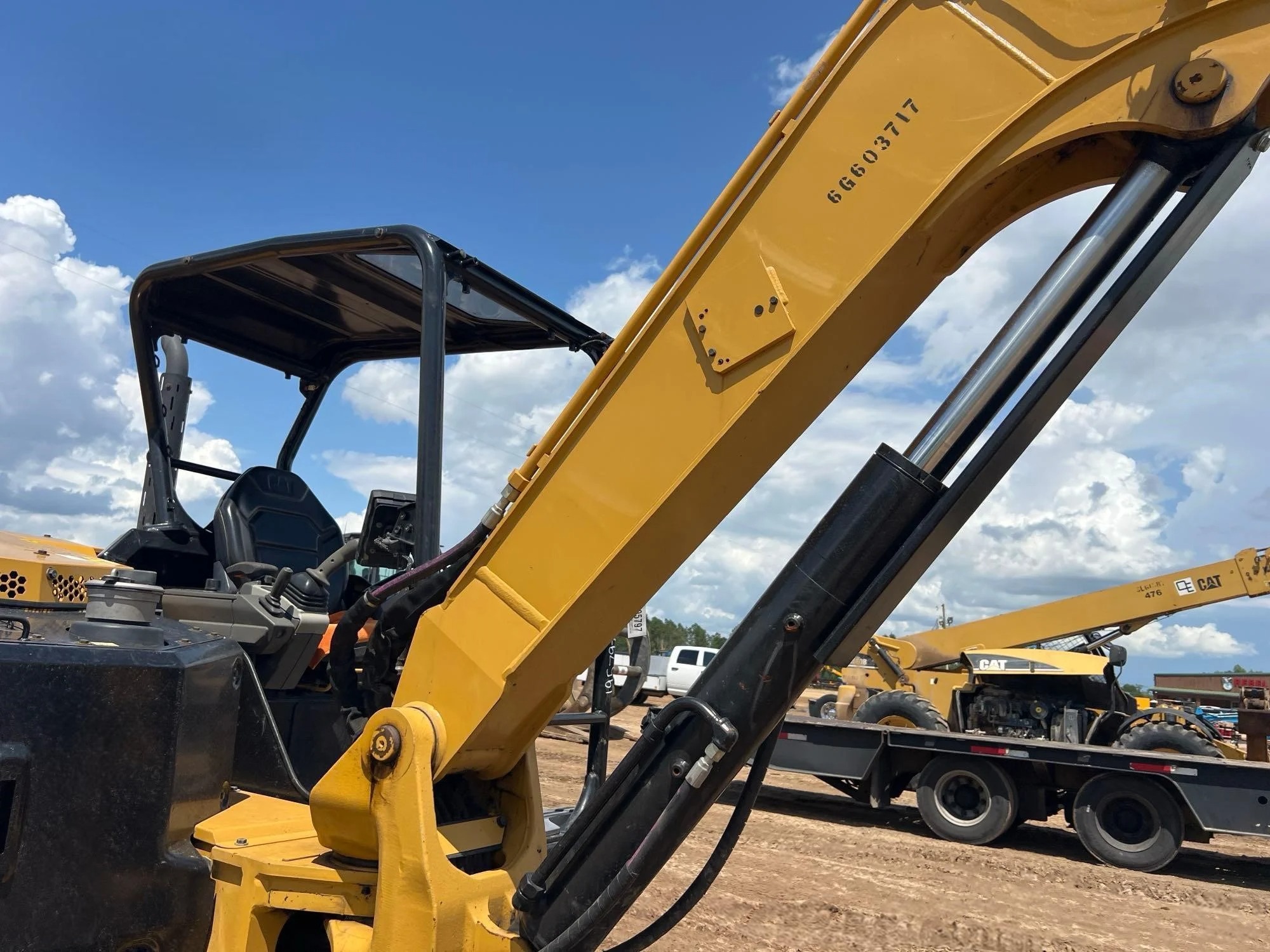

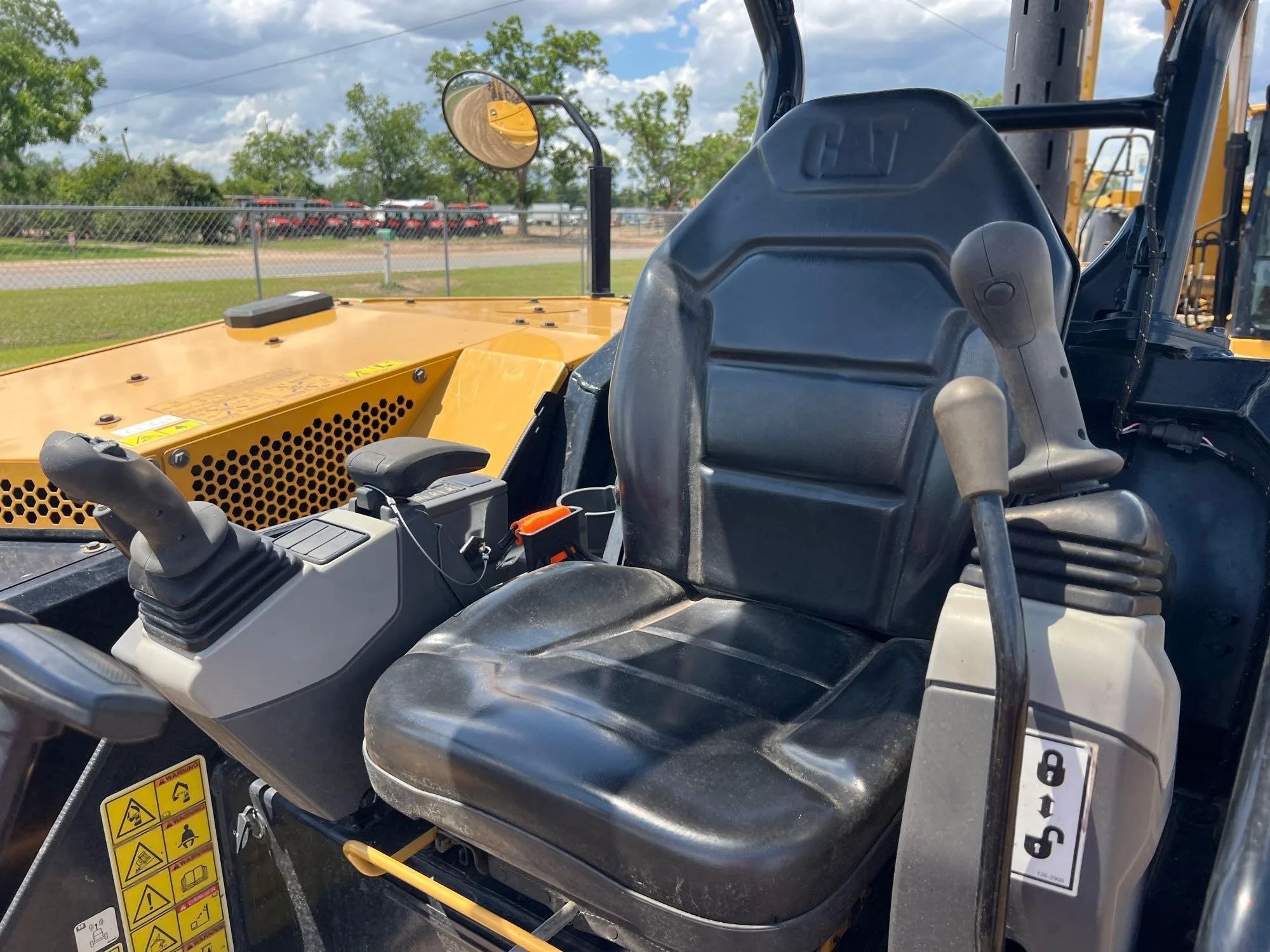

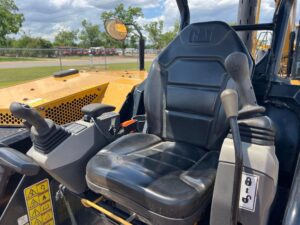

OROPS (canopy)

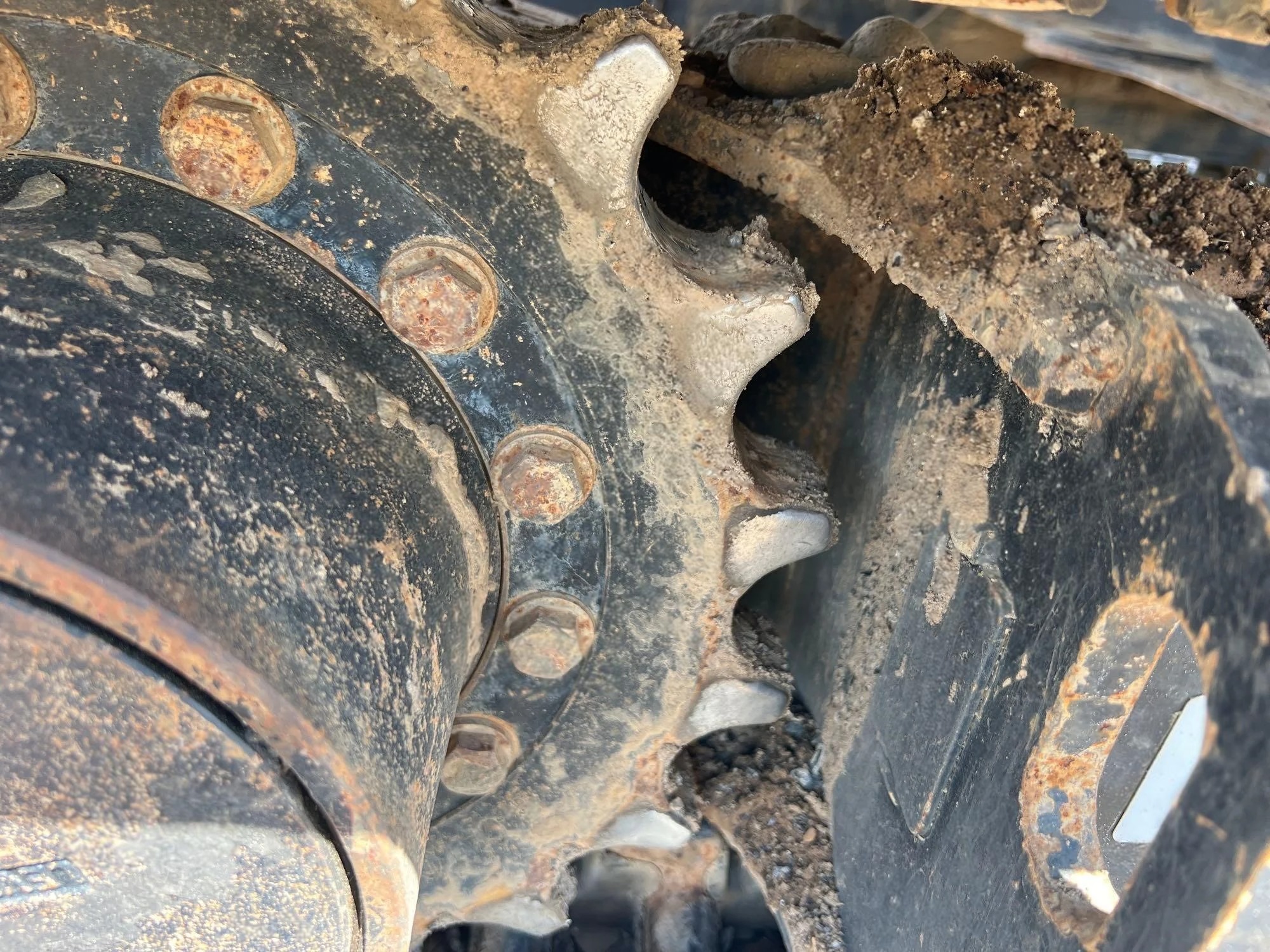

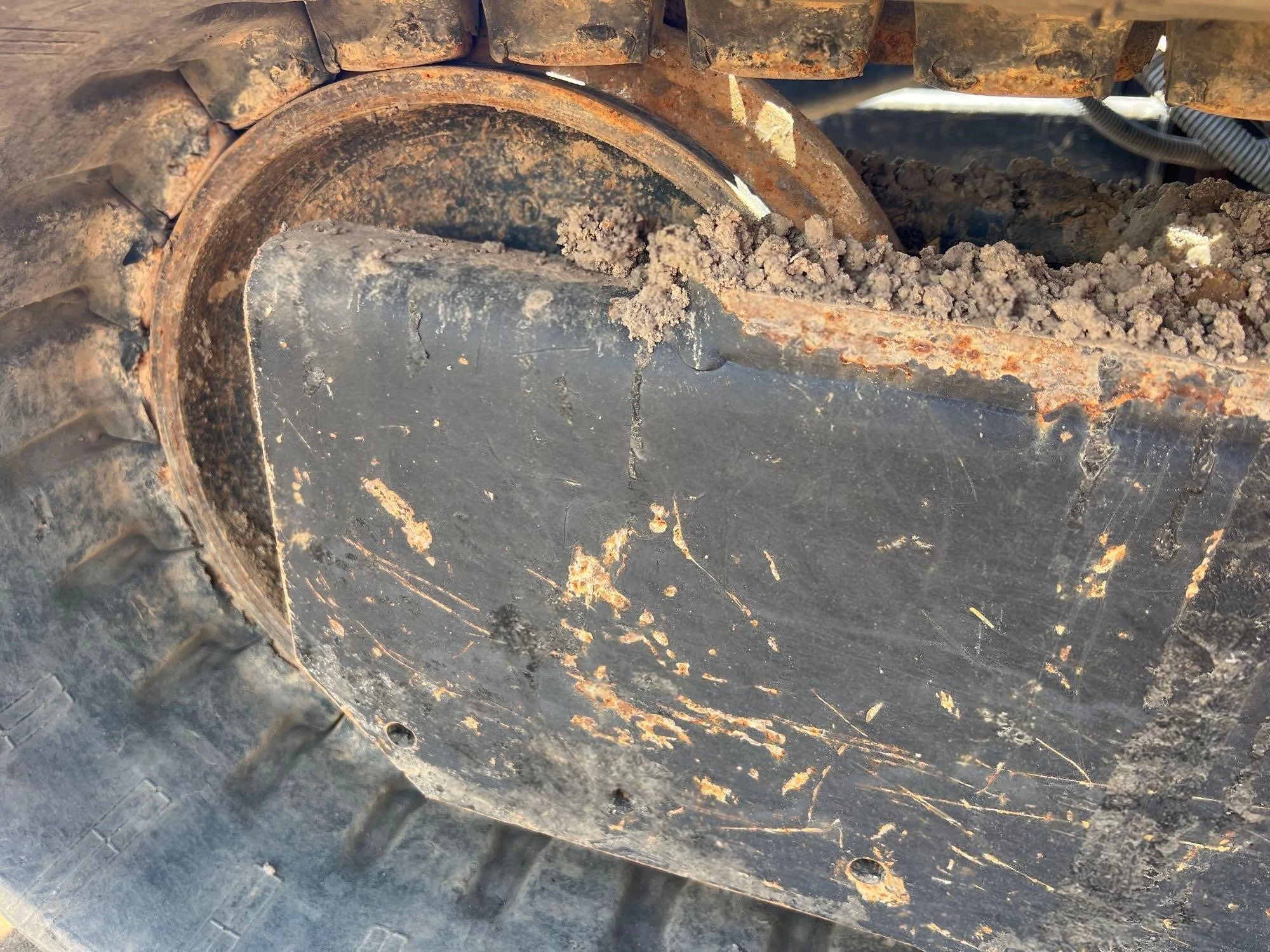

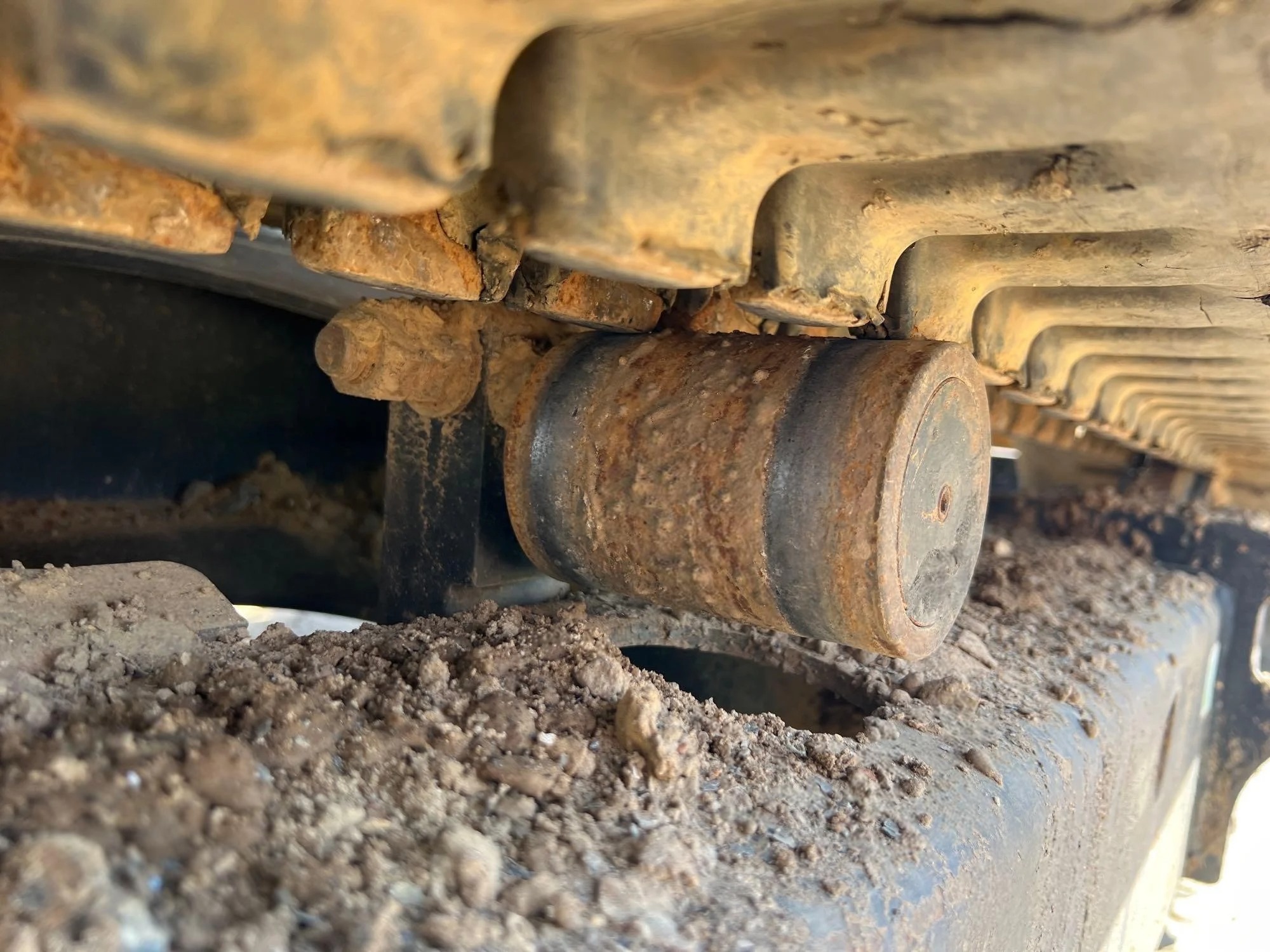

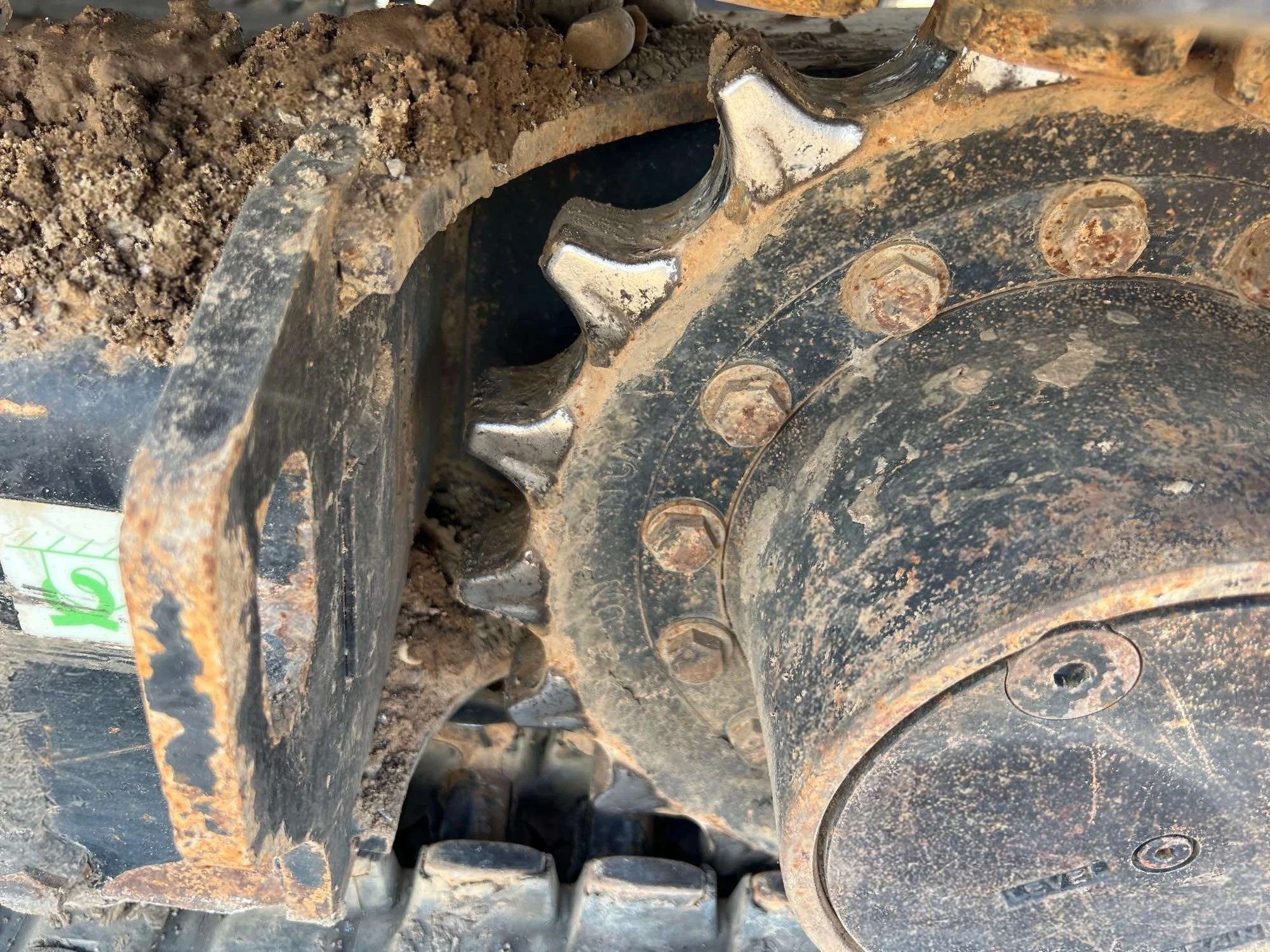

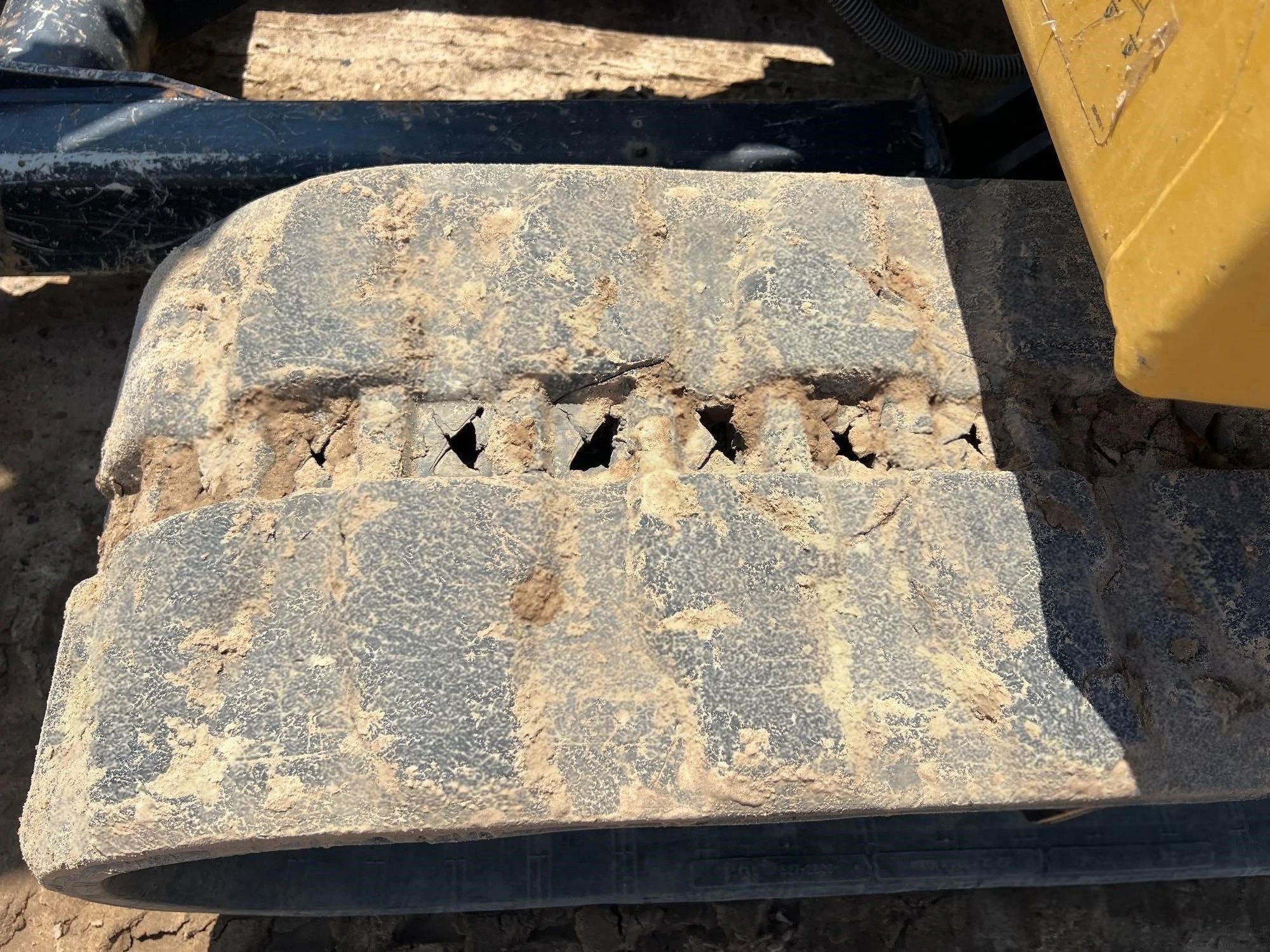

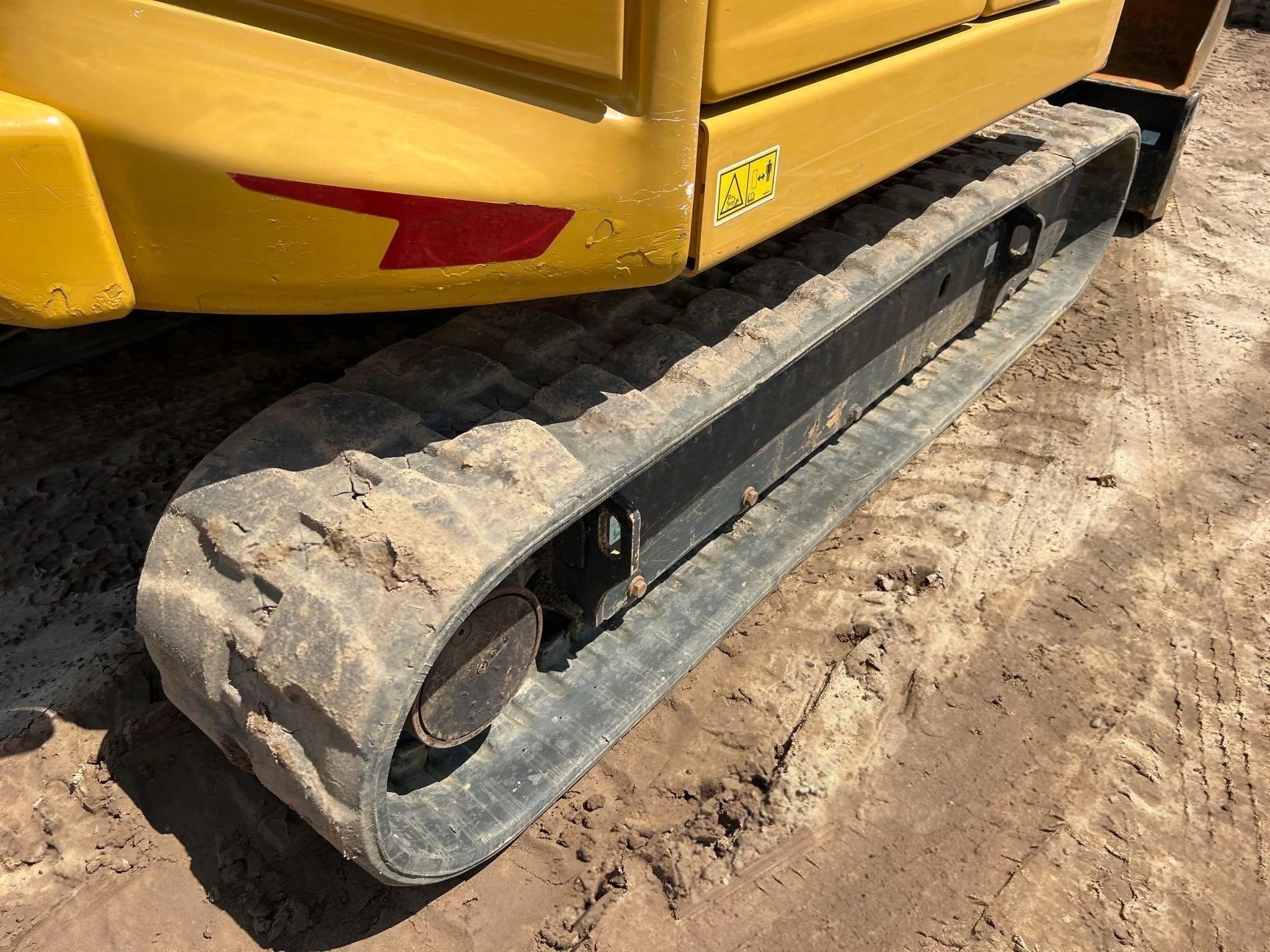

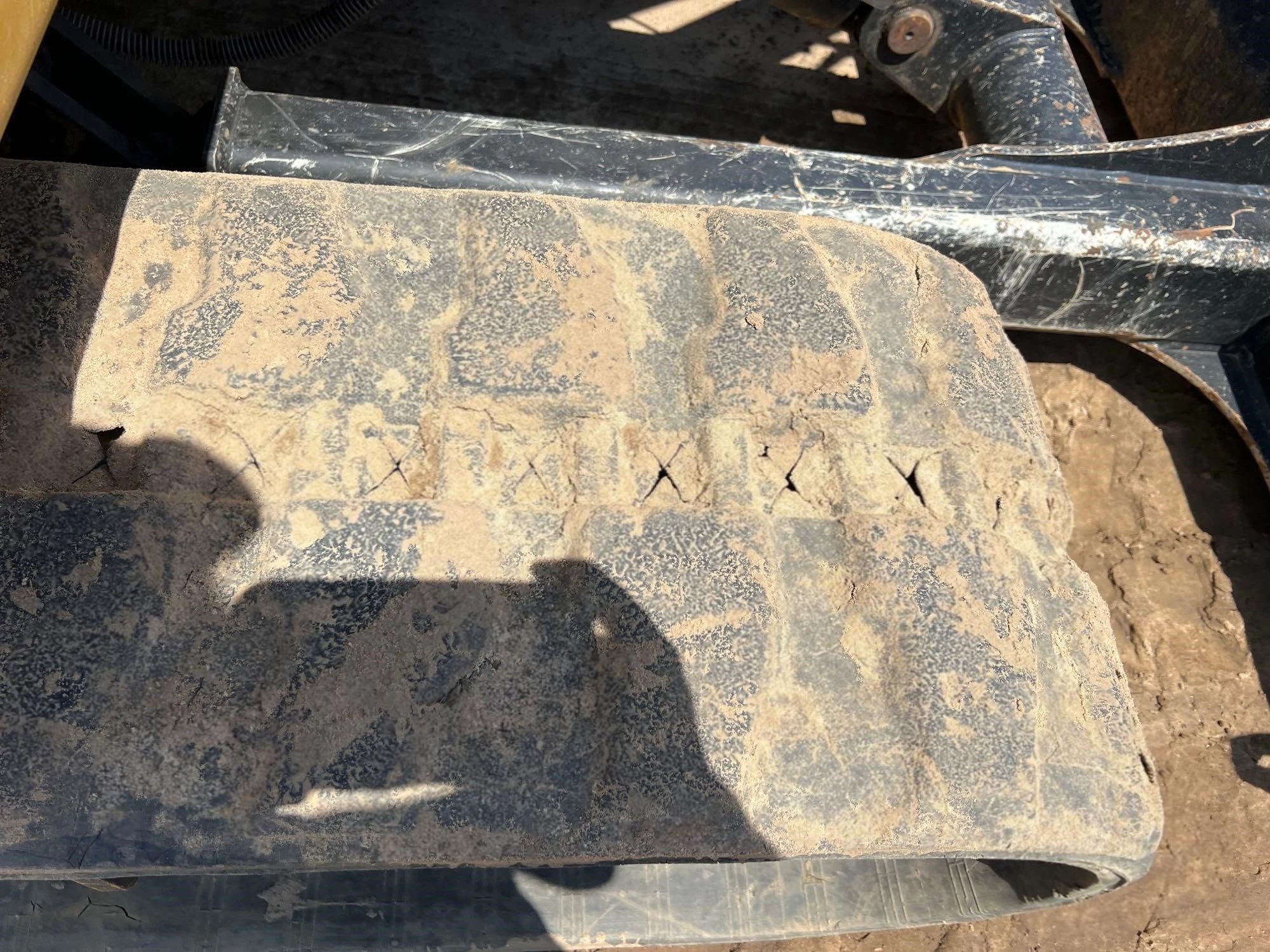

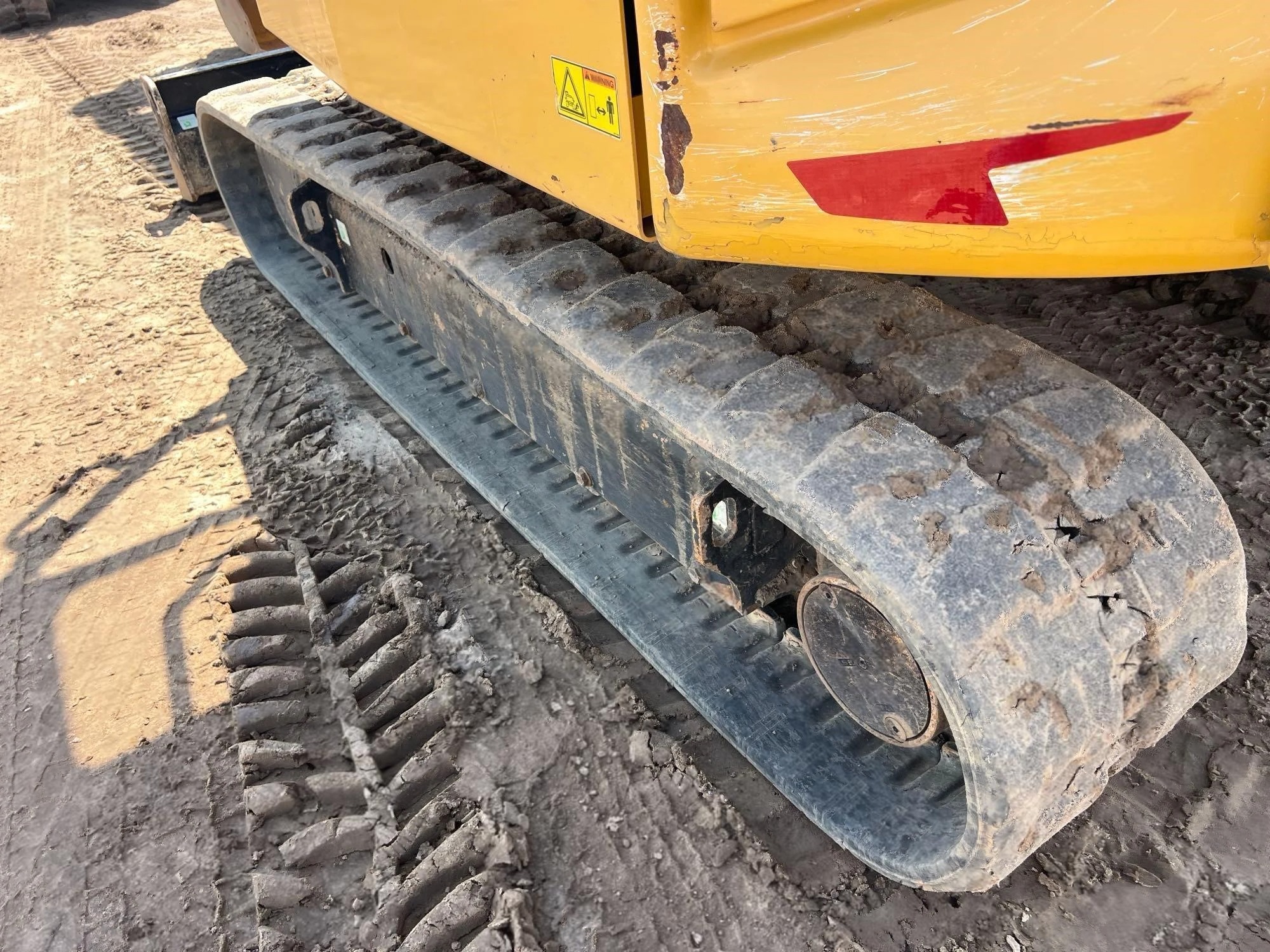

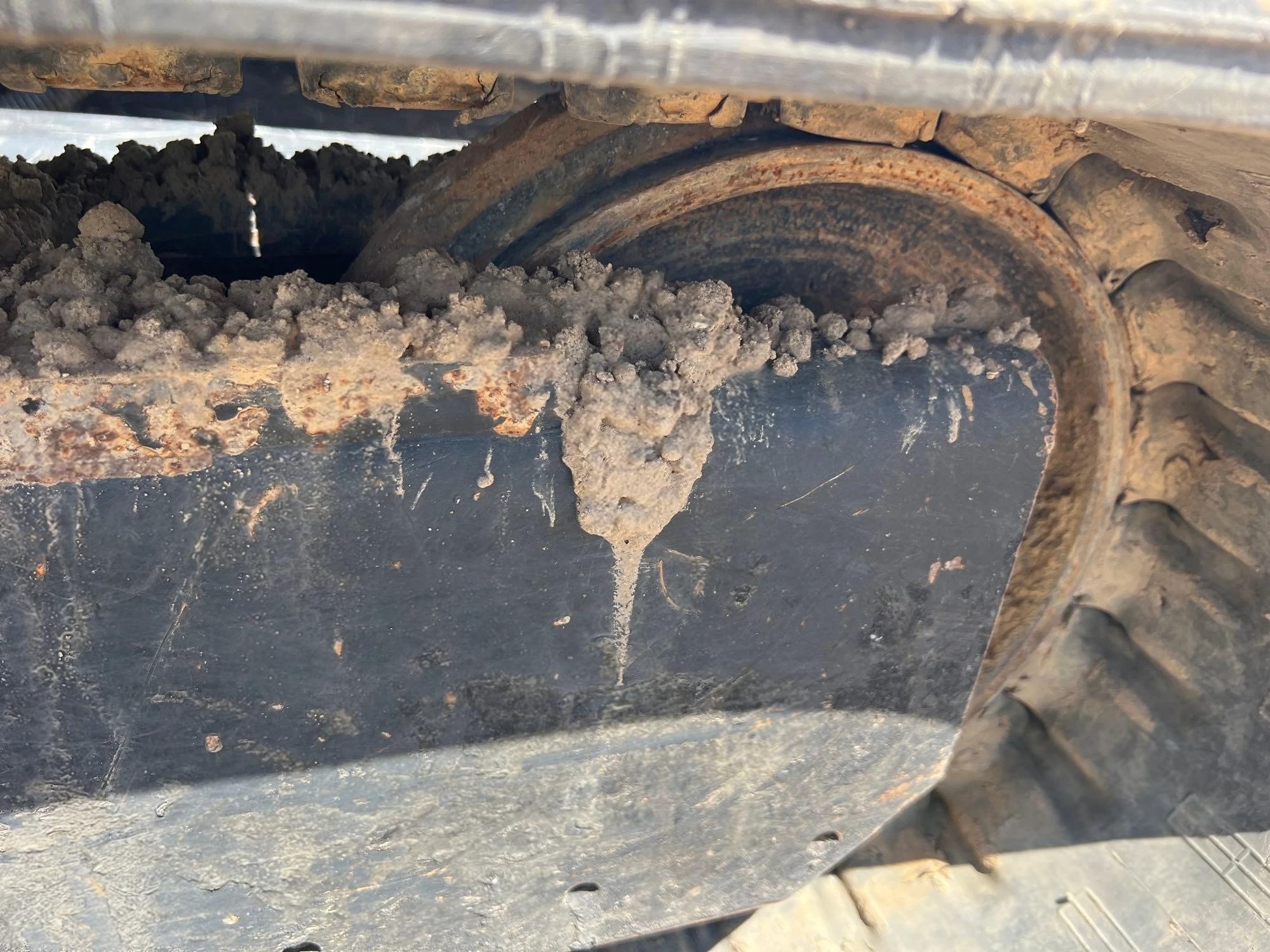

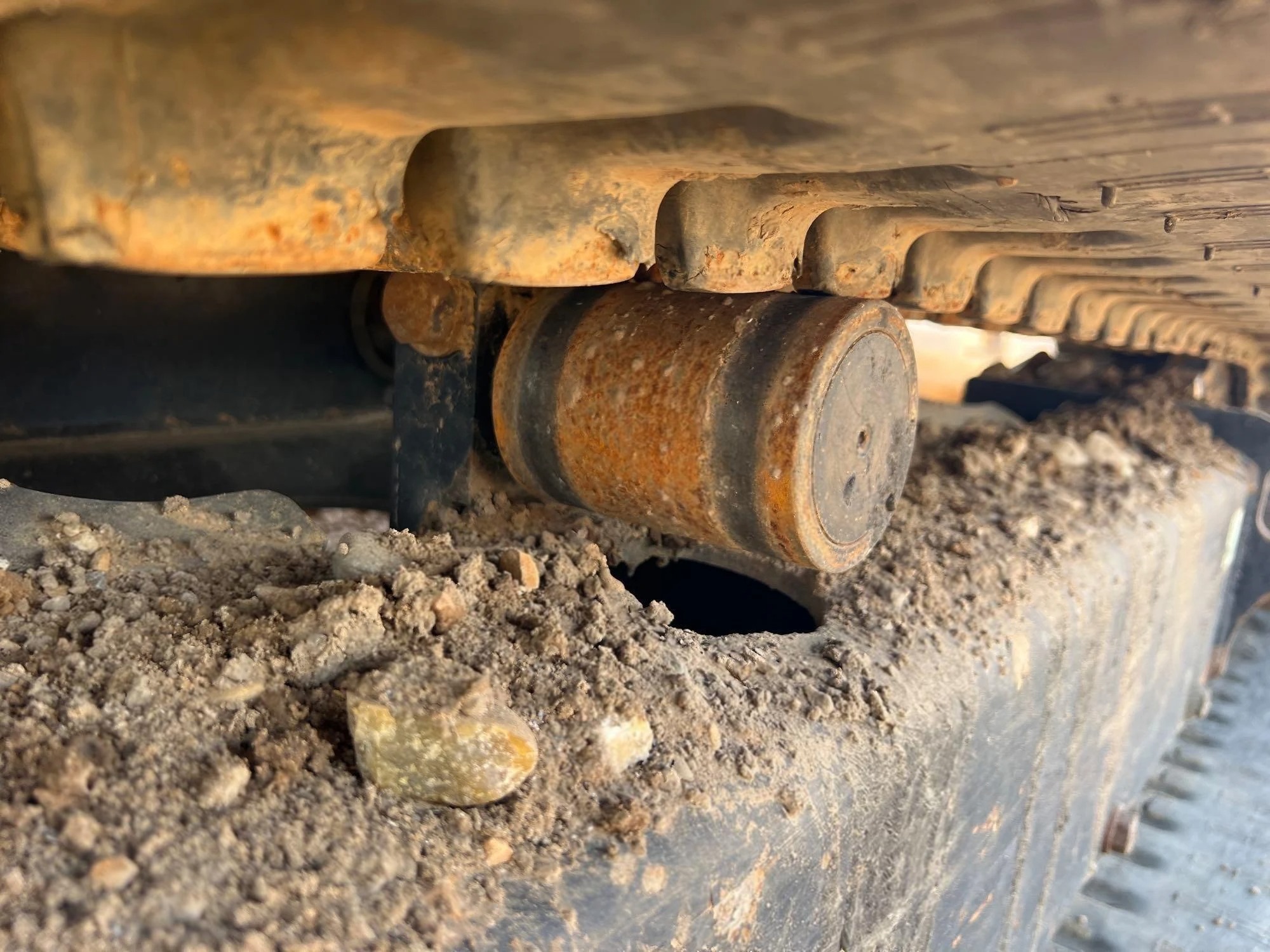

Rubber Track
Auxiliary Hydraulics

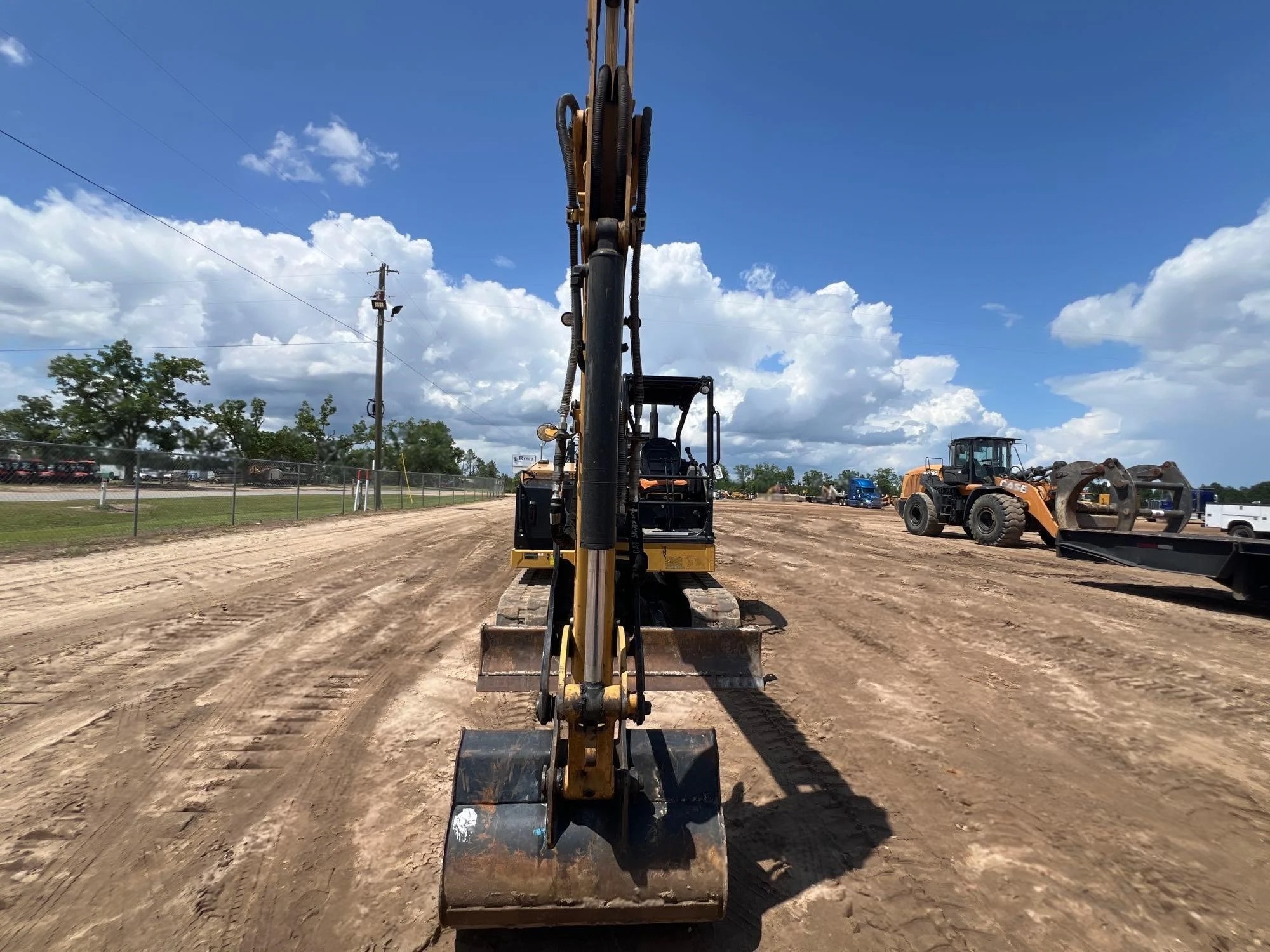

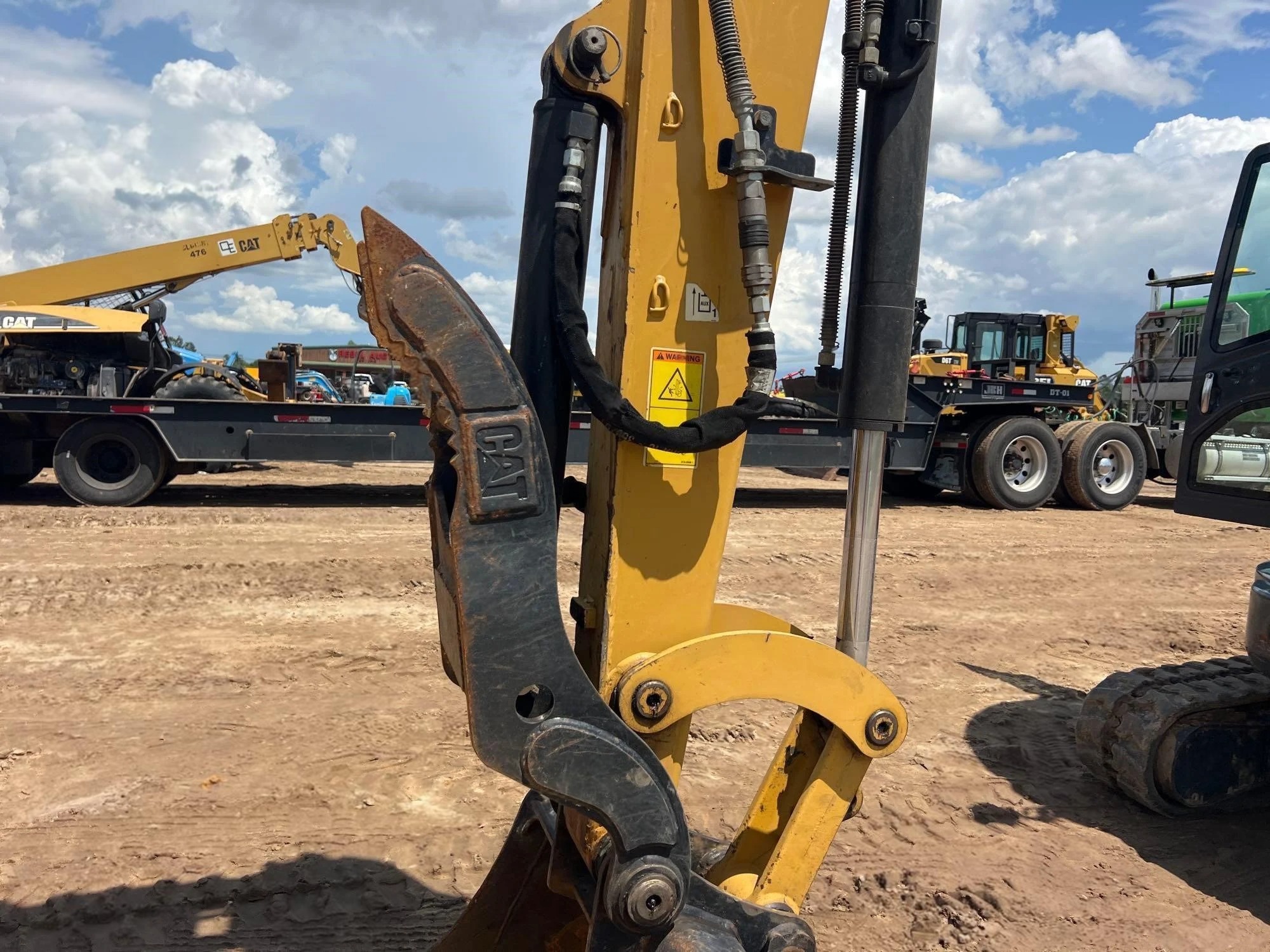

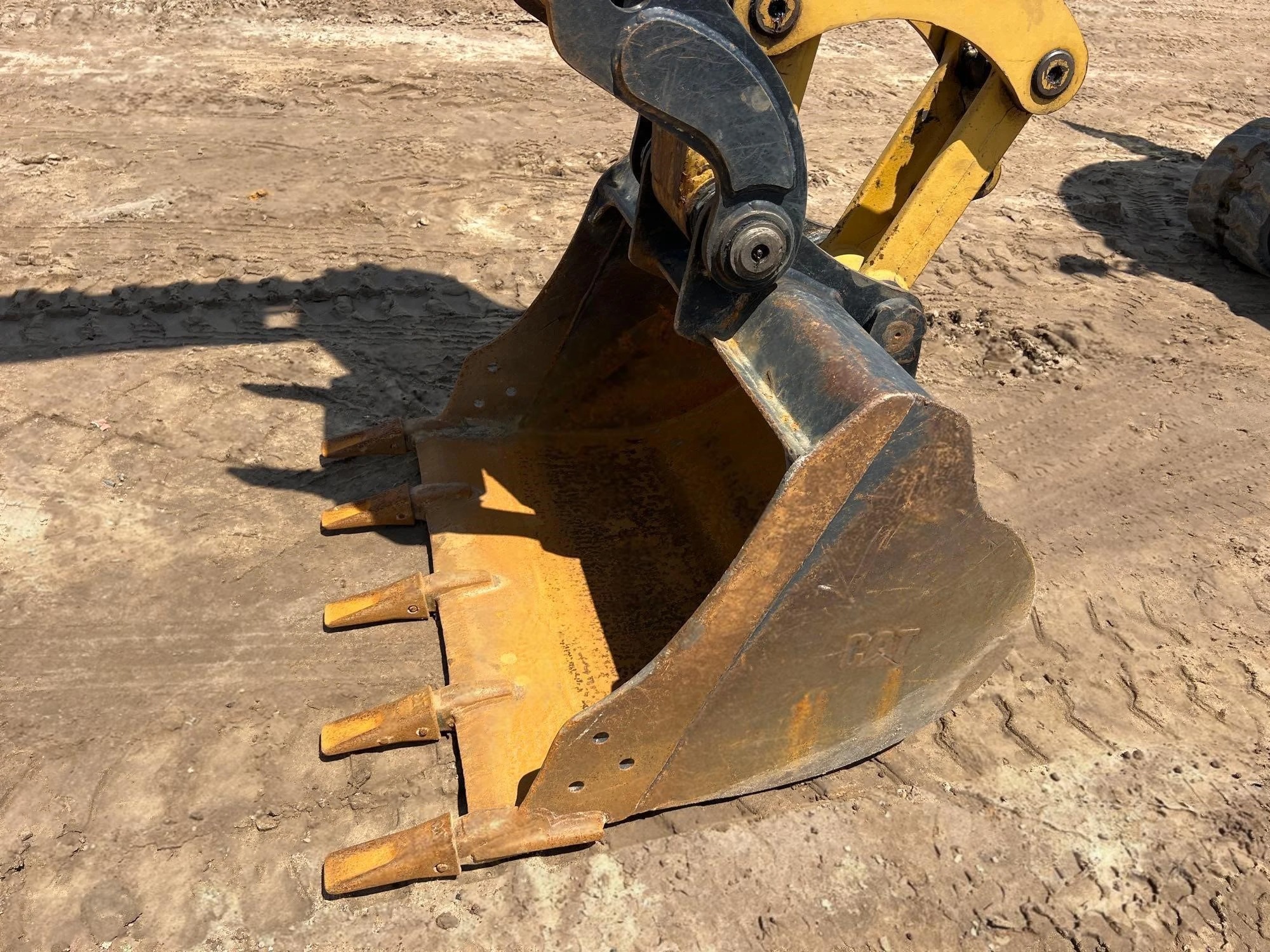

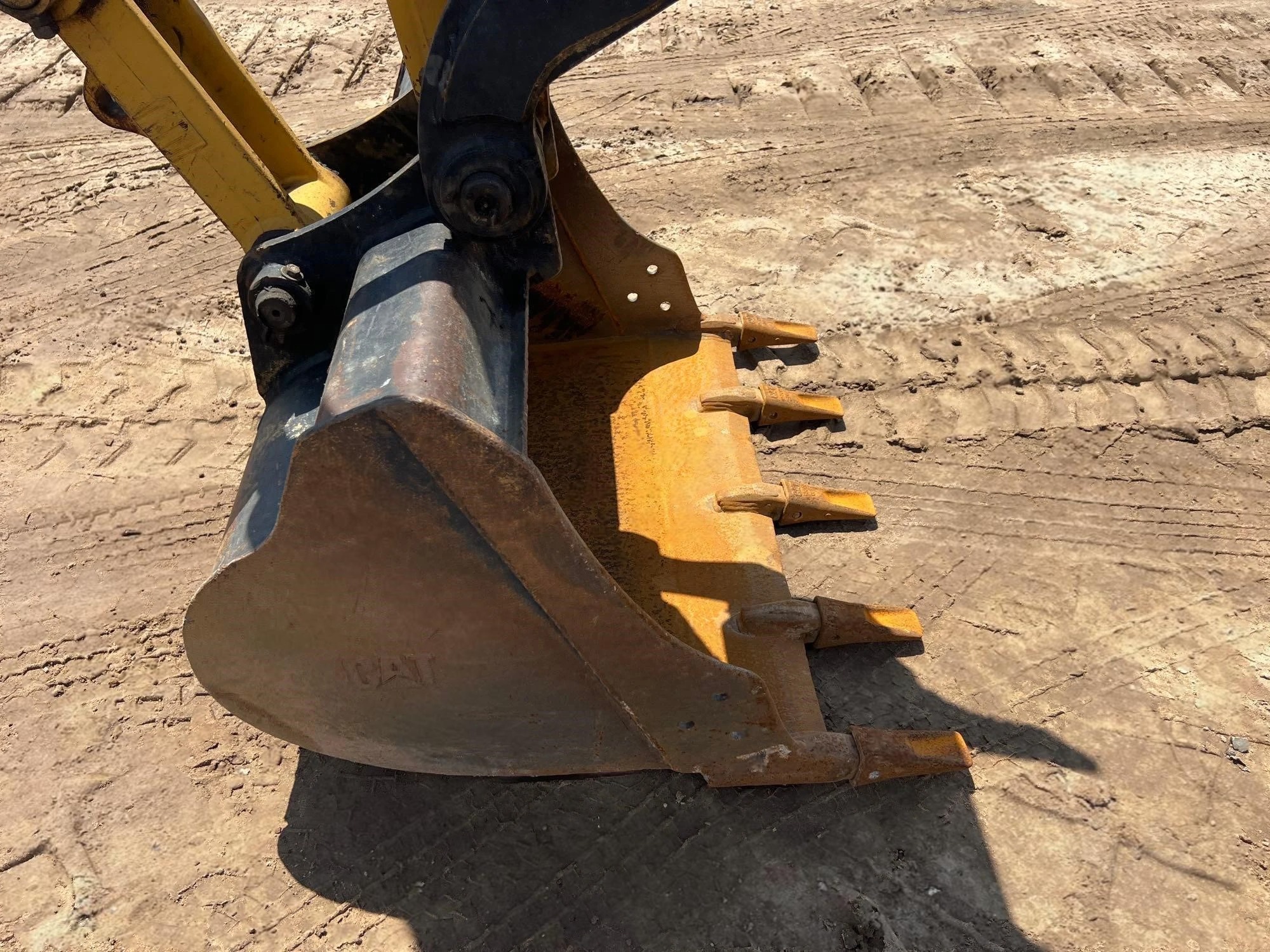

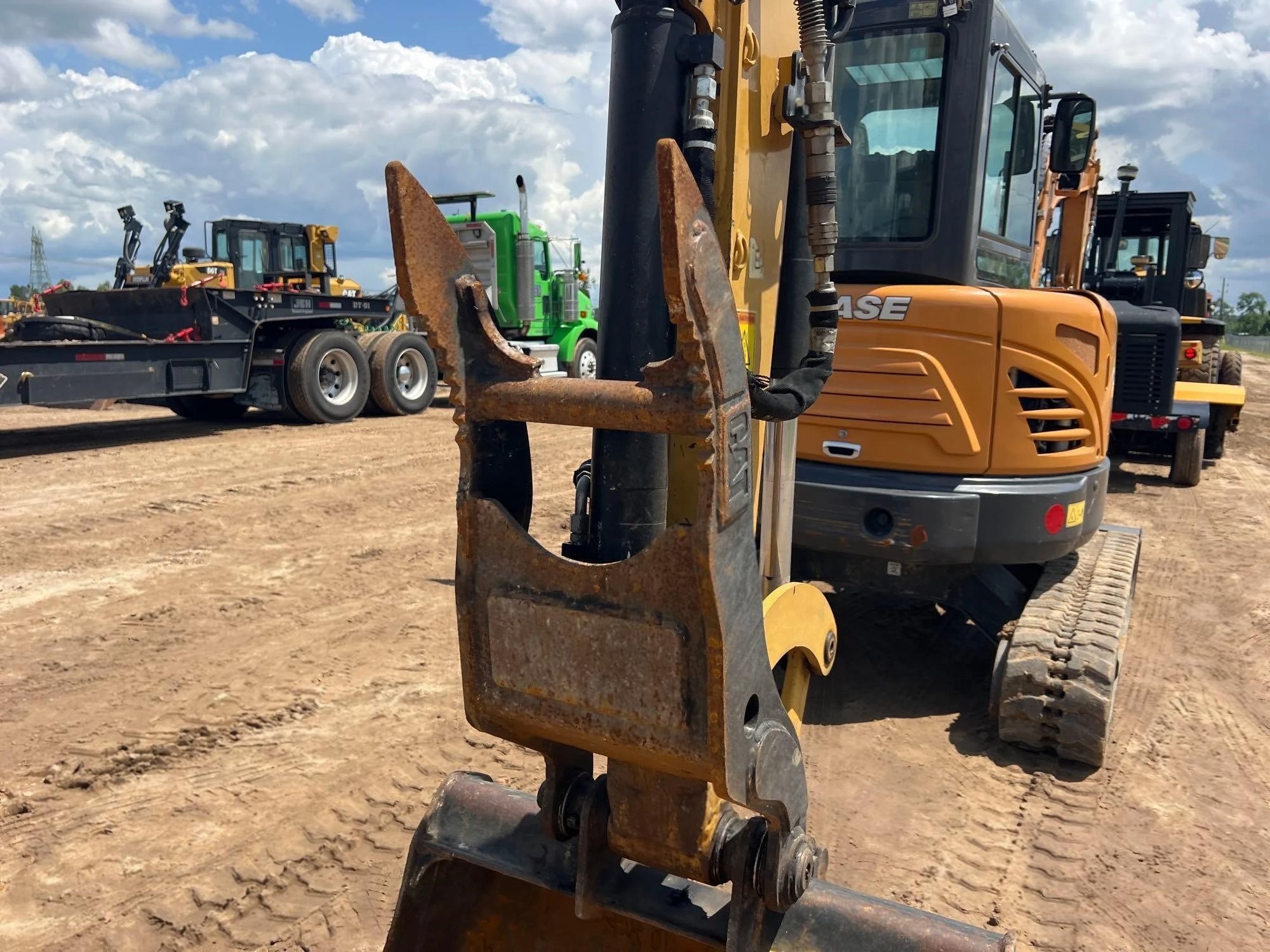

34″ Ditcher Bucket w/ Hyd Thumb

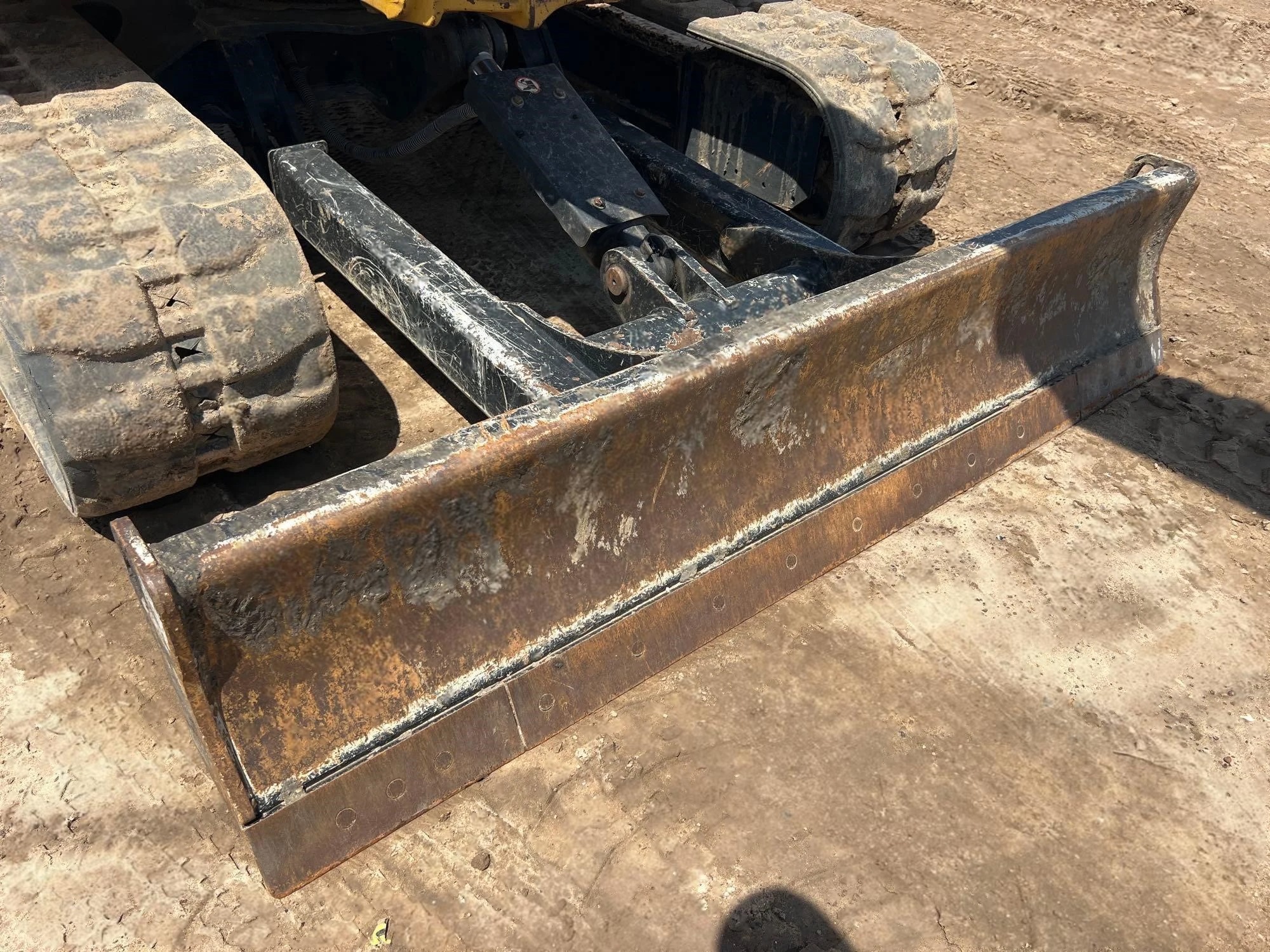

Push Blade

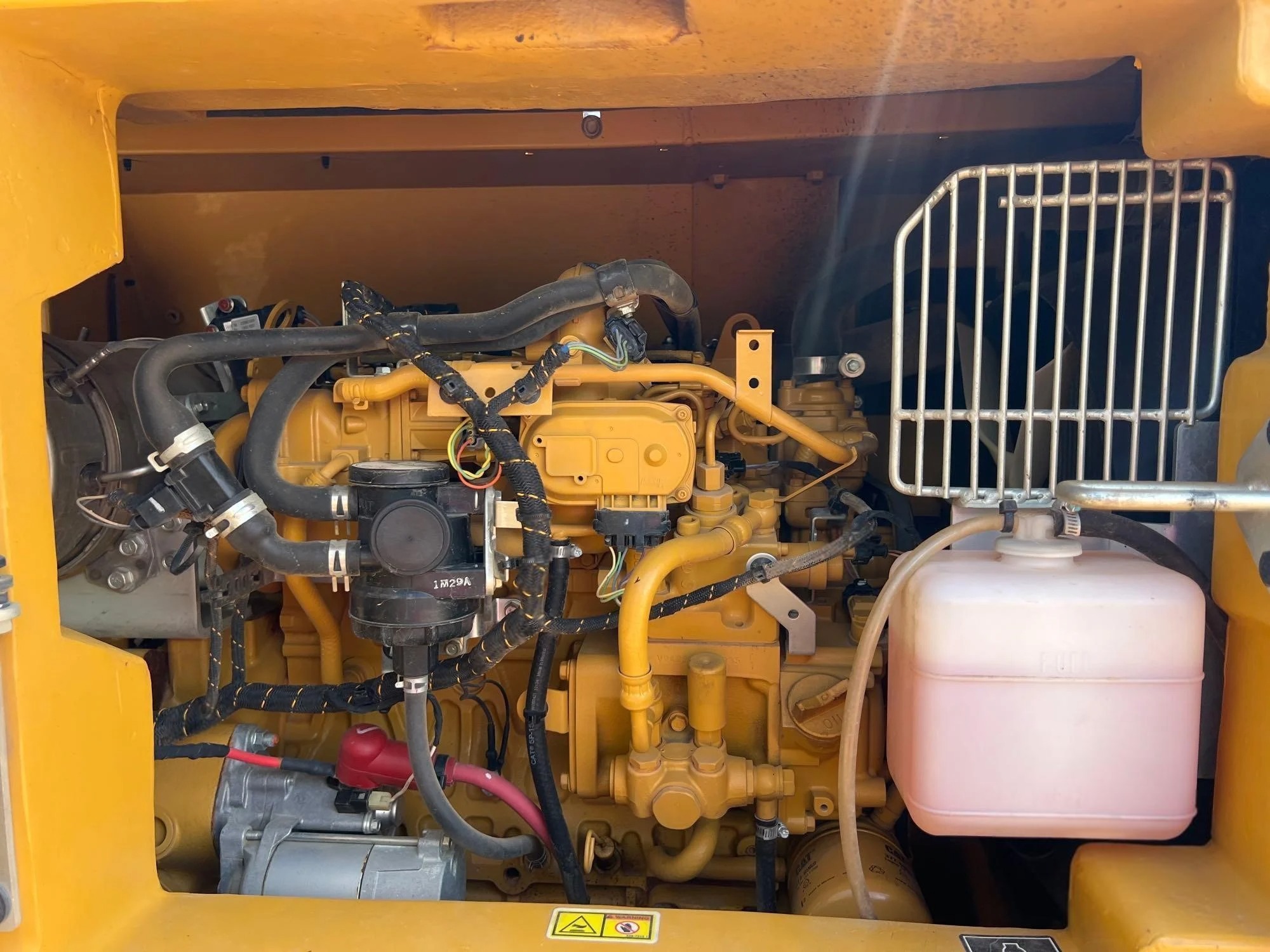

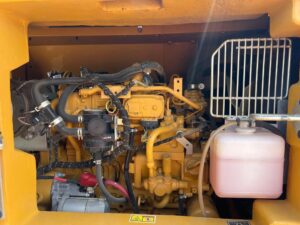

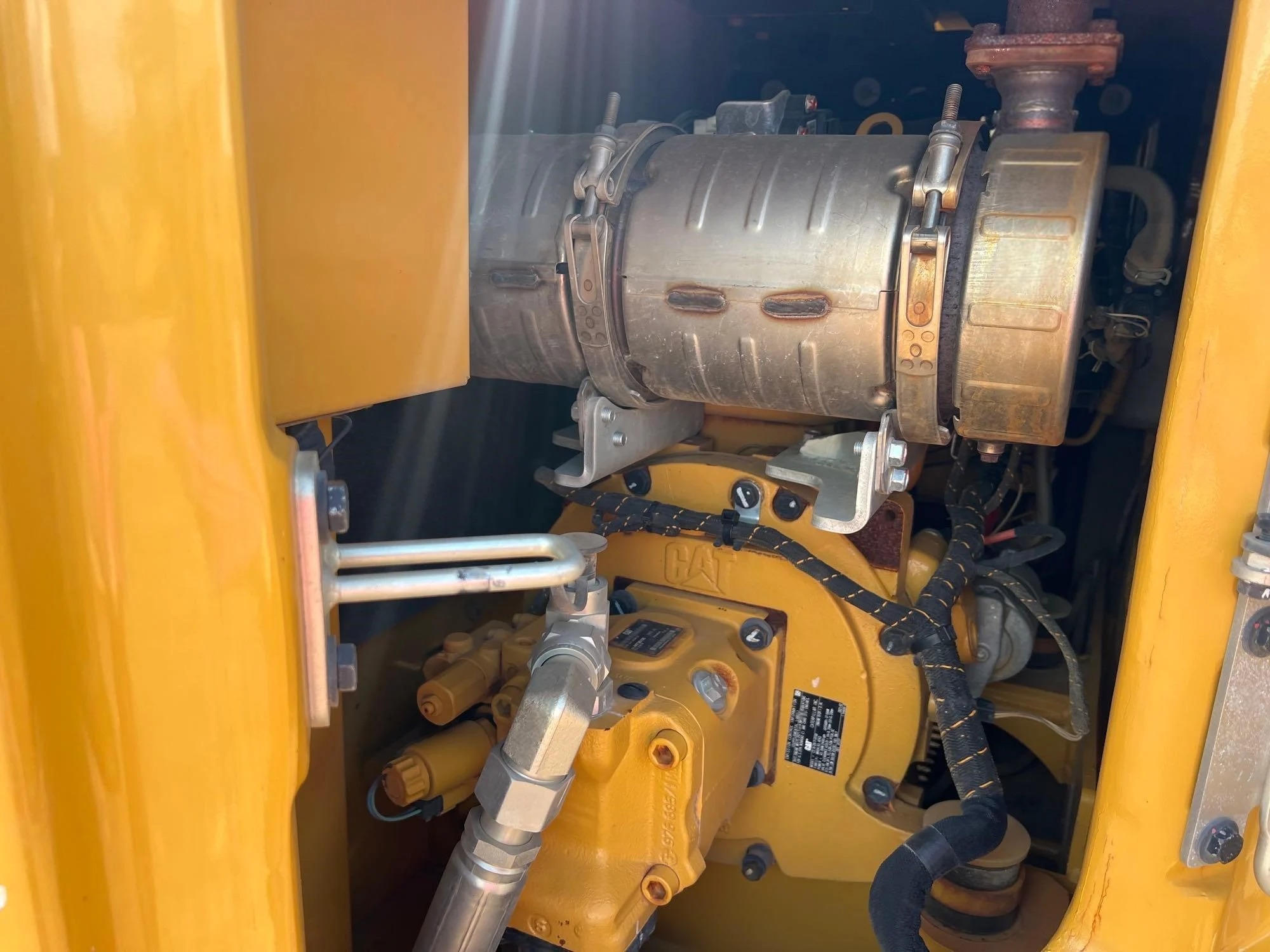

ENGINE

Net Power 55.9 hp
Gross Power – ISO 14396 57.9 hp
Displacement 148 in³
Bore 3.4 in
Stroke 4 in
Engine Model Cat C2.4 Turbo
Net Power @ 2,200 rpm – U.S. EPA Tier 4 Final 55.9 hp

TRAVEL SYSTEM

Ground Pressure – Minimum Weight 5.1 psi
Ground Pressure – Maximum Weight 5.7 psi
Gradeability – Maximum 30 degrees
Maximum Traction Force – High Speed 6969 lbf
Maximum Traction Force – Low Speed 12589 lbf
Travel Speed – High 3.1 mph
Travel Speed – Low 1.7 mph

SERVICE REFILL CAPACITIES

Cooling System 2.6 gal
Hydraulic System 27.5 gal
Hydraulic Tank 14 gal
Engine Oil 2.1 gal
Fuel Tank 34.3 gal

HYDRAULIC SYSTEM

Operating Pressure – Travel 3553 psi
Auxiliary Circuit – Primary – Flow 24 gpm
Digging Force – Bucket 11578 lbf
Auxiliary Circuit – Primary – Pressure 3553 psi
Type Load Sensing Hydraulics with Variable Displacement Piston Pump
Auxiliary Circuit – Secondary – Flow 9 gpm
Operating Pressure – Equipment 3553 psi
Auxiliary Circuit – Secondary – Pressure 3553 psi
Digging Force – Stick – Standard 6632 lbf
Operating Pressure – Swing 3263 psi
Digging Force – Stick – Long 5957 lbf
Pump Flow at 2,400 rpm 40 gpm

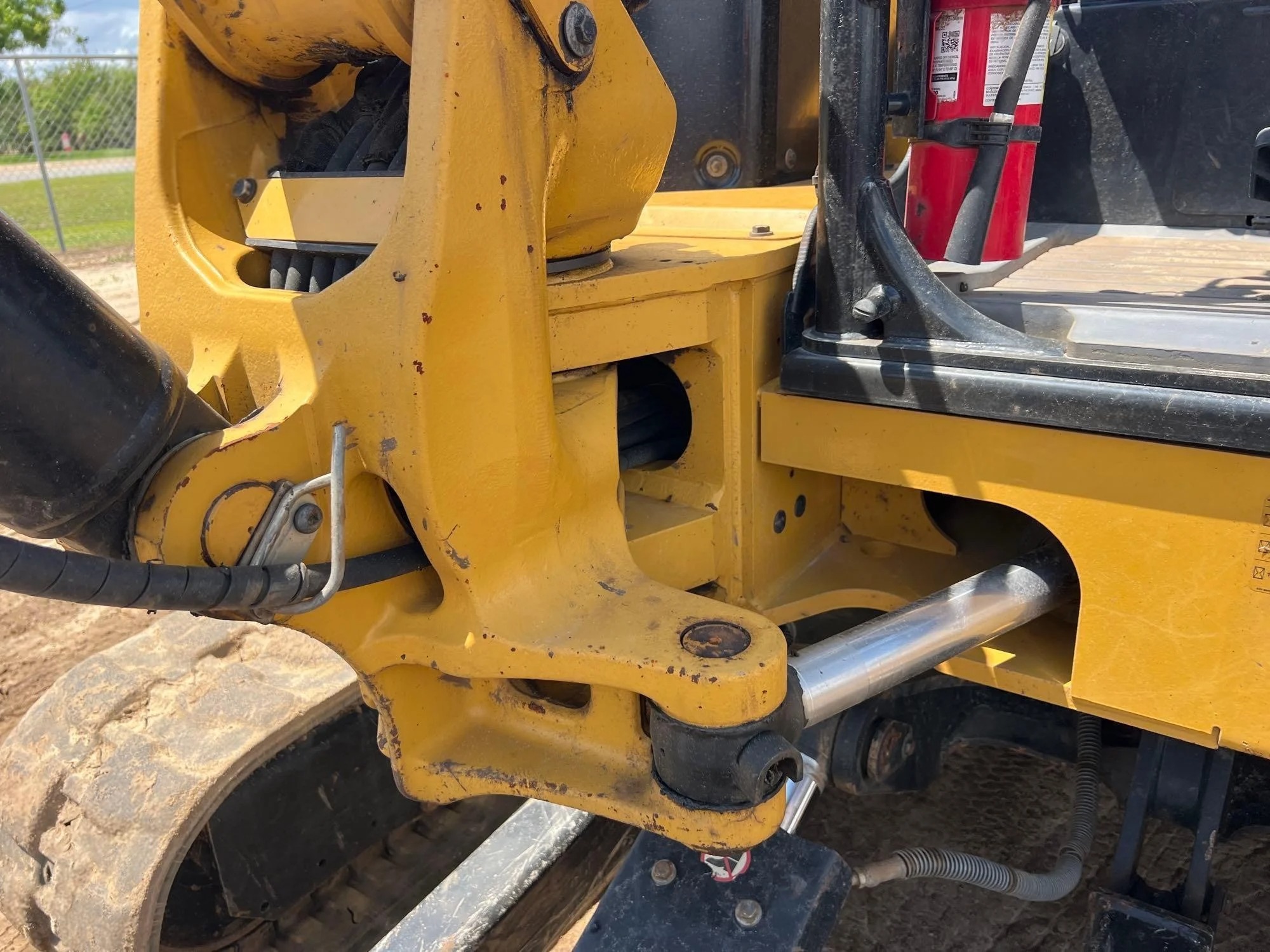

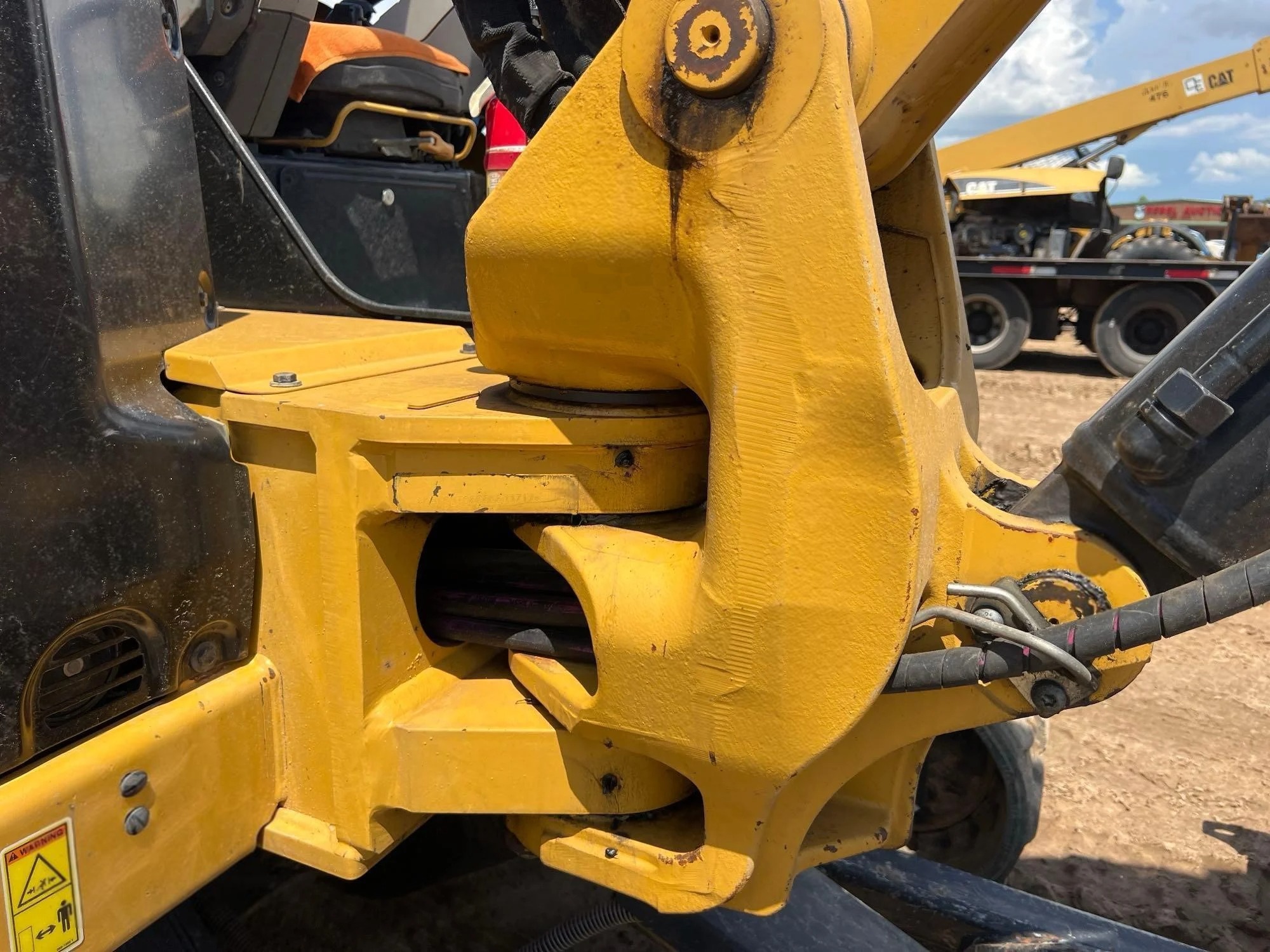

SWING SYSTEM

Boom Swing – Right 65 degrees
Boom Swing – Left 60 degrees
Machine Swing Speed 11 rpm

WEIGHTS

Operating Weight 15766 lb
